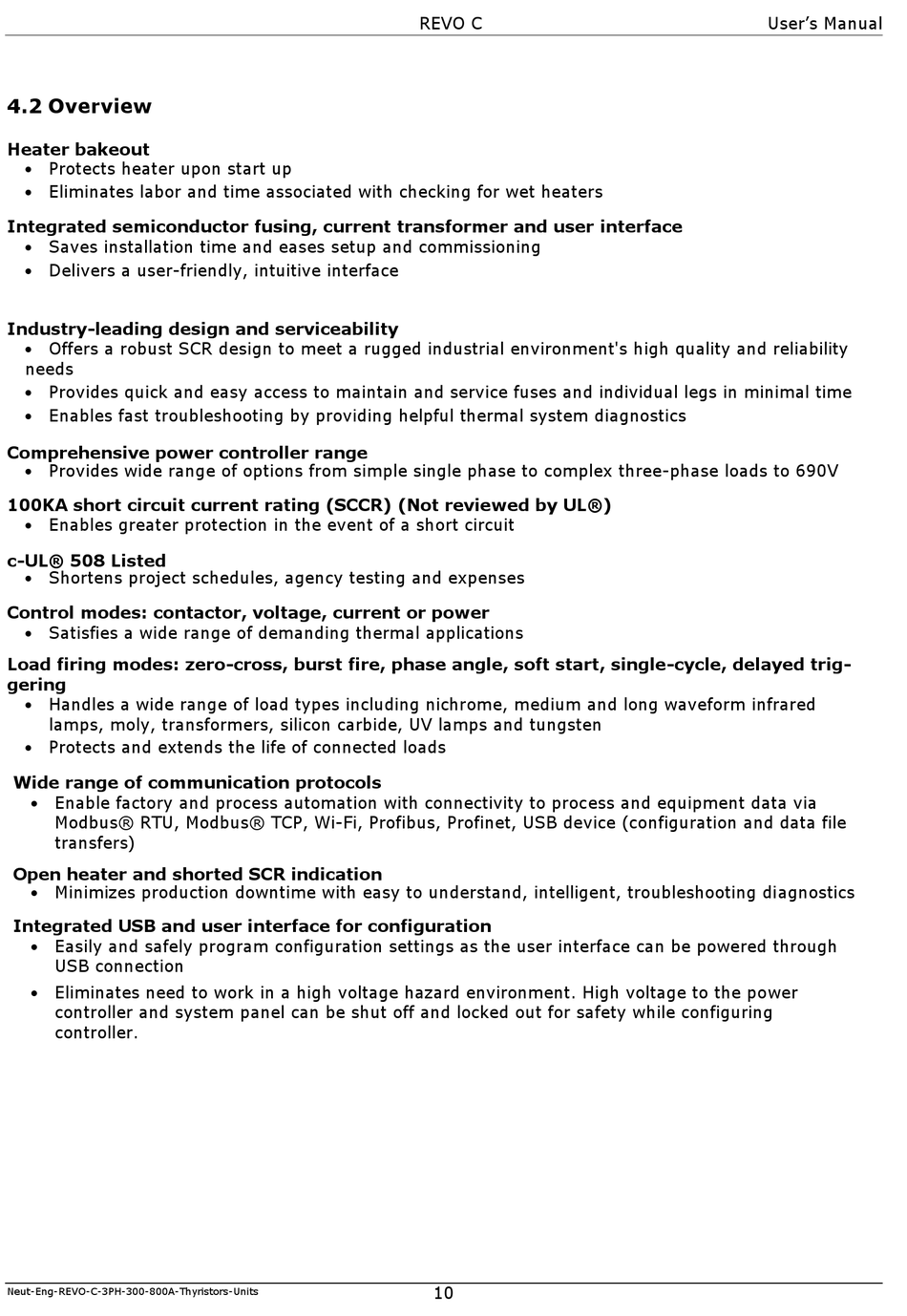

4.2 Overview

Heater bakeout
 Protects heater upon start up
 Eliminates labor and time associated with checking for wet heaters
Integrated semiconductor fusing, current transformer and user interface
 Saves installation time and eases setup and commissioning
 Delivers a user-friendly, intuitive interface
Industry-leading design and serviceability
 Offers a robust SCR design to meet a rugged industrial environment's high quality and reliability
needs
 Provides quick and easy access to maintain and service fuses and individual legs in minimal time
 Enables fast troubleshooting by providing helpful thermal system diagnostics
Comprehensive power controller range
 Provides wide range of options from simple single phase to complex three-phase loads to 690V
100KA short circuit current rating (SCCR) (Not reviewed by UL®)
 Enables greater protection in the event of a short circuit
c-UL® 508 Listed
 Shortens project schedules, agency testing and expenses
Control modes: contactor, voltage, current or power
 Satisfies a wide range of demanding thermal applications
Load firing modes: zero-cross, burst fire, phase angle, soft start, single-cycle, delayed trig-
gering
 Handles a wide range of load types including nichrome, medium and long waveform infrared
lamps, moly, transformers, silicon carbide, UV lamps and tungsten
 Protects and extends the life of connected loads
Wide range of communication protocols
 Enable factory and process automation with connectivity to process and equipment data via
Modbus® RTU, Modbus® TCP, Wi-Fi, Profibus, Profinet, USB device (configuration and data file
transfers)
Open heater and shorted SCR indication
 Minimizes production downtime with easy to understand, intelligent, troubleshooting diagnostics
Integrated USB and user interface for configuration
 Easily and safely program configuration settings as the user interface can be powered through
USB connection
 Eliminates need to work in a high voltage hazard environment. High voltage to the power
controller and system panel can be shut off and locked out for safety while configuring
controller.
