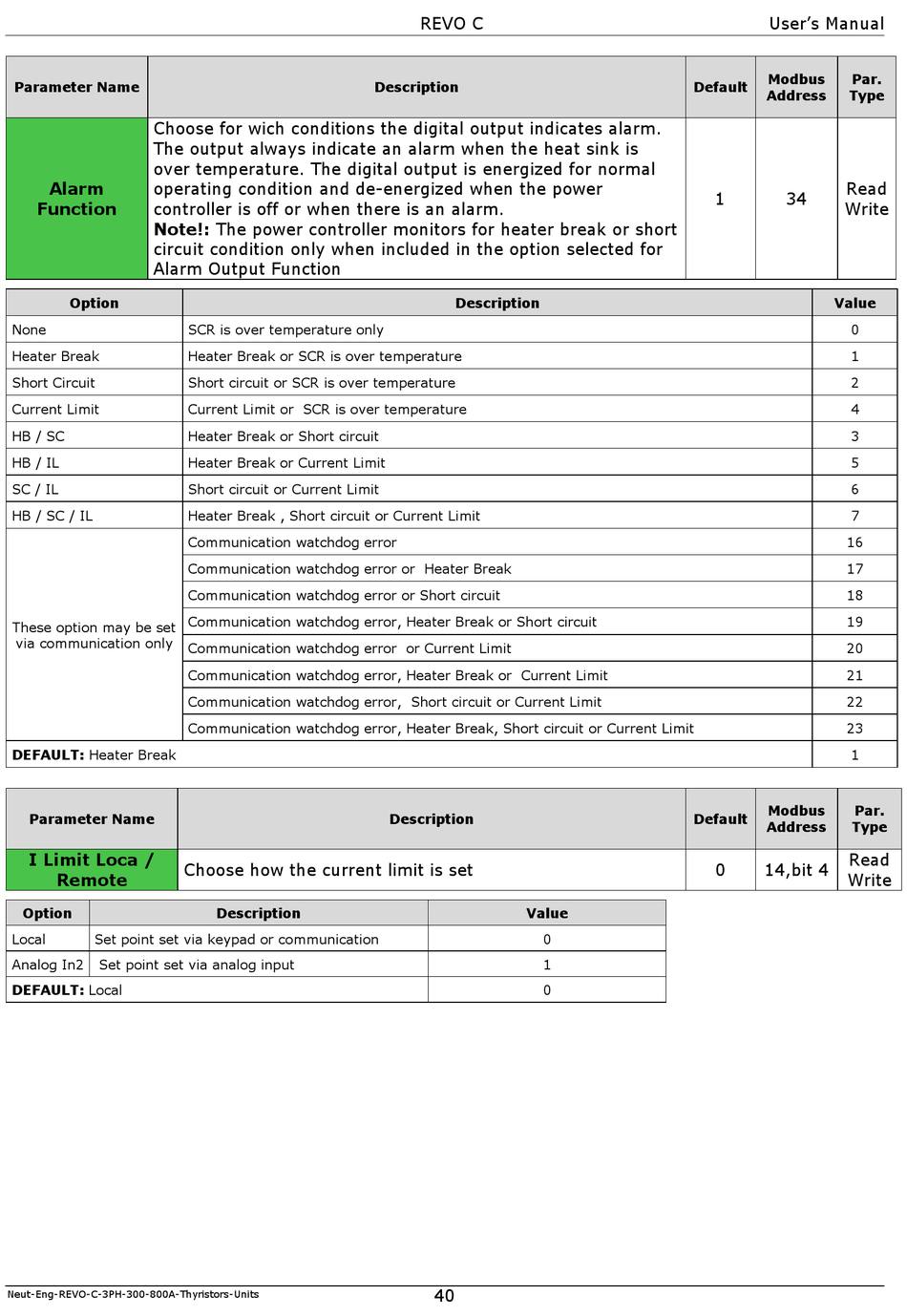

CD Automation Revo C 3PH User Manual page 40

Parameter Name
Choose for wich conditions the digital output indicates alarm.
The output always indicate an alarm when the heat sink is
over temperature. The digital output is energized for normal
Alarm operating condition and de-energized when the power

Function controller is off or when there is an alarm.
Note!: The power controller monitors for heater break or short
circuit condition only when included in the option selected for
Alarm Output Function
Option
None
Heater Break
Short Circuit
Current Limit
HB / SC
HB / IL
SC / IL
HB / SC / IL
These option may be set
via communication only
DEFAULT: Heater Break
Parameter Name
I Limit Loca /
Remote
Option
Local Set point set via keypad or communication
Analog In2 Set point set via analog input
DEFAULT: Local
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
SCR is over temperature only
Heater Break or SCR is over temperature
Short circuit or SCR is over temperature
Current Limit or SCR is over temperature
Heater Break or Short circuit
Heater Break or Current Limit
Short circuit or Current Limit
Heater Break , Short circuit or Current Limit
Communication watchdog error
Communication watchdog error or Heater Break
Communication watchdog error or Short circuit
Communication watchdog error, Heater Break or Short circuit
Communication watchdog error or Current Limit
Communication watchdog error, Heater Break or Current Limit
Communication watchdog error, Short circuit or Current Limit
Communication watchdog error, Heater Break, Short circuit or Current Limit
Choose how the current limit is set
Description
REVO C
Description
Description
Description
Value
0
1
0
40
User's Manual
Modbus Par.
Default
Address Type
Read
1 34
Write
Value
0
1
2
4
3
5
6
7
16
17
18
19
20
21
22
23
1
Modbus Par.
Default
Address Type
Read
0 14,bit 4
Write
