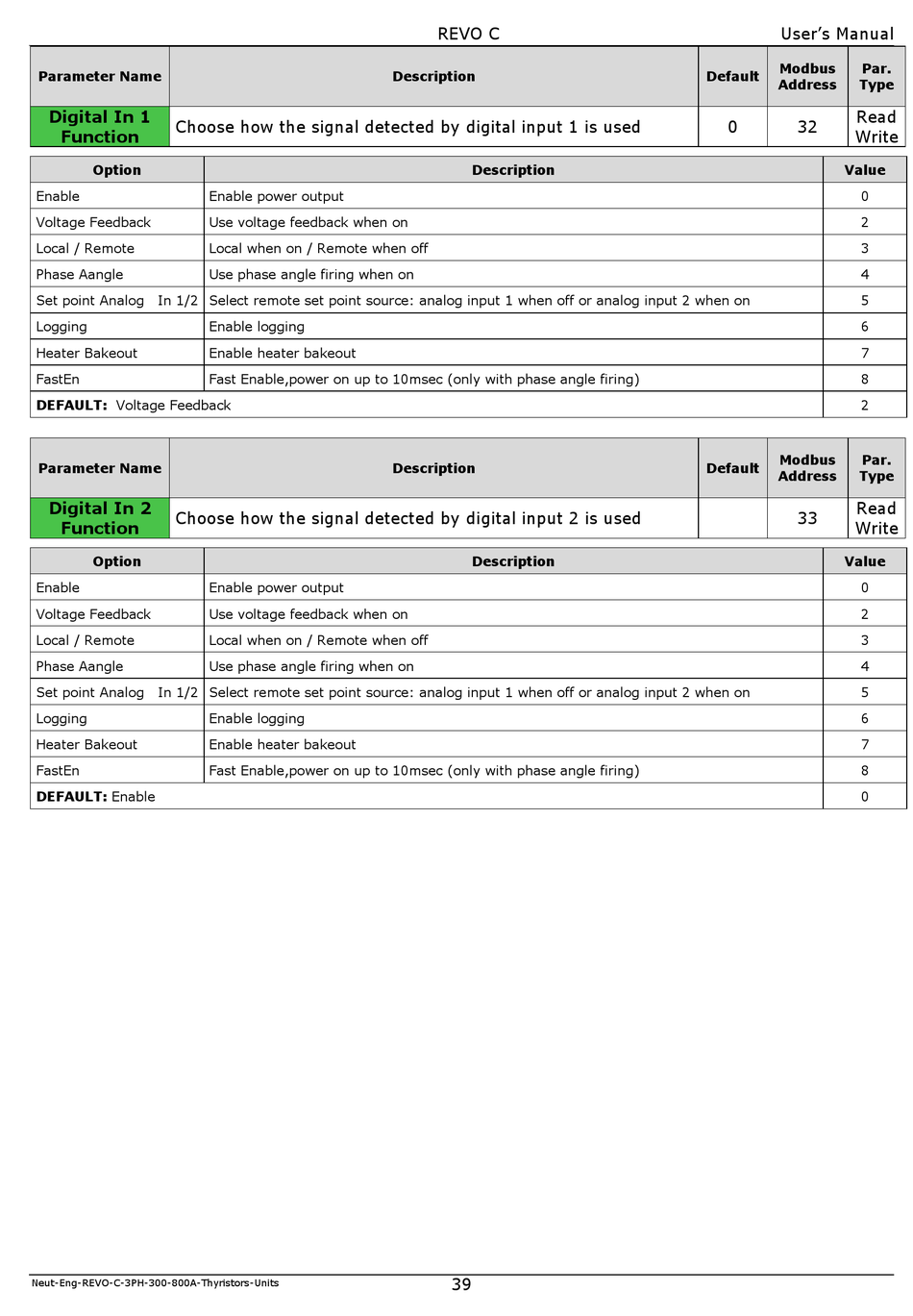

CD Automation Revo C 3PH User Manual page 39

Parameter Name
Digital In 1
Choose how the signal detected by digital input 1 is used

Function
Option
Enable
Voltage Feedback
Local / Remote
Phase Aangle
Set point Analog In 1/2 Select remote set point source: analog input 1 when off or analog input 2 when on
Logging
Heater Bakeout
FastEn
DEFAULT: Voltage Feedback
Parameter Name
Digital In 2
Choose how the signal detected by digital input 2 is used

Function
Option
Enable
Voltage Feedback
Local / Remote
Phase Aangle
Set point Analog In 1/2 Select remote set point source: analog input 1 when off or analog input 2 when on
Logging
Heater Bakeout
FastEn
DEFAULT: Enable
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
Enable power output
Use voltage feedback when on
Local when on / Remote when off
Use phase angle firing when on
Enable logging
Enable heater bakeout
Fast Enable,power on up to 10msec (only with phase angle firing)
Enable power output
Use voltage feedback when on
Local when on / Remote when off
Use phase angle firing when on
Enable logging
Enable heater bakeout
Fast Enable,power on up to 10msec (only with phase angle firing)
REVO C
Description
Description
Description
Description
39
User's Manual
Modbus Par.
Default
Address Type
Read
0 32
Write
Value
0
2
3
4
5
6
7
8
2
Modbus Par.
Default
Address Type
Read
33
Write
Value
0
2
3
4
5
6
7
8
0
