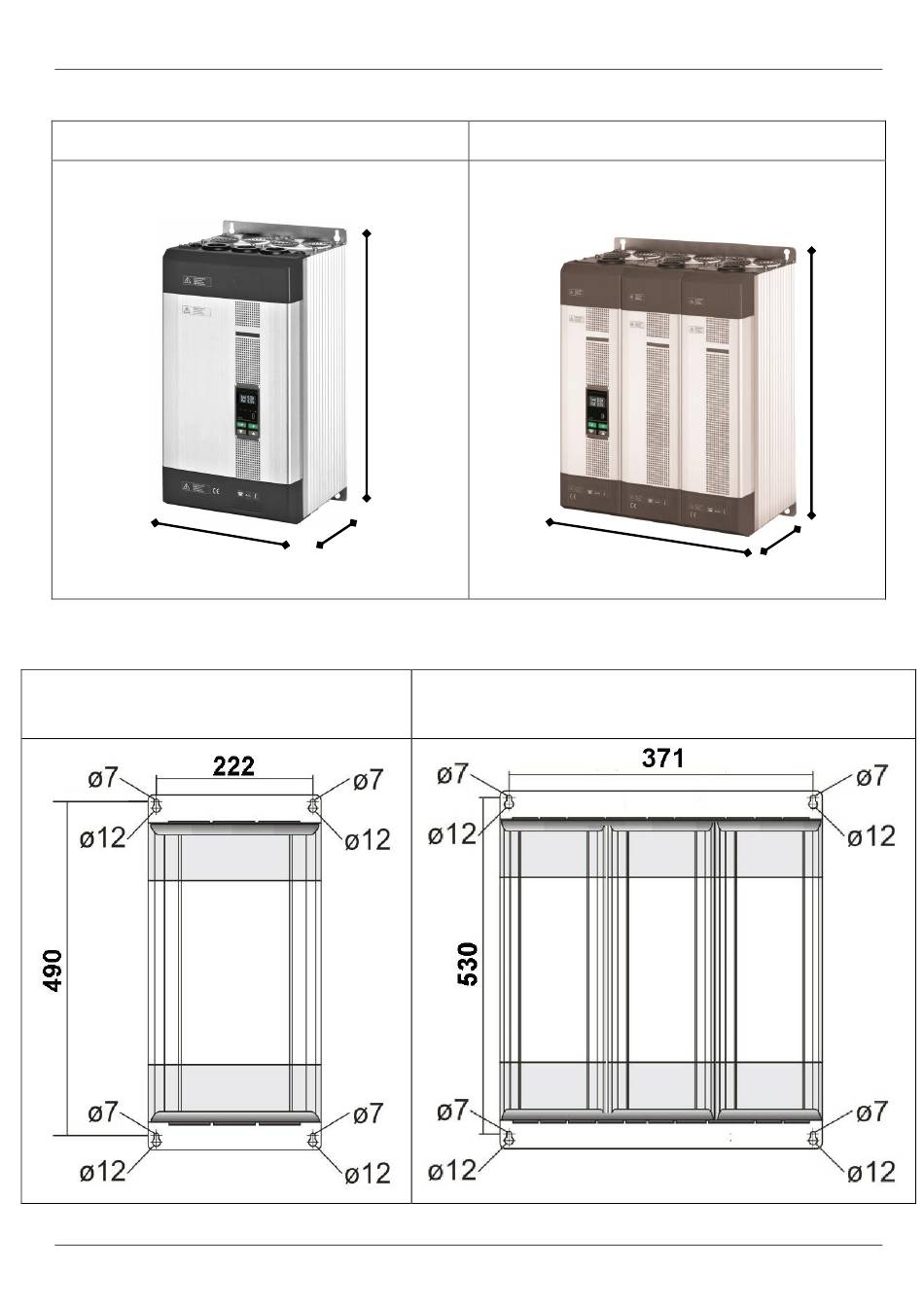

10.1 Dimensions and Weight
REVO-C 3PH
300A÷500A (S14)
W 262mm - H 520mm - D 270mm
Weight 22,5Kg
W
10.2 Fixing holes
REVO-M 3PH
300A÷500A (S14)
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
REVO C
W 411mm - H 560mm - D 270mm
H
D
19
REVO-C 3PH
600A÷800A (S17)
Weight 31,5Kg
W
REVO-M 3PH
600A÷700A (S17)
User's Manual
H
D
