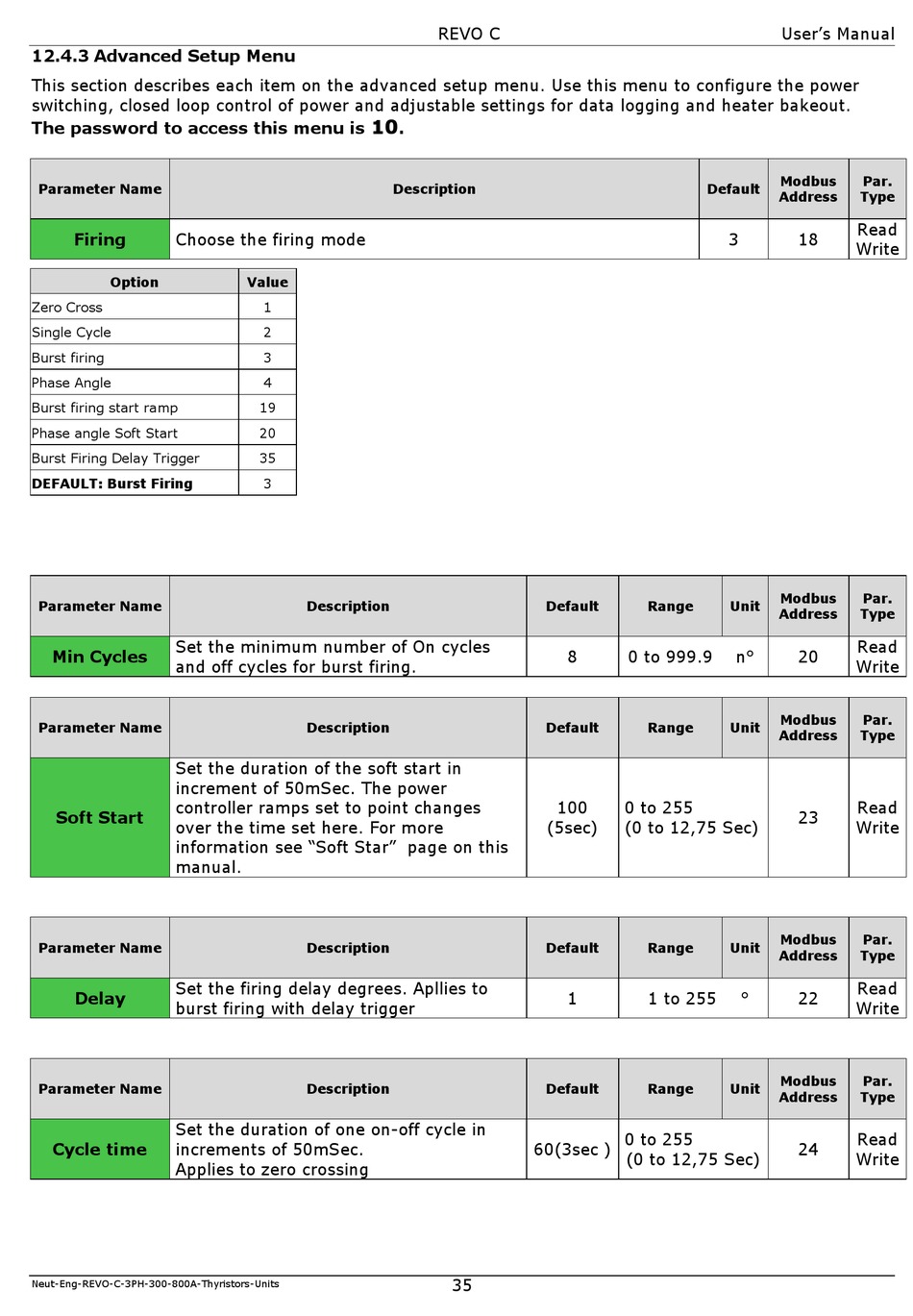

12.4.3 Advanced Setup Menu

This section describes each item on the advanced setup menu. Use this menu to configure the power
switching, closed loop control of power and adjustable settings for data logging and heater bakeout.
The password to access this menu is
Parameter Name

Firing Choose the firing mode
Option
Zero Cross
Single Cycle
Burst firing
Phase Angle
Burst firing start ramp
Phase angle Soft Start
Burst Firing Delay Trigger
DEFAULT: Burst Firing
Parameter Name
Set the minimum number of On cycles

Min Cycles
and off cycles for burst firing.
Parameter Name
Set the duration of the soft start in
increment of 50mSec. The power
controller ramps set to point changes

Soft Start
over the time set here. For more
information see "Soft Star" page on this
manual.
Parameter Name
Set the firing delay degrees. Apllies to

Delay
burst firing with delay trigger
Parameter Name
Set the duration of one on-off cycle in

Cycle time increments of 50mSec.
Applies to zero crossing
