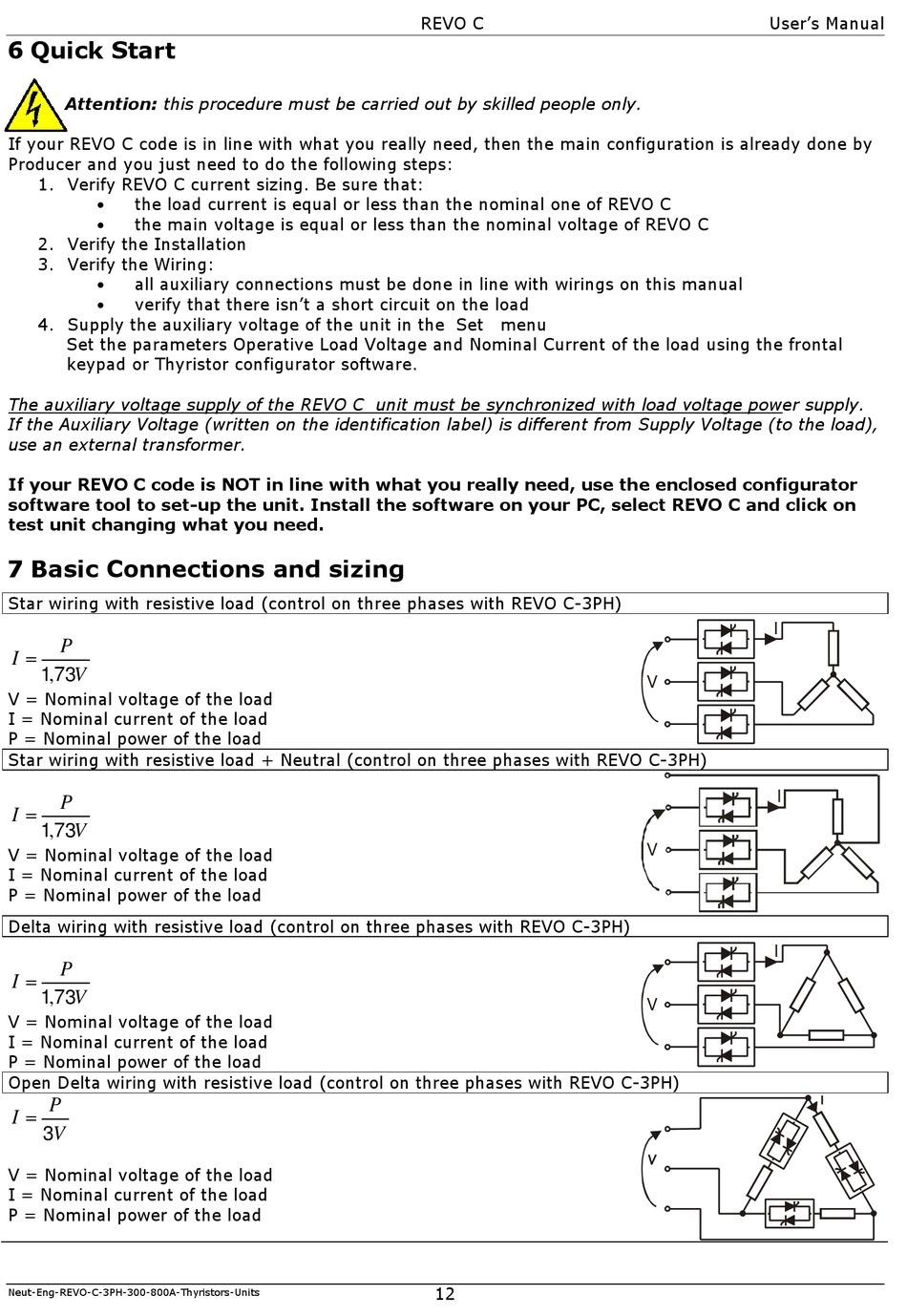

6 Quick Start

Attention: this procedure must be carried out by skilled people only.
If your REVO C code is in line with what you really need, then the main configuration is already done by
Producer and you just need to do the following steps:
1. Verify REVO C current sizing. Be sure that:
 the load current is equal or less than the nominal one of REVO C
 the main voltage is equal or less than the nominal voltage of REVO C
2. Verify the Installation
3. Verify the Wiring:
 all auxiliary connections must be done in line with wirings on this manual
 verify that there isn't a short circuit on the load
4. Supply the auxiliary voltage of the unit in the Set menu
Set the parameters Operative Load Voltage and Nominal Current of the load using the frontal
keypad or Thyristor configurator software.
The auxiliary voltage supply of the REVO C unit must be synchronized with load voltage power supply.
If the Auxiliary Voltage (written on the identification label) is different from Supply Voltage (to the load),
use an external transformer.
If your REVO C code is NOT in line with what you really need, use the enclosed configurator
software tool to set-up the unit. Install the software on your PC, select REVO C and click on
test unit changing what you need.
7 Basic Connections and sizing
Star wiring with resistive load (control on three phases with REVO C-3PH)
P

I
1, 73 V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Star wiring with resistive load + Neutral (control on three phases with REVO C-3PH)
P

I
1, 73
V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Delta wiring with resistive load (control on three phases with REVO C-3PH)
P

I
1, 73
V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Open Delta wiring with resistive load (control on three phases with REVO C-3PH)
P

I
3 V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
REVO C
12
User's Manual
I
V
I
V
I
V
