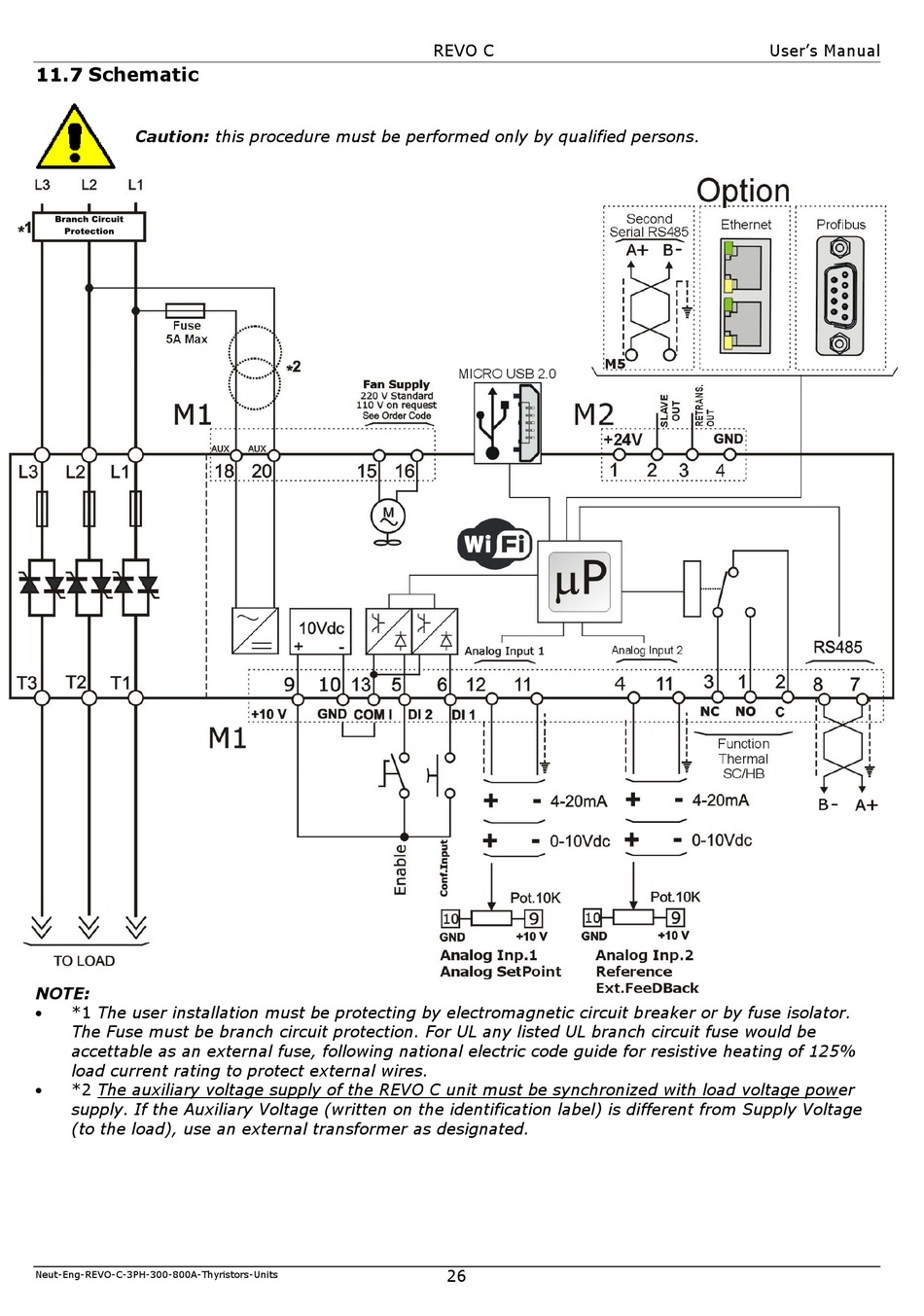

11.7 Schematic

Caution: this procedure must be performed only by qualified persons.
NOTE:
 *1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection. For UL any listed UL branch circuit fuse would be
accettable as an external fuse, following national electric code guide for resistive heating of 125%
load current rating to protect external wires.
 *2 The auxiliary voltage supply of the REVO C unit must be synchronized with load voltage power
supply. If the Auxiliary Voltage (written on the identification label) is different from Supply Voltage
(to the load), use an external transformer as designated.
