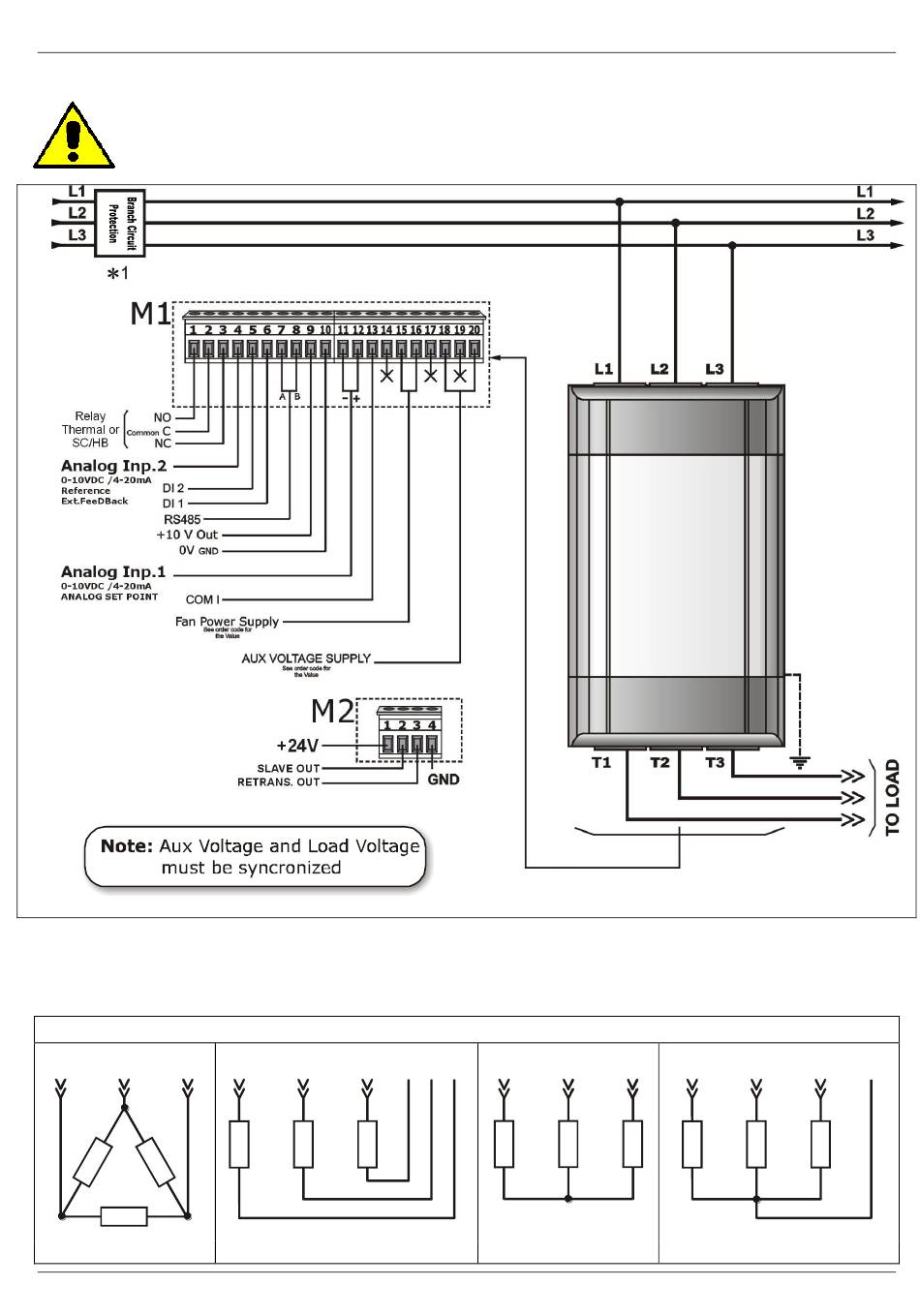

11.8 Connection Diagram for 3 phases
Caution: this procedure must be performed only by qualified persons.
X = not connected
*1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection. For UL any listed UL branch circuit fuse would be accettable
as an external fuse, following national electric code guide for resistive heating of 125% load current
rating to protect external wires.
Load Type
T1
T2
T3
T1
T2
T3
L1 L3 L2
T1
T2
T3
T1
T2
T3
N
Delta
Open Delta
Star
Star + Neutral
27
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
