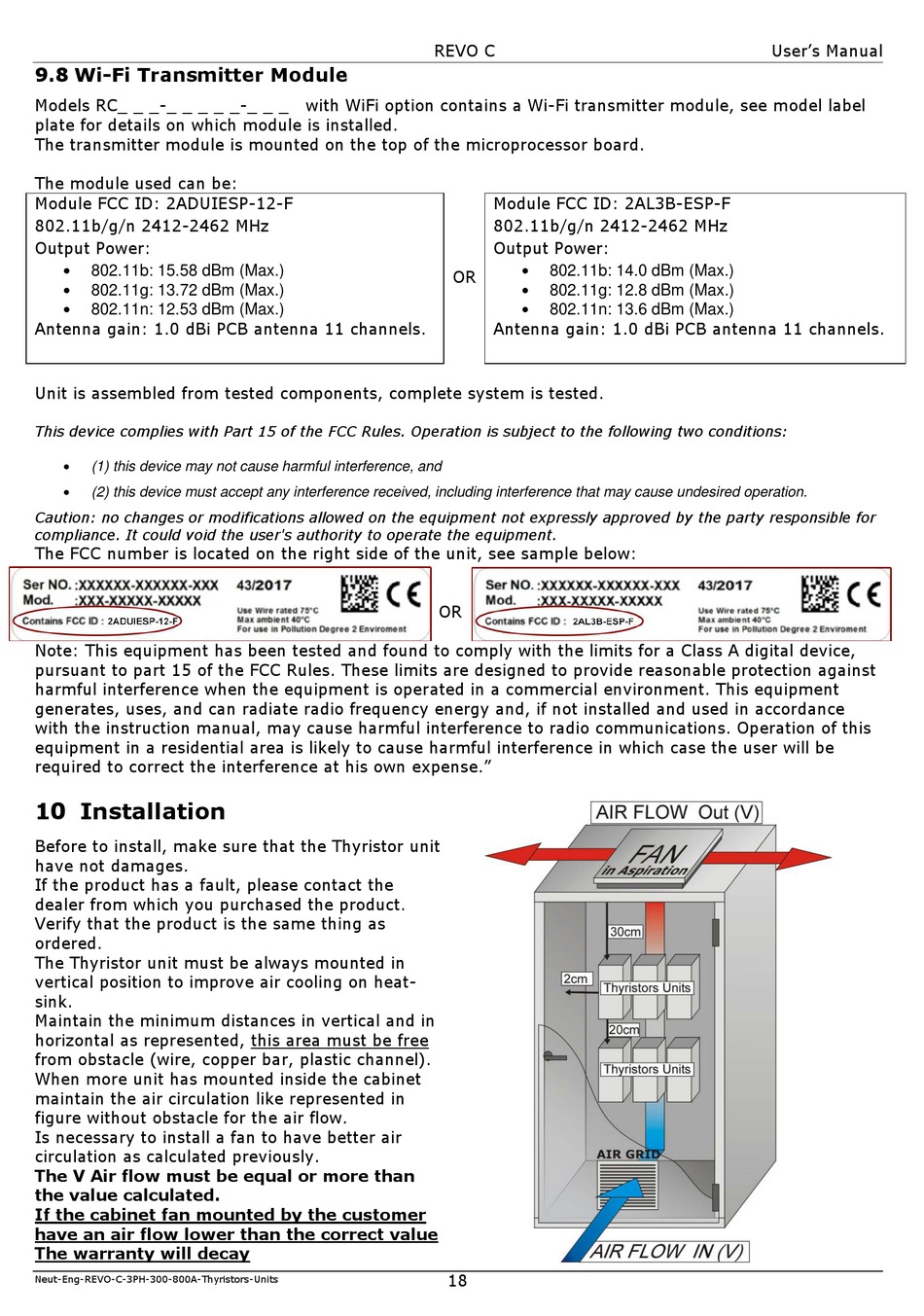

9.8 Wi-Fi Transmitter Module

Models RC_ _ _-_ _ _ _ _-_ _ _
plate for details on which module is installed.
The transmitter module is mounted on the top of the microprocessor board.
The module used can be:
Module FCC ID: 2ADUIESP-12-F
802.11b/g/n 2412-2462 MHz
Output Power:

802.11b: 15.58 dBm (Max.)

802.11g: 13.72 dBm (Max.)

802.11n: 12.53 dBm (Max.)
Antenna gain: 1.0 dBi PCB antenna 11 channels.
Unit is assembled from tested components, complete system is tested.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: no changes or modifications allowed on the equipment not expressly approved by the party responsible for
compliance. It could void the user's authority to operate the equipment.
The FCC number is located on the right side of the unit, see sample below:
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense."
10 Installation
Before to install, make sure that the Thyristor unit
have not damages.
If the product has a fault, please contact the
dealer from which you purchased the product.
Verify that the product is the same thing as
ordered.
The Thyristor unit must be always mounted in
vertical position to improve air cooling on heat-
sink.
Maintain the minimum distances in vertical and in
horizontal as represented, this area must be free
from obstacle (wire, copper bar, plastic channel).
When more unit has mounted inside the cabinet
maintain the air circulation like represented in
figure without obstacle for the air flow.
Is necessary to install a fan to have better air
circulation as calculated previously.
The V Air flow must be equal or more than
the value calculated.
If the cabinet fan mounted by the customer
have an air flow lower than the correct value
The warranty will decay
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
REVO C
with WiFi option contains a Wi-Fi transmitter module, see model label
OR
OR
18
Module FCC ID: 2AL3B-ESP-F
802.11b/g/n 2412-2462 MHz
Output Power:

802.11b: 14.0 dBm (Max.)

802.11g: 12.8 dBm (Max.)

802.11n: 13.6 dBm (Max.)
Antenna gain: 1.0 dBi PCB antenna 11 channels.
