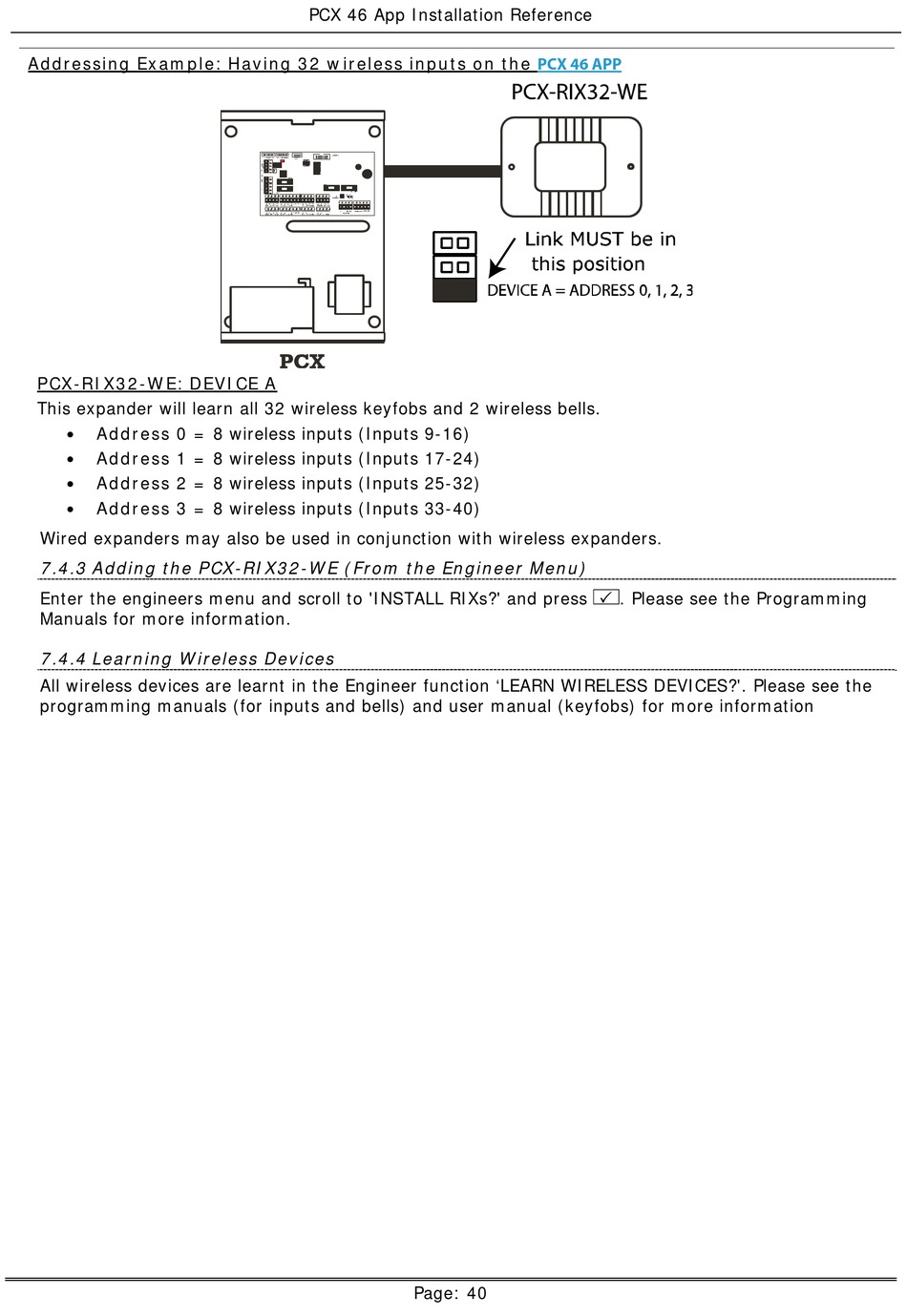

Addressing Example: Having 32 wireless inputs on the
PCX-RIX32-WE: DEVICE A
This expander will learn all 32 wireless keyfobs and 2 wireless bells.
Address 0 = 8 wireless inputs (Inputs 9-16)
Address 1 = 8 wireless inputs (Inputs 17-24)
Address 2 = 8 wireless inputs (Inputs 25-32)
Address 3 = 8 wireless inputs (Inputs 33-40)
Wired expanders may also be used in conjunction with wireless expanders.
7.4.3 Adding the PCX-RIX32-WE (From the Engineer Menu)
Enter the engineers menu and scroll to 'INSTALL RIXs?' and press t. Please see the Programming
Manuals for more information.
7.4.4 Learning Wireless Devices
All wireless devices are learnt in the Engineer function 'LEARN WIRELESS DEVICES?'. Please see the
programming manuals (for inputs and bells) and user manual (keyfobs) for more information
PCX 46 App Installation Reference
Page: 40
