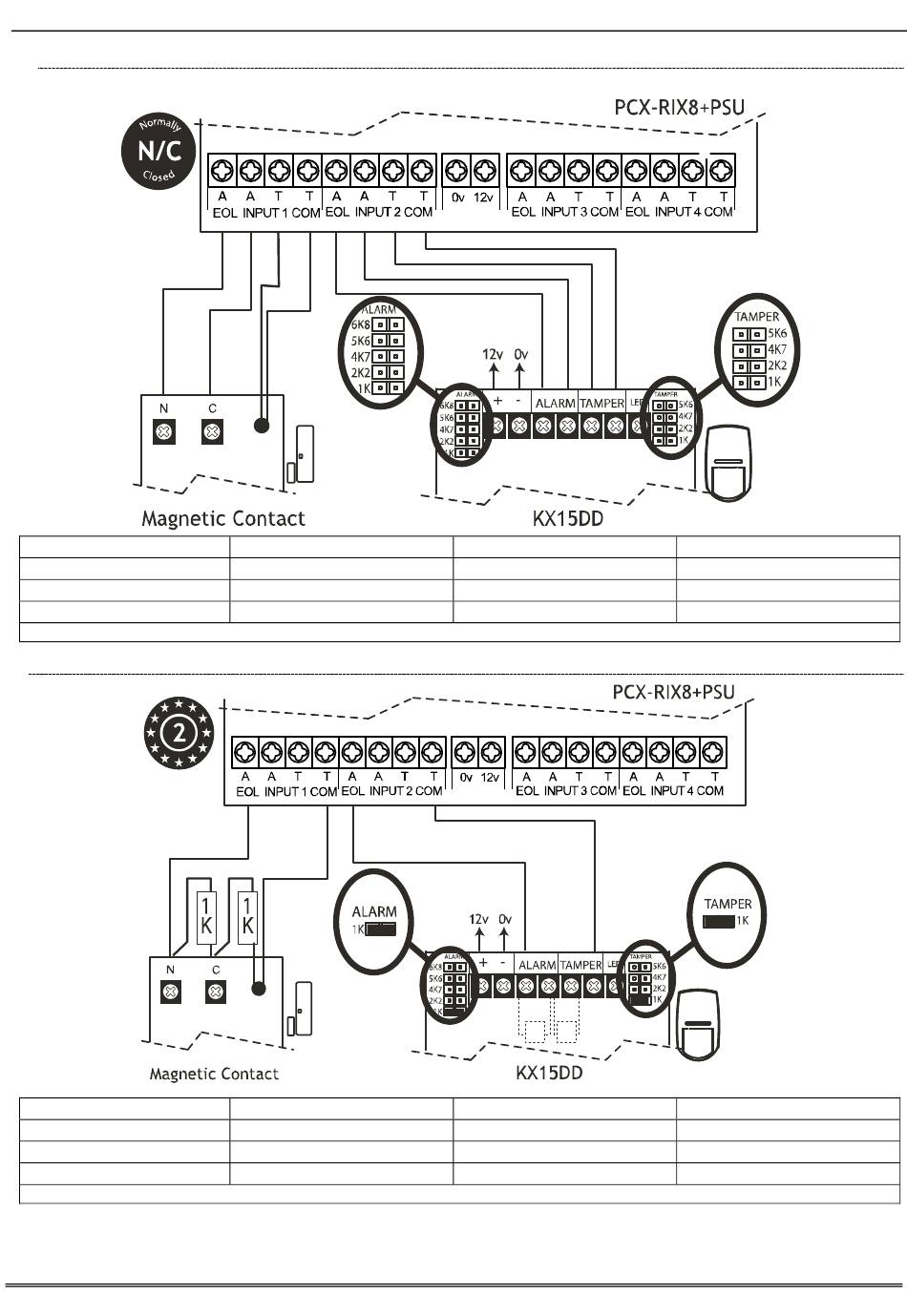

7.3.5 Wiring Inputs on the PCX-RIX8+PSU (Normally Closed)
Input Resistance
Normal
Burglary Alarm
Tamper
All inputs are programmed in "PROGRAM INPUTS" in the Engineer menu.
7.3.6 Wiring Inputs on the PCX-RIX8+PSU (DEOL: Grade 2)
Input Resistance
Normal
Burglary Alarm
Tamper
All inputs are programmed in "PROGRAM INPUTS" in the Engineer menu.
PCX 46 App Installation Reference
1k / 1k DEOL Range
0k5 to 1k4
1k5 to 5k9
<0k5 or >17K
1k / 1k DEOL Range
0k5 to 1k4
1k5 to 5k9
<0k5 or >17K
4k7 / 2k2 DEOL Range
1k4 to 2k9
4k2 to 7k8
<1k4 or >22k
4k7 / 2k2 DEOL Range
1k4 to 2k9
4k2 to 7k8
<1k4 or >22k
Page: 37
4k7 / 4k7 DEOL Range
3k7 to 8k3
8k4 to 10k2
<3k7 or >23k
4k7 / 4k7 DEOL Range
3k7 to 8k3
8k4 to 10k2
<3k7 or >23k
