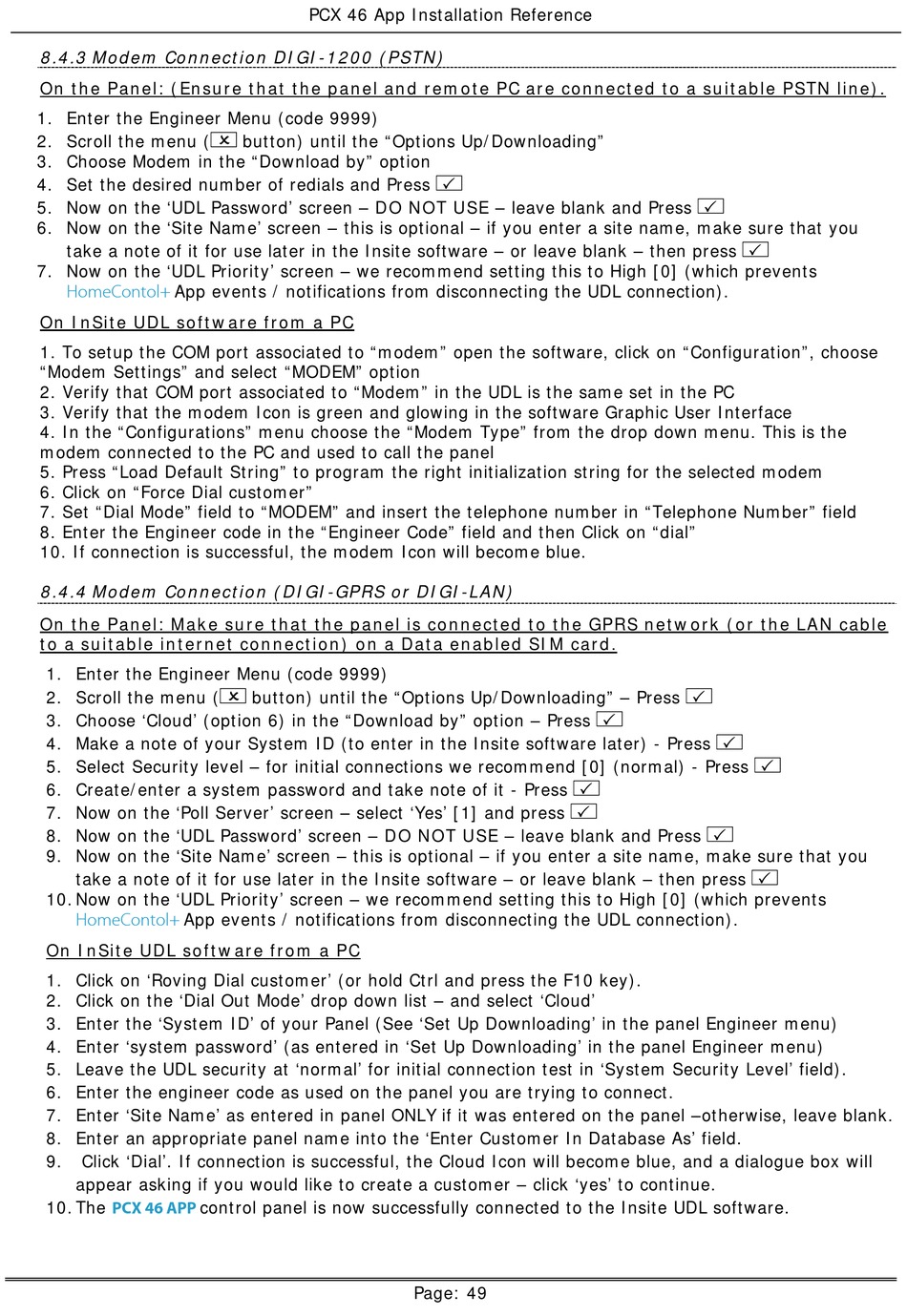

Pyronix PCX 46 APP Installation & Reference Manual page 49

8.4.3 Modem Connection DIGI-1200 (PSTN)
On the Panel: (Ensure that the panel and remote PC are connected to a suitable PSTN line).
1. Enter the Engineer Menu (code 9999)
2. Scroll the menu (x button) until the "Options Up/Downloading"
3. Choose Modem in the "Download by" option
4. Set the desired number of redials and Press t
5. Now on the 'UDL Password' screen – DO NOT USE – leave blank and Press t
6. Now on the 'Site Name' screen – this is optional – if you enter a site name, make sure that you
take a note of it for use later in the Insite software – or leave blank – then press t
7. Now on the 'UDL Priority' screen – we recommend setting this to High [0] (which prevents
App events / notifications from disconnecting the UDL connection).
HomeContol+
On InSite UDL software from a PC
1. To setup the COM port associated to "modem" open the software, click on "Configuration", choose
"Modem Settings" and select "MODEM" option
2. Verify that COM port associated to "Modem" in the UDL is the same set in the PC
3. Verify that the modem Icon is green and glowing in the software Graphic User Interface
4. In the "Configurations" menu choose the "Modem Type" from the drop down menu. This is the
modem connected to the PC and used to call the panel
5. Press "Load Default String" to program the right initialization string for the selected modem
6. Click on "Force Dial customer"
7. Set "Dial Mode" field to "MODEM" and insert the telephone number in "Telephone Number" field
8. Enter the Engineer code in the "Engineer Code" field and then Click on "dial"
10. If connection is successful, the modem Icon will become blue.
8.4.4 Modem Connection (DIGI-GPRS or DIGI-LAN)
On the Panel: Make sure that the panel is connected to the GPRS network (or the LAN cable
to a suitable internet connection) on a Data enabled SIM card.
1. Enter the Engineer Menu (code 9999)
2. Scroll the menu (x button) until the "Options Up/Downloading" – Press t
3. Choose 'Cloud' (option 6) in the "Download by" option – Press t
4. Make a note of your System ID (to enter in the Insite software later) - Press t
5. Select Security level – for initial connections we recommend [0] (normal) - Press t
6. Create/enter a system password and take note of it - Press t
7. Now on the 'Poll Server' screen – select 'Yes' [1] and press t
8. Now on the 'UDL Password' screen – DO NOT USE – leave blank and Press t
9. Now on the 'Site Name' screen – this is optional – if you enter a site name, make sure that you
take a note of it for use later in the Insite software – or leave blank – then press t
10. Now on the 'UDL Priority' screen – we recommend setting this to High [0] (which prevents
App events / notifications from disconnecting the UDL connection).
HomeContol+
On InSite UDL software from a PC
1. Click on 'Roving Dial customer' (or hold Ctrl and press the F10 key).
2. Click on the 'Dial Out Mode' drop down list – and select 'Cloud'
3. Enter the 'System ID' of your Panel (See 'Set Up Downloading' in the panel Engineer menu)
4. Enter 'system password' (as entered in 'Set Up Downloading' in the panel Engineer menu)
5. Leave the UDL security at 'normal' for initial connection test in 'System Security Level' field).
6. Enter the engineer code as used on the panel you are trying to connect.
7. Enter 'Site Name' as entered in panel ONLY if it was entered on the panel –otherwise, leave blank.
8. Enter an appropriate panel name into the 'Enter Customer In Database As' field.
9. Click 'Dial'. If connection is successful, the Cloud Icon will become blue, and a dialogue box will
appear asking if you would like to create a customer – click 'yes' to continue.
10. The control panel is now successfully connected to the Insite UDL software.
