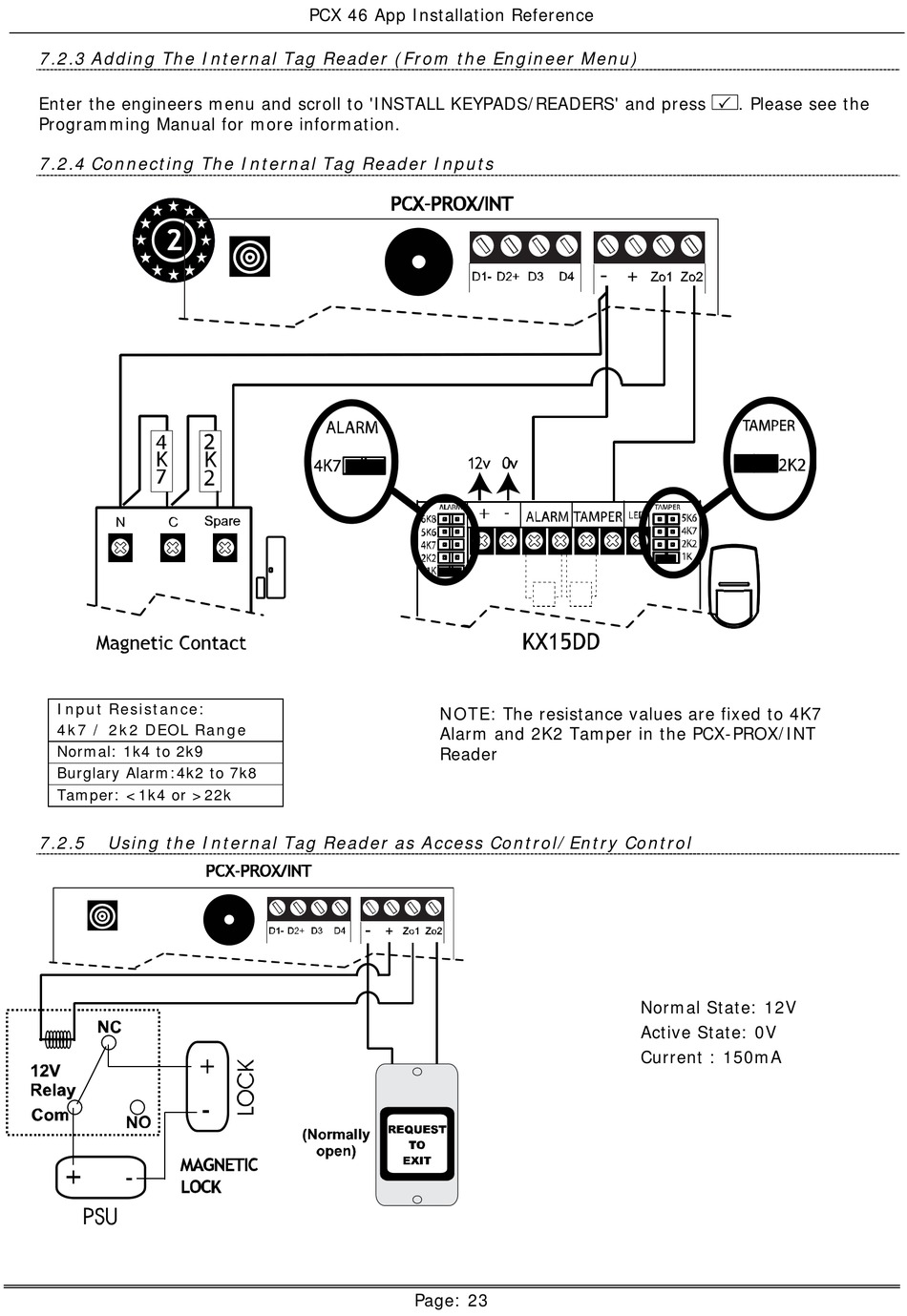

7.2.3 Adding The Internal Tag Reader (From the Engineer Menu)
Enter the engineers menu and scroll to 'INSTALL KEYPADS/READERS' and press t. Please see the
Programming Manual for more information.
7.2.4 Connecting The Internal Tag Reader Inputs
Input Resistance:
4k7 / 2k2 DEOL Range
Normal: 1k4 to 2k9
Burglary Alarm:4k2 to 7k8
Tamper: <1k4 or >22k
7.2.5
Using the Internal Tag Reader as Access Control/Entry Control
PCX 46 App Installation Reference
NOTE: The resistance values are fixed to 4K7
Alarm and 2K2 Tamper in the PCX-PROX/INT
Reader
Page: 23
Normal State: 12V
Active State: 0V
Current : 150mA
