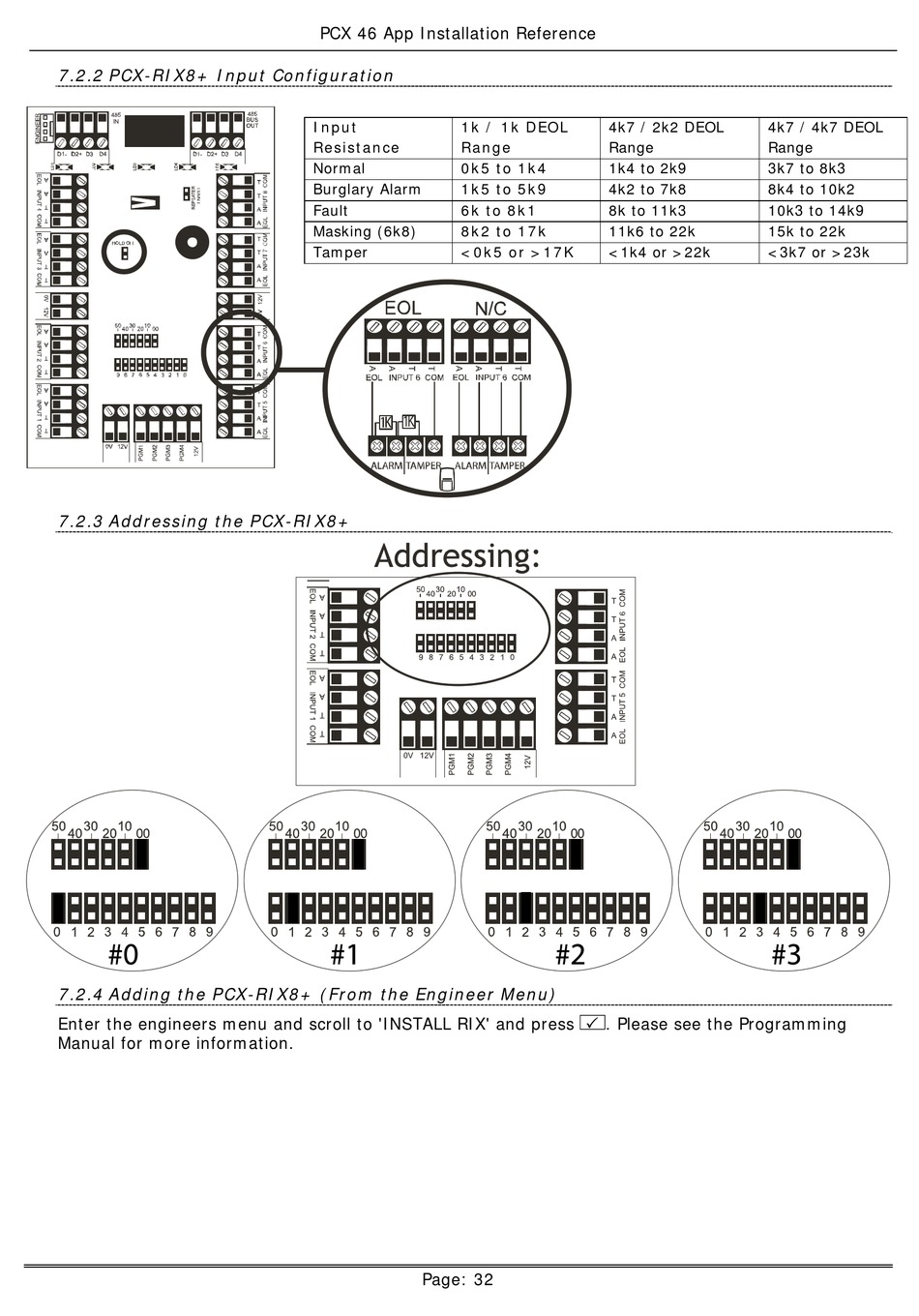

7.2.2 PCX-RIX8+ Input Configuration
7.2.3 Addressing the PCX-RIX8+
7.2.4 Adding the PCX-RIX8+ (From the Engineer Menu)
Enter the engineers menu and scroll to 'INSTALL RIX' and press t. Please see the Programming
Manual for more information.
PCX 46 App Installation Reference
Input
1k / 1k DEOL
Resistance
Range
Normal
0k5 to 1k4
Burglary Alarm
1k5 to 5k9
Fault
6k to 8k1
Masking (6k8)
8k2 to 17k
Tamper
<0k5 or >17K
Page: 32
4k7 / 2k2 DEOL
4k7 / 4k7 DEOL
Range
Range
1k4 to 2k9
3k7 to 8k3
4k2 to 7k8
8k4 to 10k2
8k to 11k3
10k3 to 14k9
11k6 to 22k
15k to 22k
<1k4 or >22k
<3k7 or >23k
