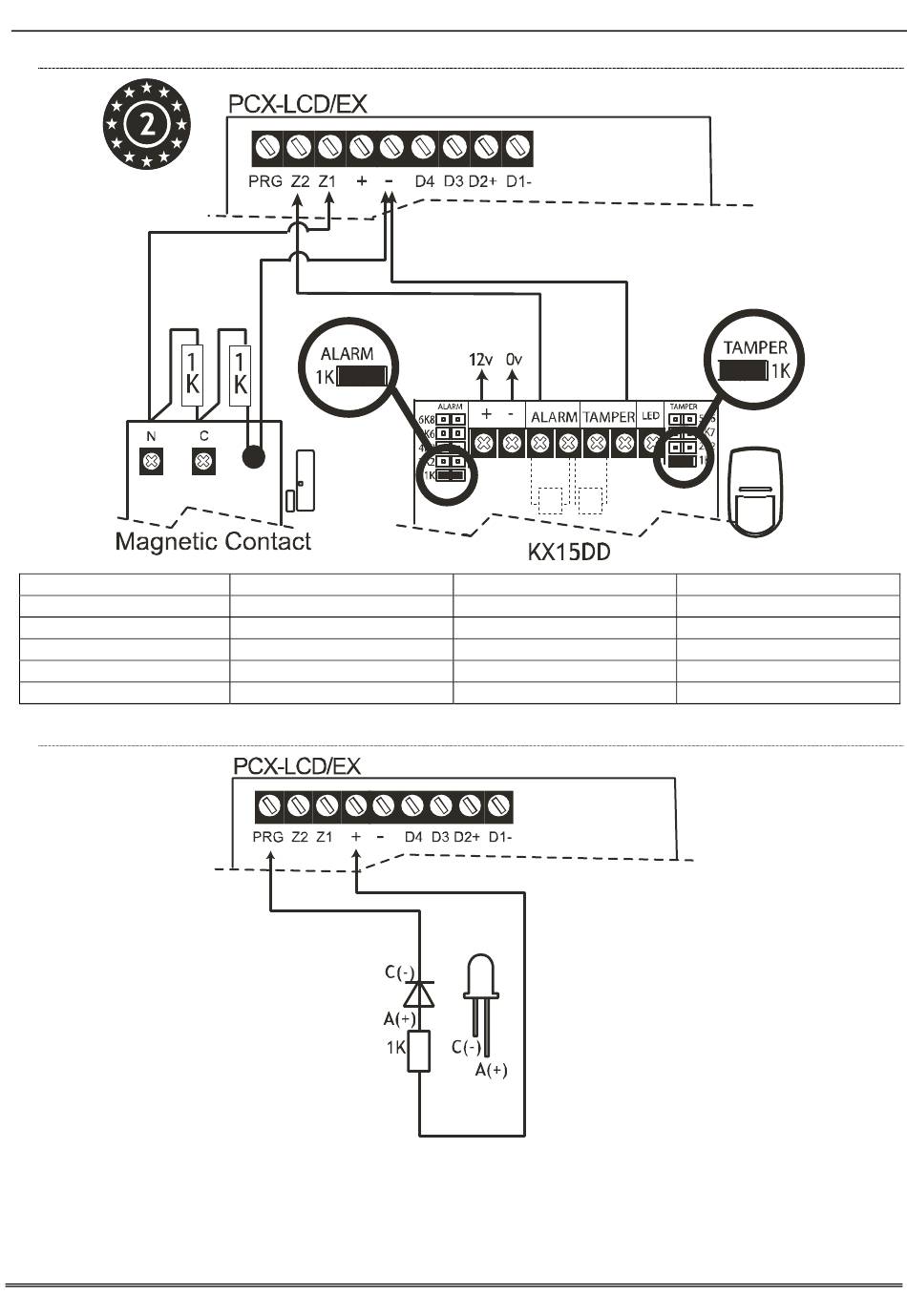

7.1.5 Connecting The PCX LCD Keypad Inputs (Grade 2)
Input Resistance
Normal
Burglary Alarm
Fault
Masking (6k8)
Tamper
7.1.6 Connecting The Outputs
PCX 46 App Installation Reference
1k / 1k DEOL Range
0k5 to 1k4
1k5 to 5k9
6k to 8k1
8k2 to 17k
<0k5 or >17K
4k7 / 2k2 DEOL Range
1k4 to 2k9
4k2 to 7k8
8k to 11k3
11k6 to 22k
<1k4 or >22k
Page: 21
4k7 / 4k7 DEOL Range
3k7 to 8k3
8k4 to 10k2
10k3 to 14k9
15k to 22k
<3k7 or >23k
Normal State: 12V
Active State: 0V
Current : 100mA
