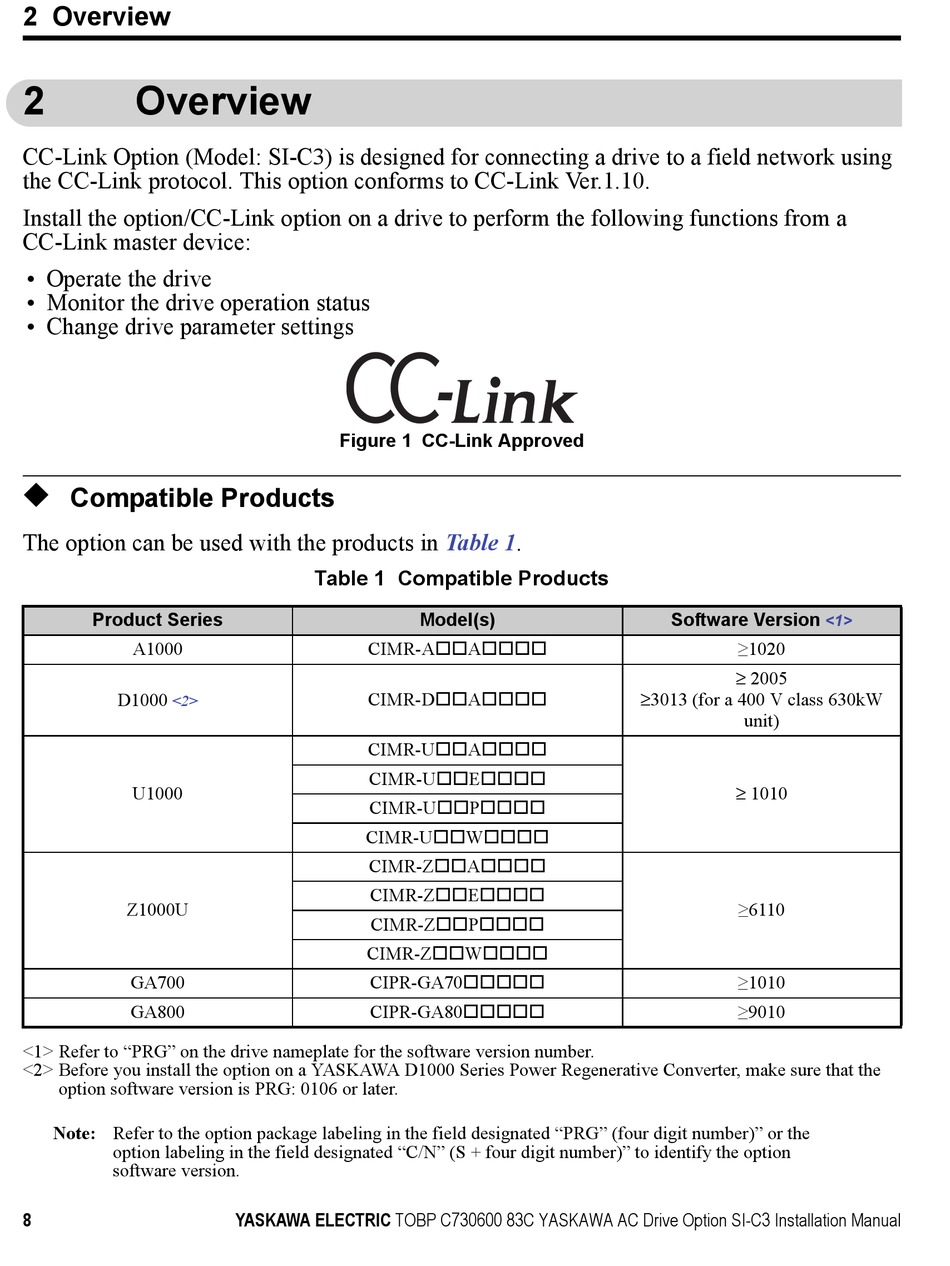

2 Overview

2 Overview
CC-Link Option (Model: SI-C3) is designed for connecting a drive to a field network using
the CC-Link protocol. This option conforms to CC-Link Ver.1.10.
Install the option/CC-Link option on a drive to perform the following functions from a
CC-Link master device:
• Operate the drive
• Monitor the drive operation status
• Change drive parameter settings
Figure 1
u
Compatible Products
The option can be used with the products in
Product Series
A1000
D1000
<2>
U1000
Z1000U
GA700
GA800
<1> Refer to "PRG" on the drive nameplate for the software version number.
<2> Before you install the option on a YASKAWA D1000 Series Power Regenerative Converter, make sure that the
option software version is PRG: 0106 or later.
Note: Refer to the option package labeling in the field designated "PRG" (four digit number)" or the
option labeling in the field designated "C/N" (S + four digit number)" to identify the option
software version.
8
Figure 1 CC-Link Approved
Table 1 Compatible Products
CIMR-AA
CIMR-DA
CIMR-UA
CIMR-UE
CIMR-UP
CIMR-UW
CIMR-ZA
CIMR-ZE
CIMR-ZP
CIMR-ZW
CIPR-GA70
CIPR-GA80
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
Table 1.
Model(s) Software Version
≥1020
≥ 2005
≥3013 (for a 400 V class 630kW
unit)
≥ 1010
≥6110
≥1010
≥9010
<1>
