6.
Reattach the LED Status Ring board (H).
Use the open space provided inside the LED Status Ring board to route option
wiring.
NOTICE: Do not pinch cables between the front cover or the LED Status Ring board and the drive. Failure
to comply could cause erroneous operation.
7.
Reattach the drive front cover (D) and the keypad (F).
Figure 18
8.
Set drive parameters in
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
Install the keypad to the drive after replacing
the keypad connector and then the keypad
connector. At that time, insert the keypad
connector tab into the drive.
H

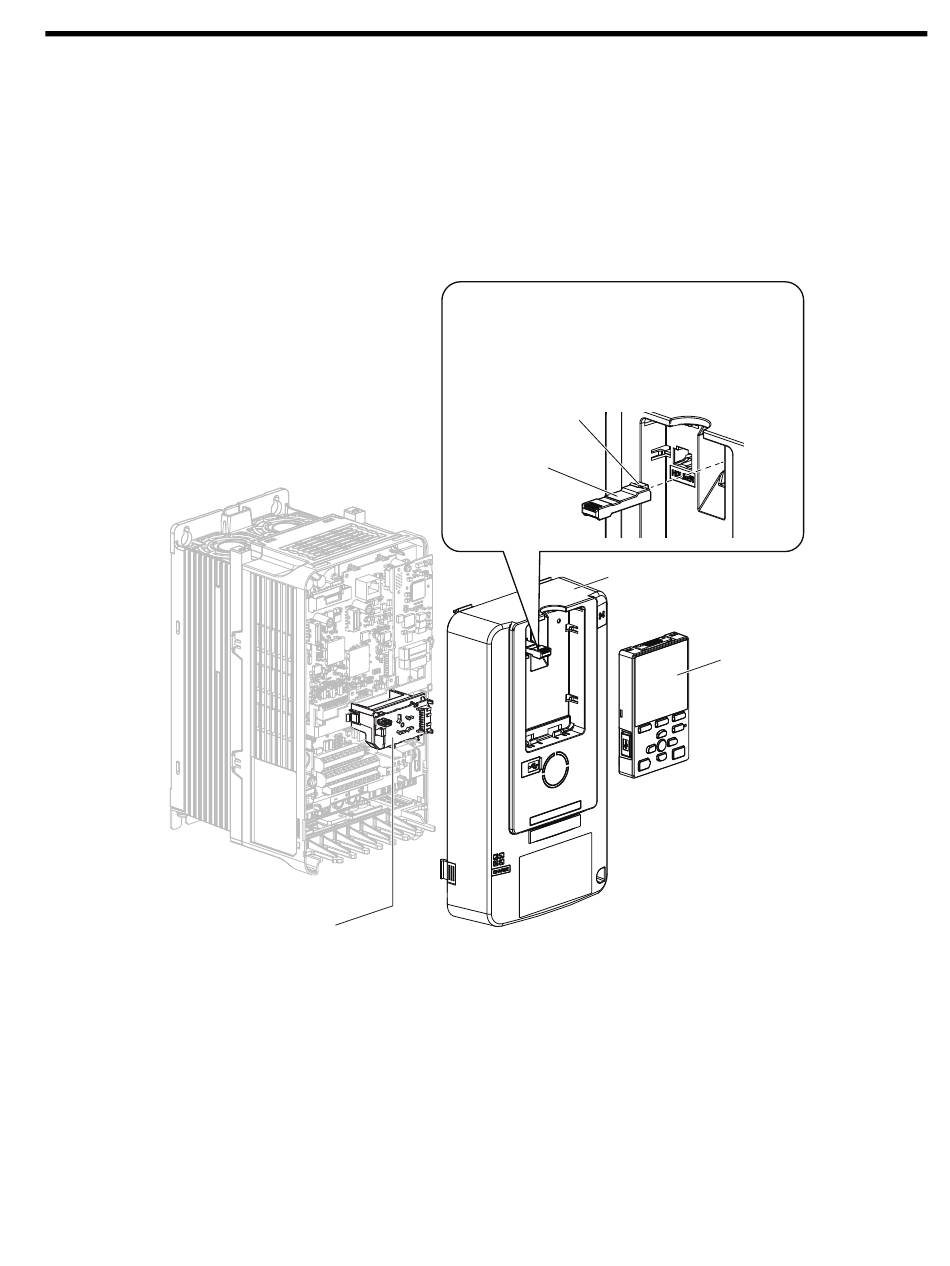

Figure 18 Replace the Front Cover and Keypad
Table 7 for correct option performance.
5 Installation Procedure
Tab
Keypad
connector
D
F
