5 Installation Procedure
4.
Insert the option card (B) into the CN5-A connector (I) on the drive and fasten it into
place using the included screws (C). Tighten both screws to 0.5 to 0.6 Nm (4.4 to
5.3 inlb).
Note: Installing the option card on GA700 and GA800 drives requires only two screws and does not
require a ground wire. The option package ships with three screws and a ground wire for
installation on other product series. Do not use the ground wire or the extra screw.
Figure 17
I
5.
Select the proper CC-Link dedicated communication cable according to
Firmly connect the CC-Link communication cable to option communication
connector CN1.
Install CC-Link communications cables apart from main-circuit wiring and other
electrical and power lines. Ensure the cable end is firmly connected (see
Refer to
Note: Maximum transmission distance is 100 m (328 ft). Minimum wiring distance between stations is
0.2 m (7.9 in).
26

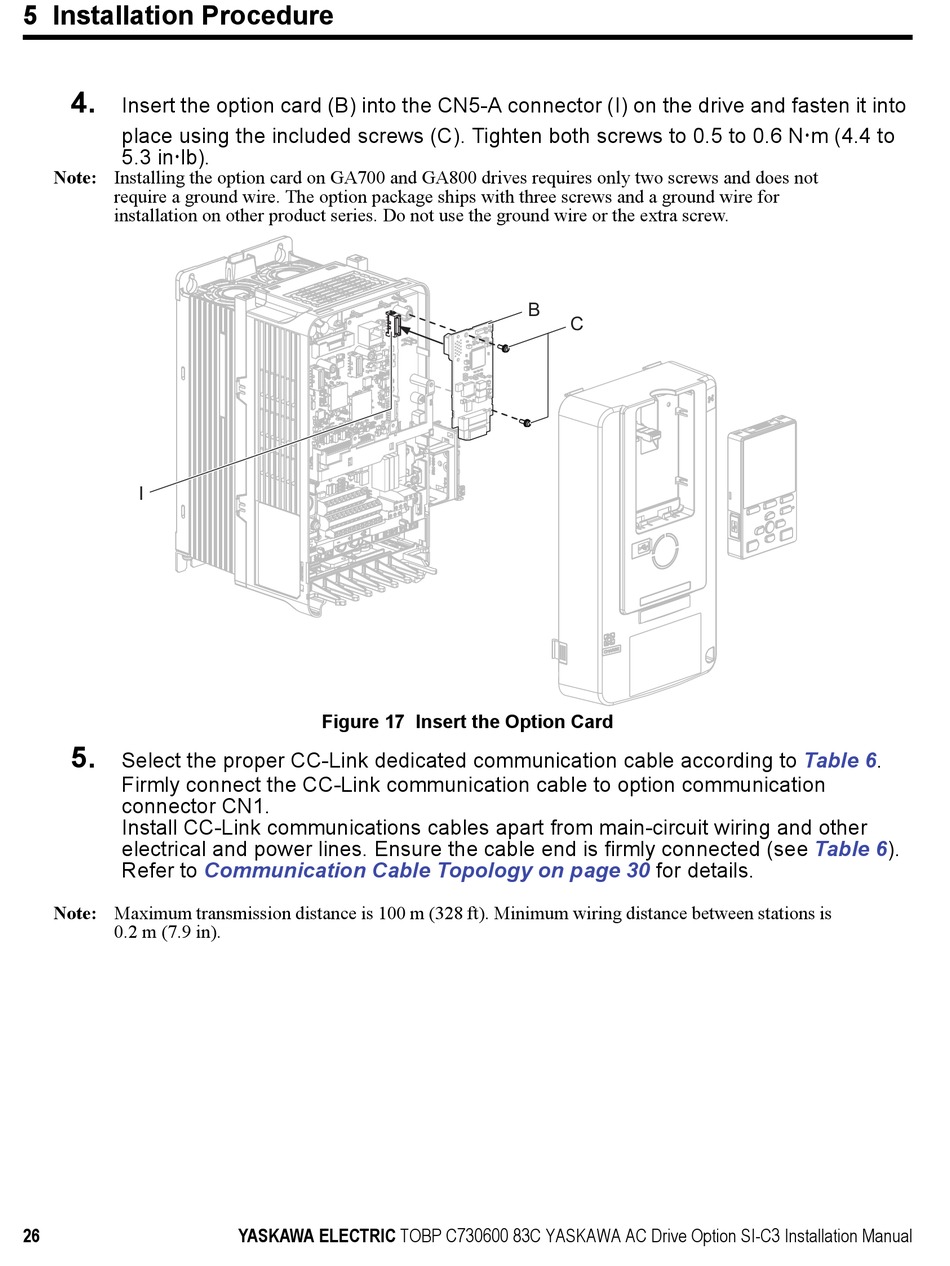

Figure 17 Insert the Option Card
Communication Cable Topology on page 30
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
B
C
for details.
Table 6.
Table 6).
