3.
Carefully remove the LED Status Ring board (H) and place it on the right side of the
drive using the temporary placement holes.
Refer to the manual packaged with the drive for details on removing the LED Status
Ring board.
NOTICE: Do not remove the LED Status Ring board cable connector. Failure to comply could cause
erroneous operation and damage the drive.

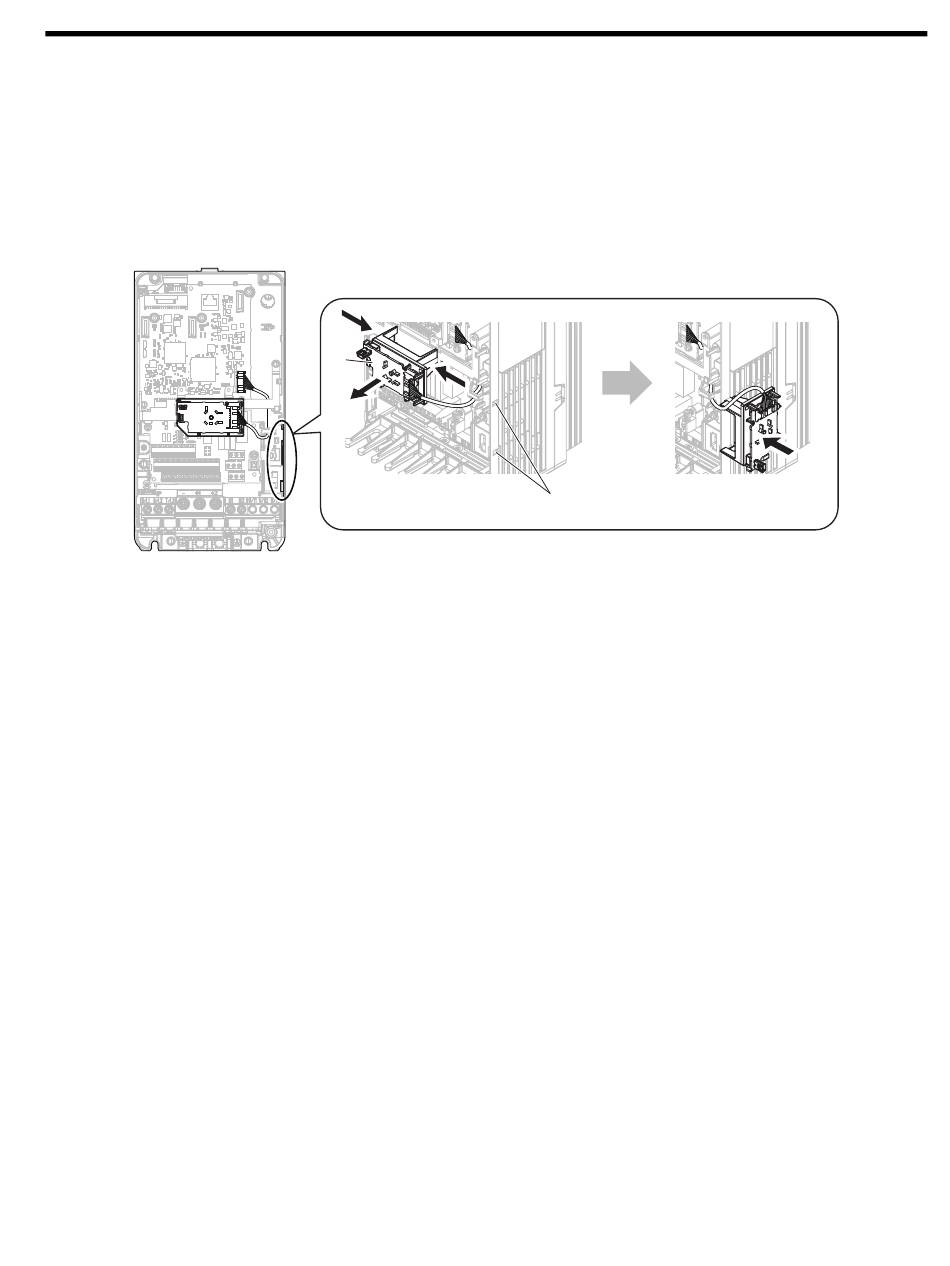

Figure 16
Drive front view
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
H
Figure 16 Remove the LED Status Ring Board
5 Installation Procedure
Temporary placement holes
25
