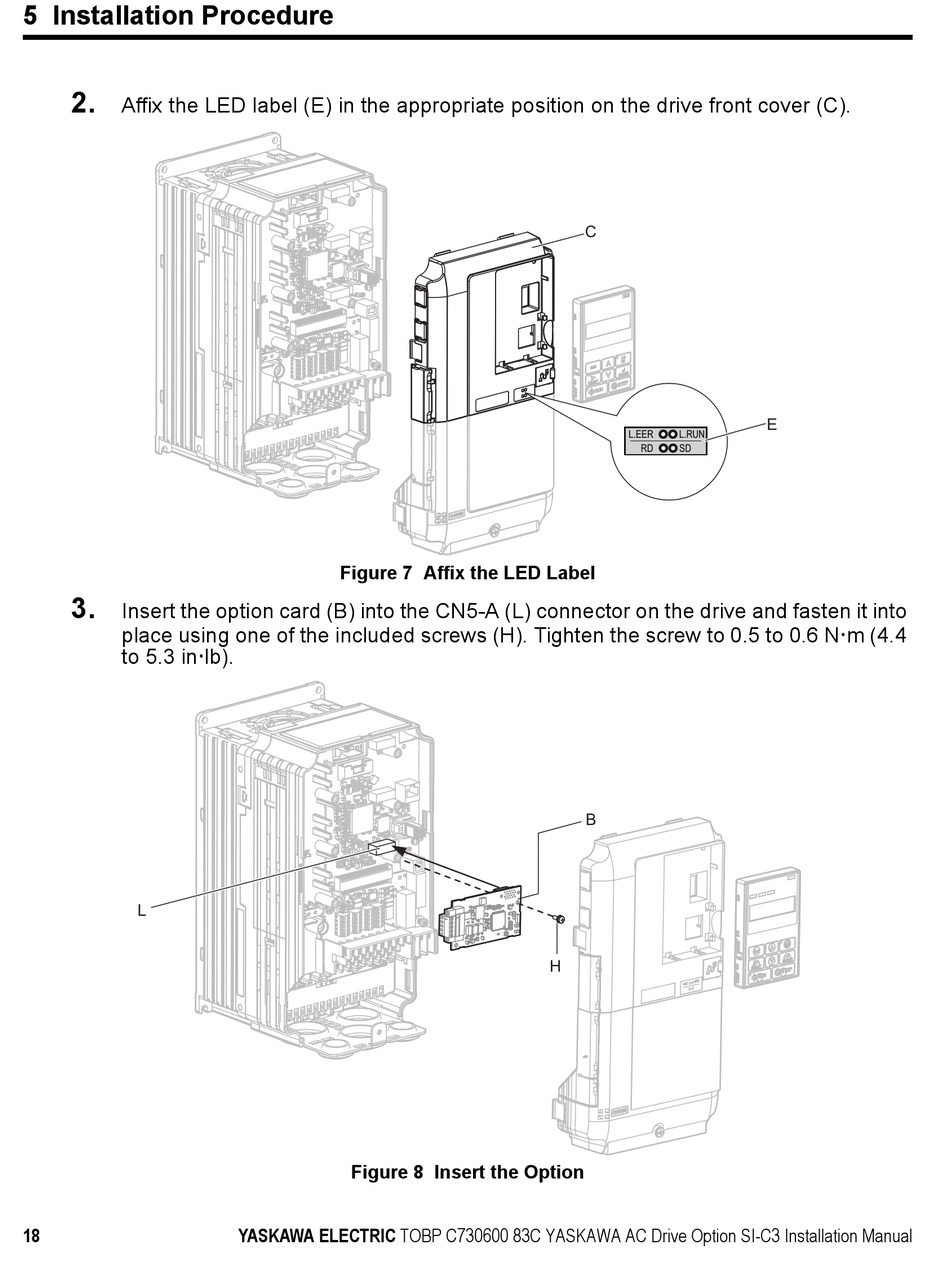

5 Installation Procedure
2.
Affix the LED label (E) in the appropriate position on the drive front cover (C).
Figure 7
3.
Insert the option card (B) into the CN5-A (L) connector on the drive and fasten it into
place using one of the included screws (H). Tighten the screw to 0.5 to 0.6 Nm (4.4
to 5.3 inlb).
Figure 8
L
18
Figure 7 Affix the LED Label
Figure 8 Insert the Option
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
C
L.EER L.RUN
RD SD
B
H
E
