u
CC-Link Option

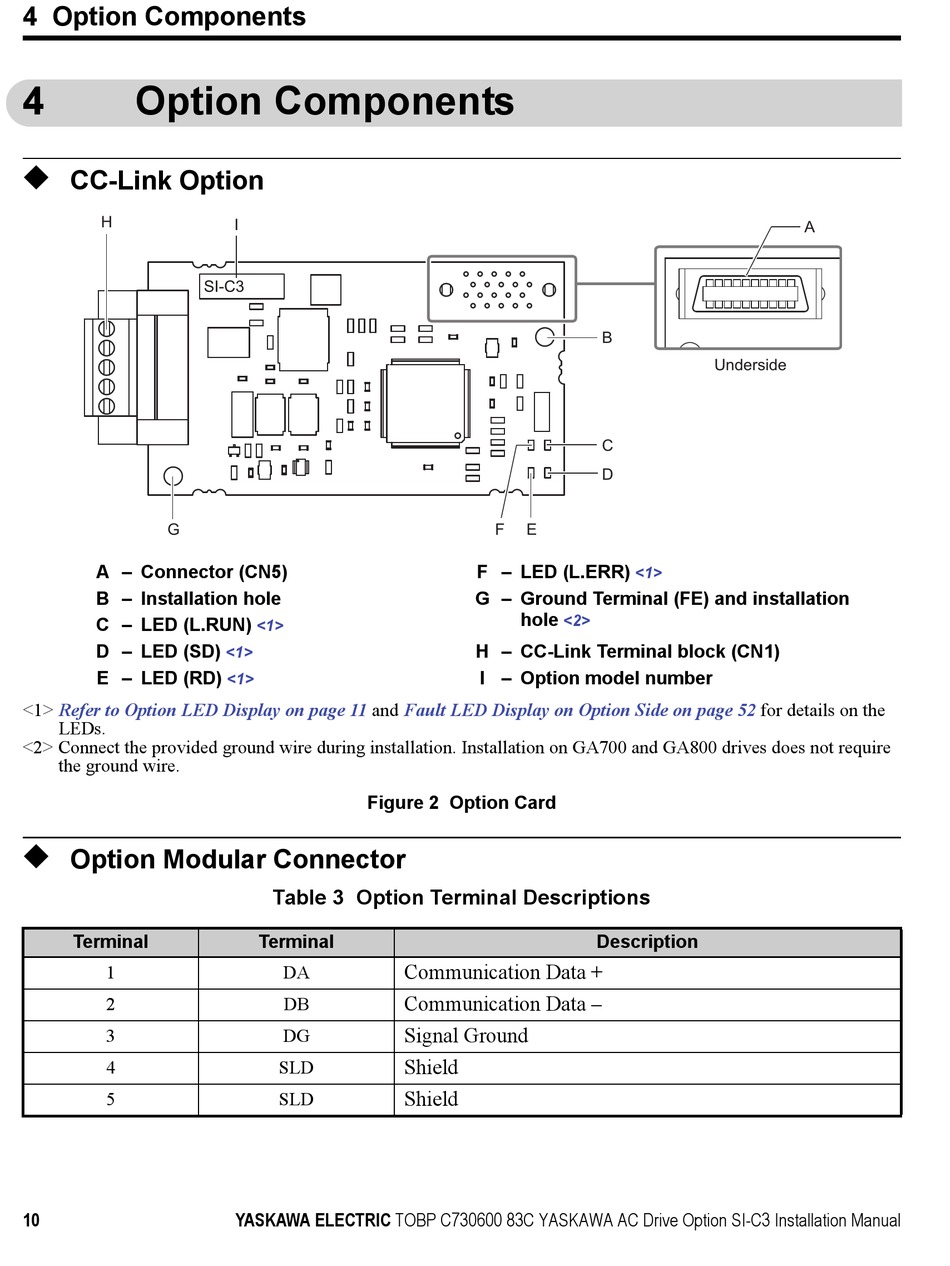

Figure 2
H
G
A – Connector (CN5)
B – Installation hole
C – LED (L.RUN)
D – LED (SD)
E – LED (RD)
<1> Refer to Option LED Display on page 11
LEDs.
<2> Connect the provided ground wire during installation. Installation on GA700 and GA800 drives does not require
the ground wire.
u
Option Modular Connector
Terminal
1
2
3
4
5
10
I
SI-C3
<1>
<1>
<1>
and
Figure 2 Option Card
Table 3 Option Terminal Descriptions
Terminal
DA
DB
DG
SLD
SLD
