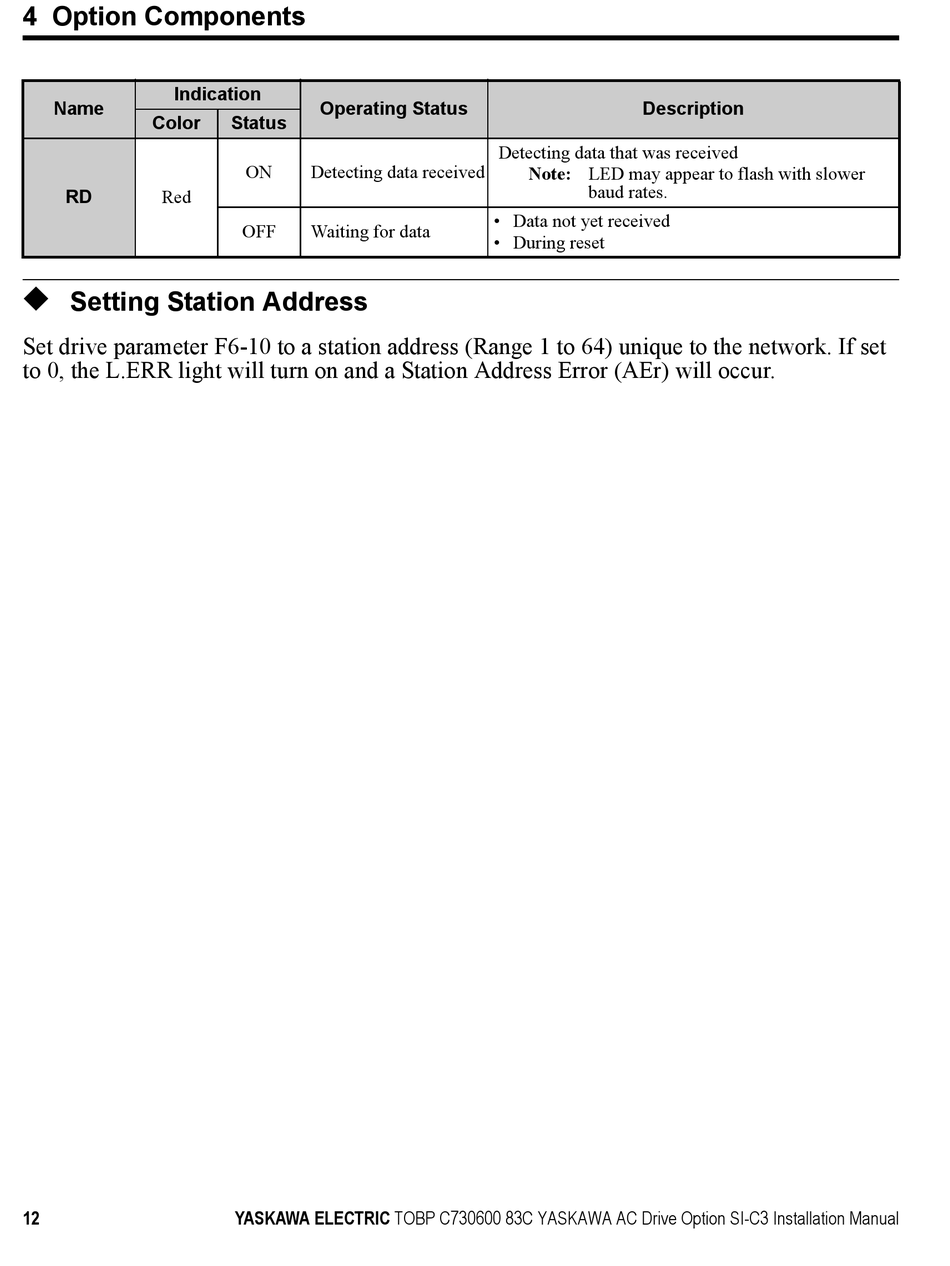

YASKAWA CC-Link Installation Manual page 12

4 Option Components
Indication
Name
Color
RD Red
u
Setting Station Address
Set drive parameter F6-10 to a station address (Range 1 to 64) unique to the network. If set
to 0, the L.ERR light will turn on and a Station Address Error (AEr) will occur.
12
Operating Status
Status
ON Detecting data received
OFF Waiting for data
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
Description
Detecting data that was received
Note: LED may appear to flash with slower
baud rates.
• Data not yet received
• During reset
