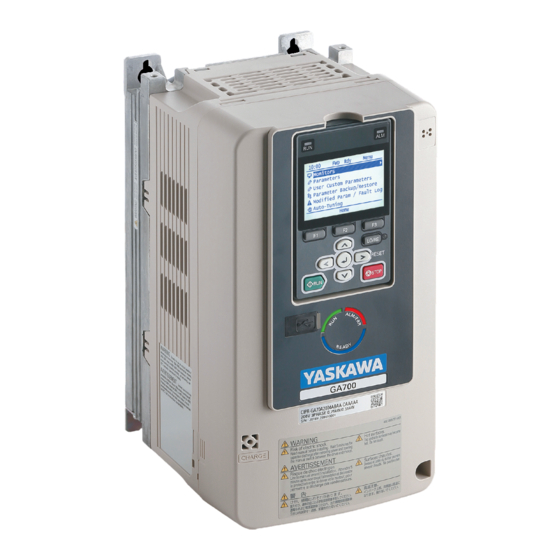

YASKAWA AC Drive GA700
High Performance Type
Initial Steps
Type:
CIPR-GA70Cxxxxxxxx
Models: 200 V class: 0.55 to 110 kW
400 V class: 0.55 to 355 kW
To properly use the product, read this manual thoroughly and retain for easy
reference, inspection, and maintenance. Ensure the end user receives this
manual.
MANUAL NO. TOEP C710617 17D
EN
Initial Steps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIPR-GA70C Series and is the answer not in the manual?

Questions and answers

Ahmed
July 9, 2025

IGBT Failure

0

Subscribe to Our Youtube Channel

Related Manuals for YASKAWA CIPR-GA70C Series

Summary of Contents for YASKAWA CIPR-GA70C Series

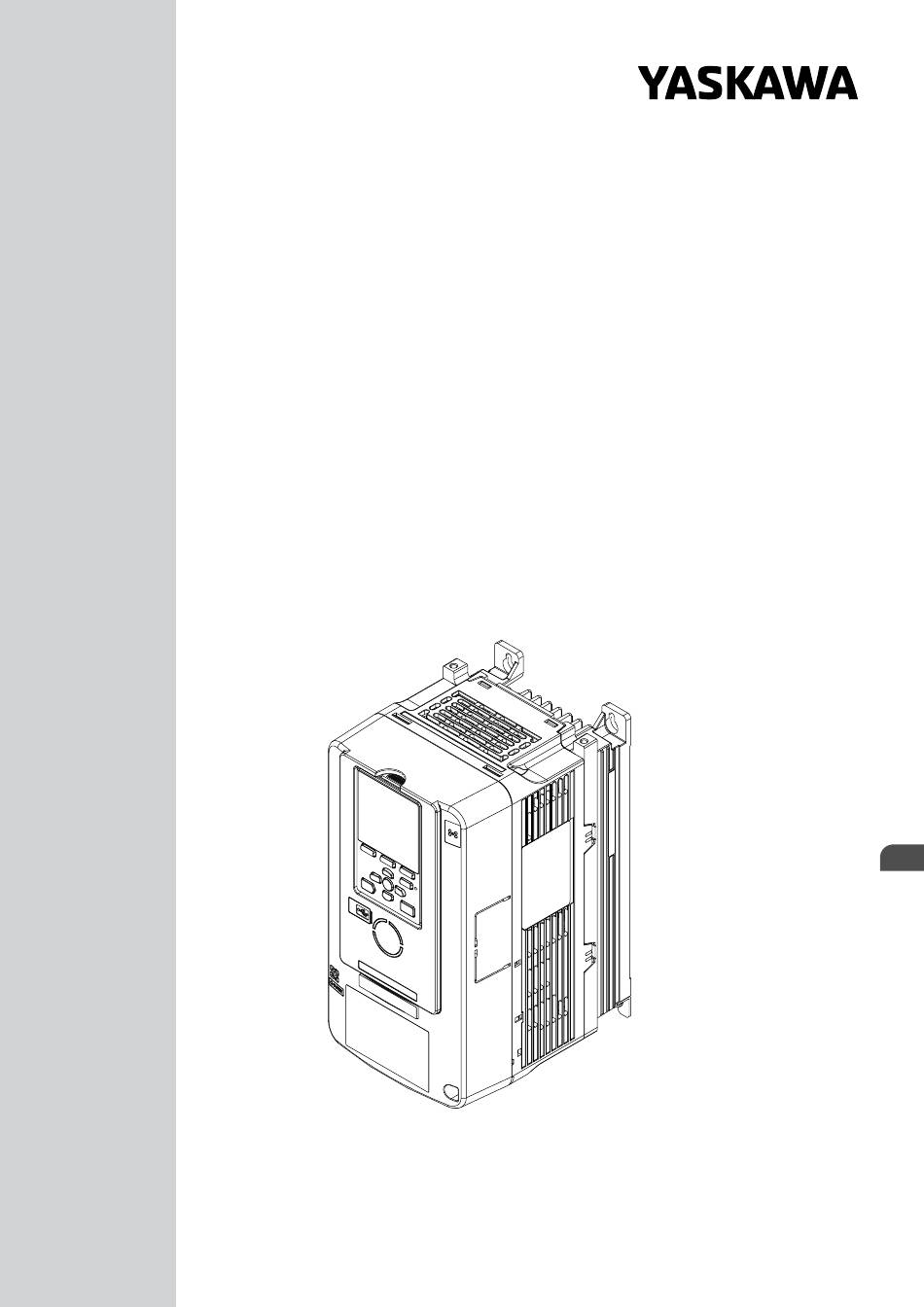

  • Page 1 YASKAWA AC Drive GA700 High Performance Type Initial Steps Type: CIPR-GA70Cxxxxxxxx Models: 200 V class: 0.55 to 110 kW 400 V class: 0.55 to 355 kW To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual.

  • Page 2: General Information

    Yaskawa’s warranty for the product. Note: Failure to obey the safety messages in the manual can cause serious injury or death. Yaskawa is not responsible for injuries or damage to equipment caused by ignoring the safety messages.
  • Page 3 Electrical Shock Hazard. Do not make changes to the drive body or drive circuitry. Failure to obey can cause death or serious injury and will void warranty. Yaskawa is not responsible for changes to the product made by the user.

  • Page 4: Intended Use

    Electrical Shock Hazard. Do not make changes to the drive body or drive circuitry. Failure to obey can cause death or serious injury and will void warranty. Yaskawa is not responsible for changes to the product made by the user.
  • Page 5 Yaskawa Electric Corporation J - Input specifications D - Accreditation standards K - Drive model E - Surrounding air temperature F - Protection design Figure 5.1 Nameplate Information Example YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 5...
  • Page 6 The menu shown on the keypad sets the functions for function keys. F1, F2, F3 The name of each function is in the lower half of the display window. EN 6 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 7 = 1 [LOCAL/REMOTE Run Selection = Accept Existing RUN Command]. Failure to obey can cause death or serious injury. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 7...

  • Page 8: Keypad Mode And Menu Displays

    6 Keypad ◆ Keypad Mode and Menu Displays Figure 6.2 Keypad Functions and Display Levels EN 8 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 9 Programming Modified Parameters/Fault Log Shows modified parameters and fault history. Mode Auto-Tuning Auto-Tunes the drive. Initial Setup Changes initial settings. Diagnostic Tools Sets data logs and backlight. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 9...

  • Page 10: Led Status Ring

    Stop with Timer]), and the Run command is disabled then enabled during the Run wait time. The motor is stopped. Refer to Figure 7.1 for the difference between flashing and flashing quickly. EN 10 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...

  • Page 11: Start-Up Procedure

    10. Fine-tune and set application parameters, such as PID. 11. Check final operation and make sure that parameter settings are correct. The drive is prepared to run the operation. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 11...

  • Page 12: Mechanical Installation

    Installation Position and Distance Install the drive vertically for sufficient cooling airflow. Note: Contact Yaskawa or a Yaskawa representative for more information about installing drive models on their side. A - Vertical installation B - Horizontal installation Figure 9.1 Installation Position ■...

  • Page 13: Installation Environment

    • Do not allow ice to develop on the drive. • Derate the output current and output voltage to install the drive in areas with ambient temperatures up to 60 °C (140 °F). YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 13...

  • Page 14: Removing The Covers

    • if the drive is grounded with the neutral network when installing the drive at an altitude between 2000 m to 3000 m (6562 ft. to 9843 ft.) Contact Yaskawa or your nearest sales representative when the drive is not grounded with the neutral network. • 10 Hz to 20 Hz: 1 G (9.8 m/s , 32.15 ft/s...

  • Page 15: Remove The Terminal Cover

    Loosen the screws on the terminal cover. Pull down on the cover. Pull forward on the terminal cover to free it from the drive. Figure 9.6 Removing the Terminal Cover YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 15...
  • Page 16 Put the keypad connector into the connector on the drive in the direction of the hook. Put the bottom part of the keypad into the drive first, then push the top part of the keypad into the drive to reattach the keypad. EN 16 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 17 • Process the cross section to prevent the cutaway section of the wiring cover from damaging the electric wires. • If electrical wires other than those specified by Yaskawa are used, the protective enclosure may not maintain the IP20 protective level, even if the wiring cover is used correctly. Contact Yaskawa or your nearest sales representative for details.

  • Page 18: Electrical Installation

    Failure to obey can cause damage to the motor insulation. NOTICE Do not connect the AC control circuit ground to the drive enclosure. Failure to obey can cause incorrect control circuit operation. EN 18 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 19 Be careful when using a cut-off sequence. The default setting for L5-02 is 0 [Active Only when Not Restarting]. Connect peripheral options to terminals -, +1, +2, B1, and B2. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 19...
  • Page 20 Use shielded wire for control circuit terminal wiring. Use crimp ferrules on the wire ends for more reliable wiring. EN 20 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 21 Connect a regenerative converter or regenerative unit with terminals +1 and -. NOTICE Do not connect a braking resistor to terminals +1 or -. Failure to obey can cause damage to the drive circuitry. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 21...

  • Page 22: Drive Start-Up

    Refer to the motor nameplate to record the information in the following table before starting the drive. Item Value Motor Rated Power Motor Rated Voltage Motor Rated Current Motor Rated Frequency EN 22 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...

  • Page 23: Auto Tuning

    T1-01 [Auto-Tuning Mode Selection] and T4-01 [EZ Tuning Mode Selection]. 3. Push to start Auto-Tuning. Refer to the Technical Manual for more information about Auto-Tuning. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 23...

  • Page 24: Change Parameter Settings

    • The keypad will show [Home] in the top right corner when the HOME screen is active. • If [Home] is not on , push (Back). Push (Menu). Push to select [Parameters], then push EN 24 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 25 Refer to the Technical Manual for information about speed feedback and Permanent Magnet/Synchronous Reluctance motor control methods. Use parameter A1-02 [Control Method Selection] to set the correct motor control method for the application. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 25...

  • Page 26: Drive Duty Modes

    Frequency Reference Sets the input method for the frequency reference. Selection 1 (0180) 0: Keypad, 1: Analog Input, 2: Memobus/Modbus Communications, 3: Option PCB, 4: Pulse Train Input EN 26 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...
  • Page 27 E1-09 Minimum Output Sets the minimum output frequency for the V/f pattern. Frequency (0308) E2-01 Motor Rated Current Sets the motor rated current in amperes. (FLA) (030E) YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 27...
  • Page 28 Sets which drive monitor Ux-xx to output from MFAO terminal FM. Output Select (041D) H4-02 Terminal FM Analog Sets the gain of the Ux-xx monitor signal in H4-01 [Terminal FM Analog Output Select]. Output Gain (041E) EN 28 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...

  • Page 29: Faults And Alarms

    • Make sure that the host controller sequence is correct. CrST Remove RUN Command to Tried to reset a fault when a Run Stop the Run command and reset the drive. Reset command was active. YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps EN 29...
  • Page 30 • Measure the voltage from the drive input power. Too much fluctuation in the drive input power voltage. • Make the drive input power stable. EN 30 YASKAWA ELECTRIC TOEP C710617 17D YASKAWA AC Drive GA700 Initial Steps...

  • Page 31: Disposal Instructions

    • Customers are responsible for microSD card data protection. PC functions that format and delete the data may not be sufficient to fully erase the microSD card data. Yaskawa recommends that customers physically destroy the microSD card in a shredder or use data wipe software to fully erase the card.
  • Page 32 YASKAWA AMERICA, INC. 2121, Norman Drive South, Waukegan, IL 60085, U.S.A. Phone: +1-800-YASKAWA (927-5292) or +1-847-887-7000 Fax: +1-847-887-7310 Internet: http://www.yaskawa.com In the event that the end user of this product is to be the military and said product is to be employed in any weapons systems or the manufacture thereof, the export will fall under the relevant regulations as stipulated in the Foreign Exchange and Foreign Trade Regulations.
