5 Installation Procedure
2.
Shut off power to the drive, wait the appropriate amount of time for voltage to
dissipate, then remove the front cover (D).
Refer to the manual packaged with the drive for details on cover removal.
NOTICE: Damage to Equipment. Observe proper electrostatic discharge (ESD) procedures when handling
the option, drive, and circuit boards. Failure to comply could cause ESD damage to circuitry.
Figure 15
24
Move the keypad connector to the holder on
the drive after removing the keypad and before
removing the front cover. Insert the keypad
connector tab into the holder when installing
the keypad connector to the holder.
Keypad connector tab

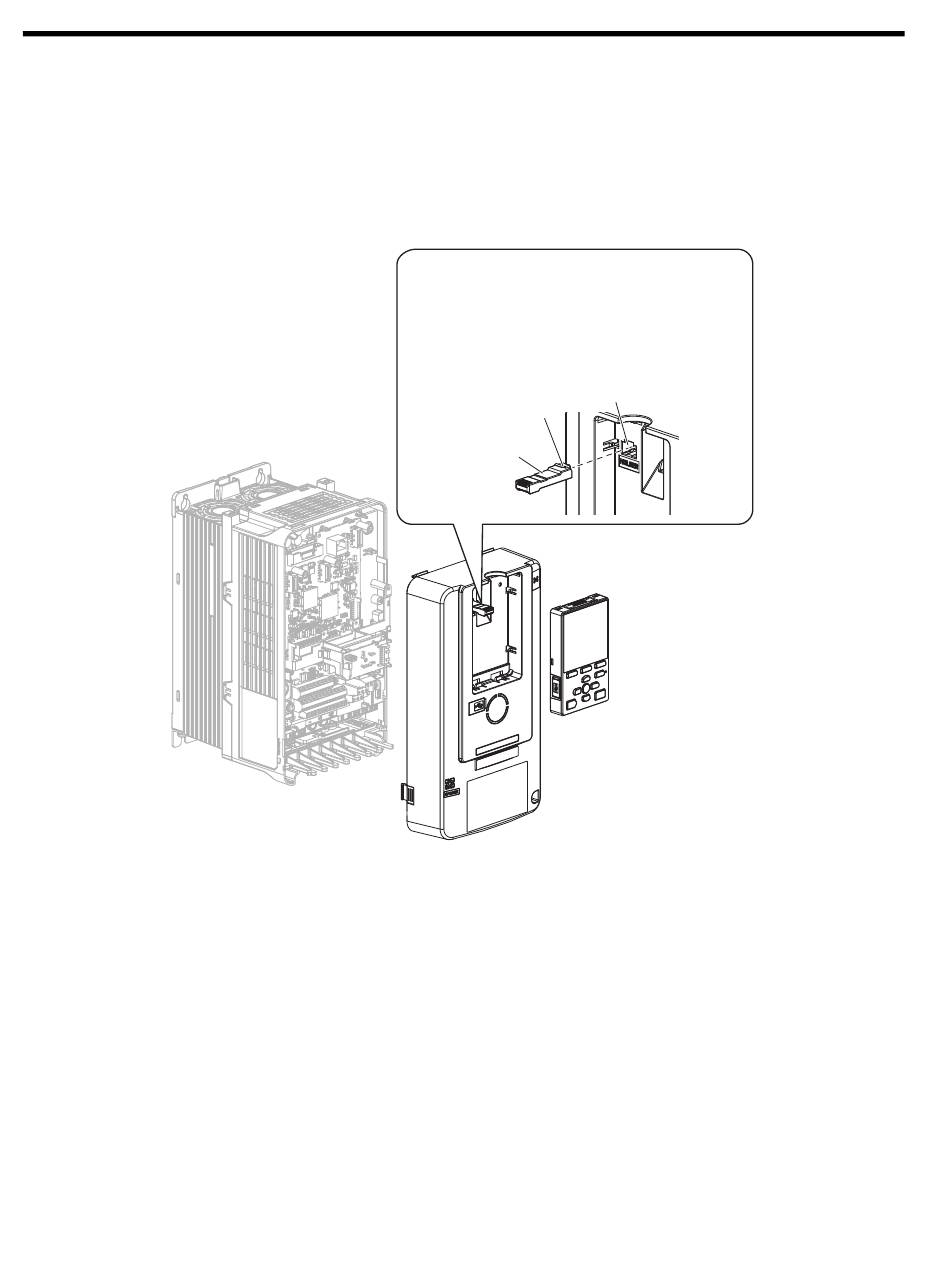

Figure 15 Remove the Front Cover and Keypad
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
Holder
Keypad
connector
