YASKAWA CC-Link Installation Manual page 22

5 Installation Procedure
Procedure B
n
This section shows the procedure to install and wire the option on a GA700 or GA800 drive.
Prepare the Drive for the Option
1. Correctly wire the drive as specified by the manual packaged with the drive.
2. Make sure that the drive functions correctly.
Refer to Figure 13
components for reference in the installation procedure.
Figure 13
K
J
I
A – Insertion point for CN5 connector
B – SI-C3 option
C – Included screws
D – Drive front cover
E – LED label
F – Keypad
G – Option modular connector CN1
H – LED Status Ring board
22
for an exploded view of the drive with the option and related
H
G

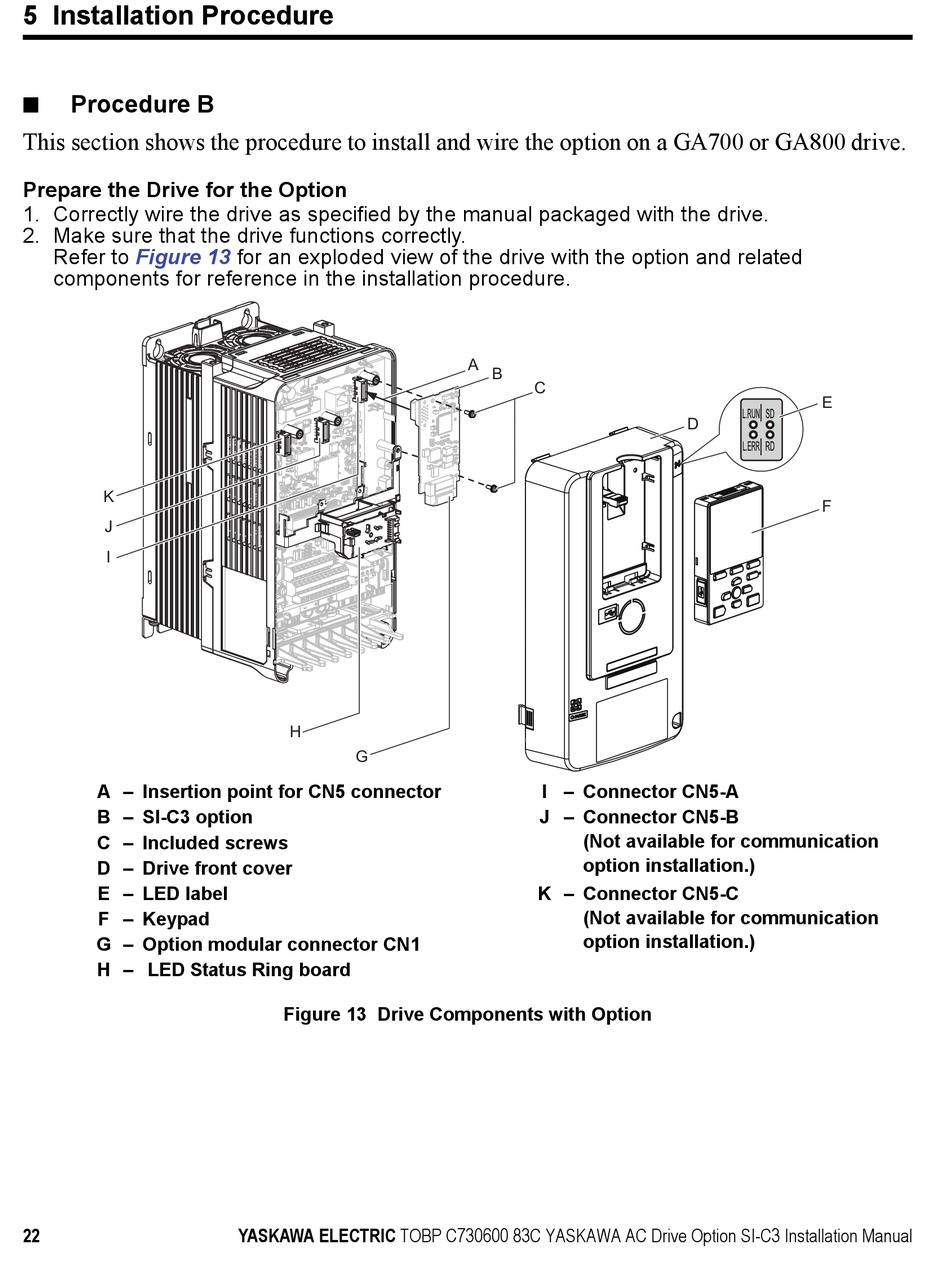

Figure 13 Drive Components with Option
YASKAWA ELECTRIC TOBP C730600 83C YASKAWA AC Drive Option SI-C3 Installation Manual
A
B
C
I – Connector CN5-A
J – Connector CN5-B
(Not available for communication
option installation.)
K – Connector CN5-C
(Not available for communication
option installation.)
E
D
F
