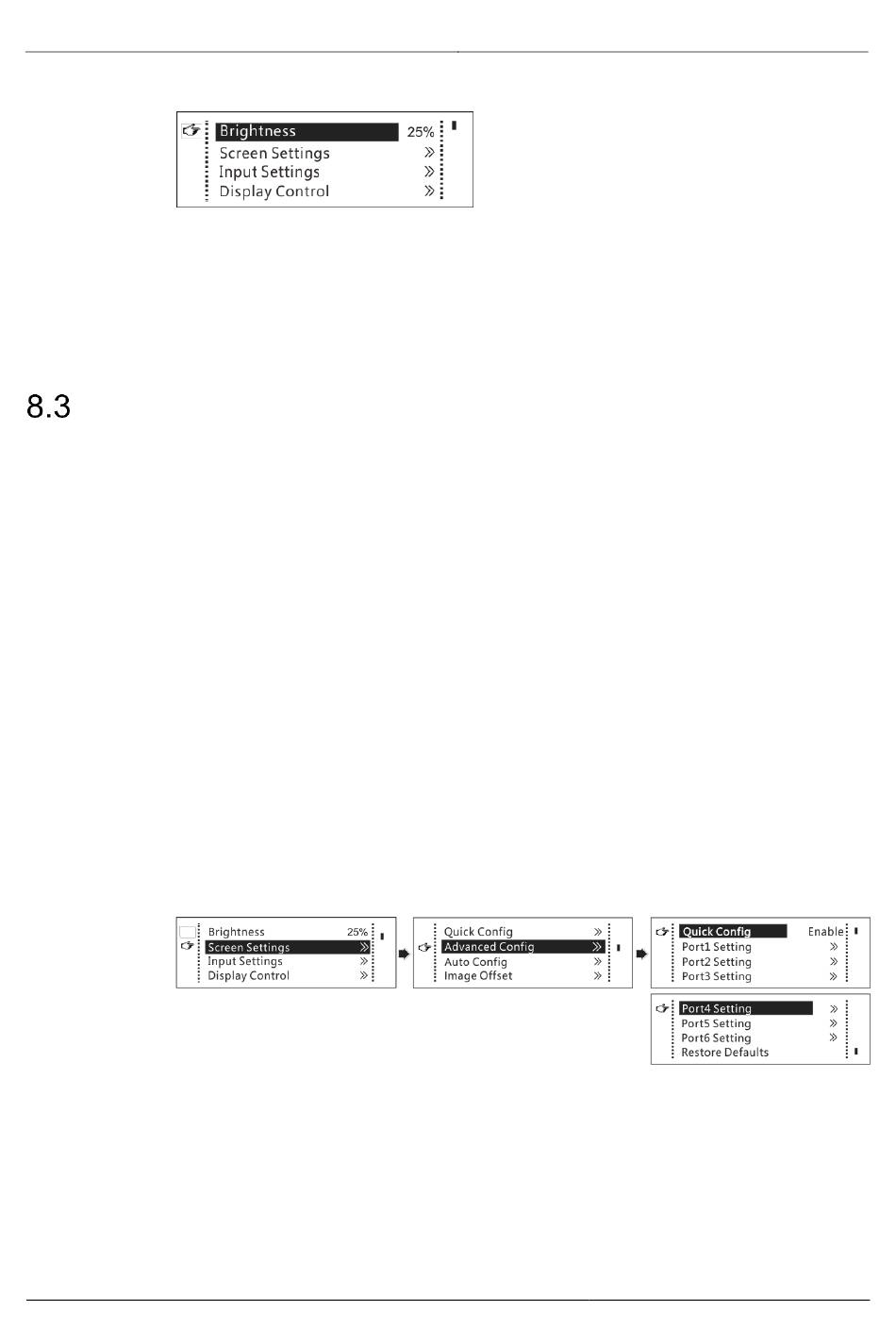

Figure 8-3 Brightness adjustment
Step 1 On the home screen, press the knob to enter the menu.
Step 2 Select Brightness and press the knob to enter the adjustment status.
Step 3 Rotate the knob to adjust the brightness value. The LED screen displays the
adjustment effect in real time. Press the knob to apply the brightness value.

Screen Settings

Configure the LED screen to ensure the screen can display the whole image
normally.
Screen configuration methods include quick, advanced and auto configurations.
There are constrains on these methods, explained as below.



8.3.1 Quick Configuration

Configure the whole LED screen uniformly and quickly. For details, see
Quickly Configuring

8.3.2 Advanced Configuration

Set parameters for each Ethernet port, including number of cabinet rows and
columns (Cabinet Row Qty and Cabinet Column Qty), horizontal offset (Start X),
vertical offset (Start Y), and data flow.
Figure 8-4 Advanced configuration
Step 1 On the home screen, press the knob to enter the menu.
Step 2 Choose Screen Settings > Advanced Config to enter its submenu.
Step 3 Enable Advance Config and set the parameters.
www.novastar.tech
The three methods cannot be used at the same time.
When you are configuring screen in NovaLCT, the three configuration methods
on The MCTRL 660 PRO are disabled.
Screen.
