Sending Card Mode

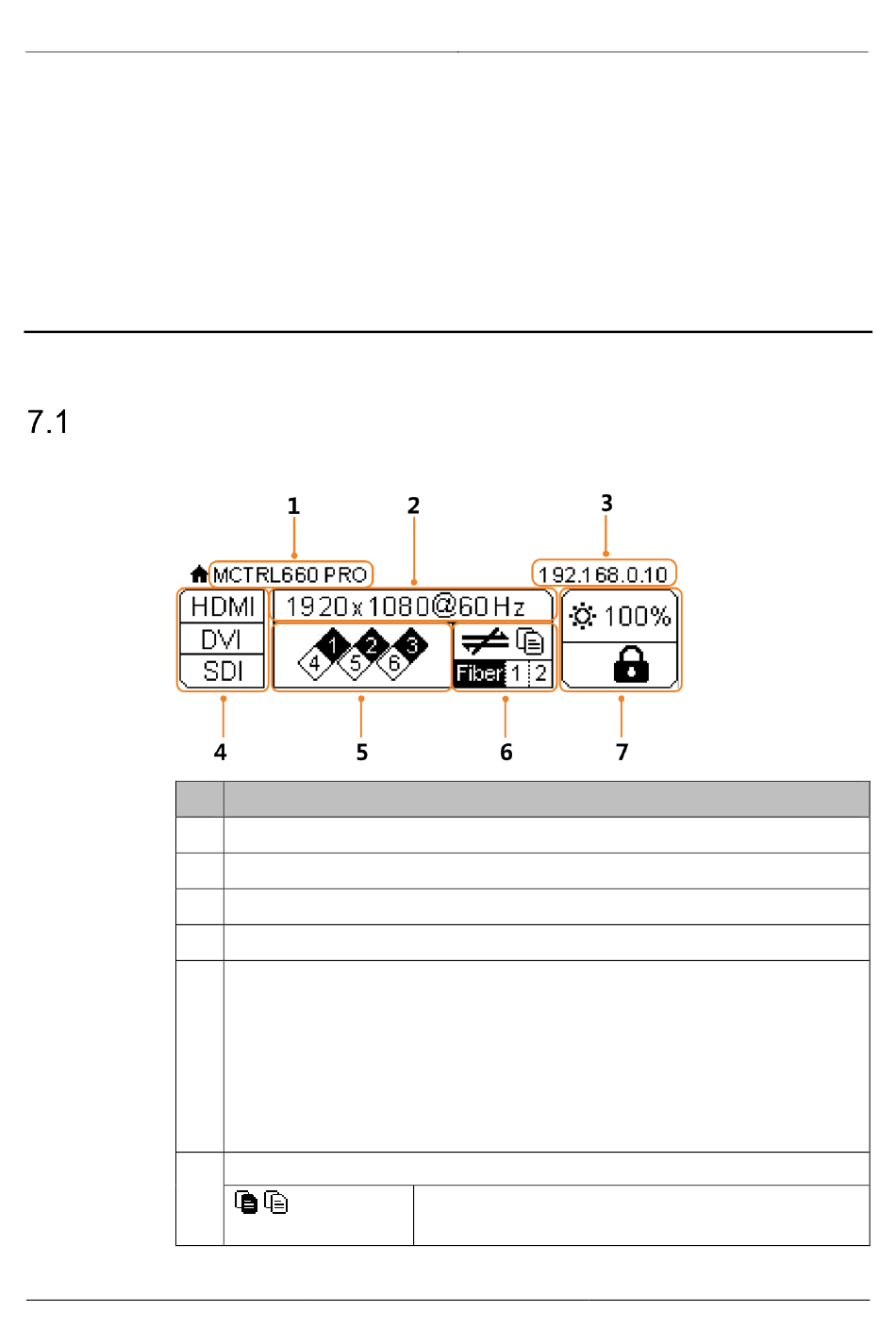

In the sending card mode, the home screen of the MCTRL660 Pro is shown below.
No.
1
2
3
4
5
6
www.novastar.tech
Description
1 Device name
2 The currently selected input source and its resolution and refresh rate
3 IP address
4 Different types of video sources and their connection statuses
5 Ethernet port connection status
 Always on: The Ethernet port connection works and the port serves as master.
 Off: The Ethernet port is not connected or the connection does not work.

A mark (not flashing) on top corner of icon: The Ethernet port is in redundancy
status, but the redundancy has not taken effect.

A mark (flashing) on top corner of icon: The Ethernet port is in redundancy
status and the redundancy has taken effect.
6 Operating status
/
7
The system configuration file is backed up/not backed
up.

7 Home Screen

Home Screen
