Fiber Converter Mode

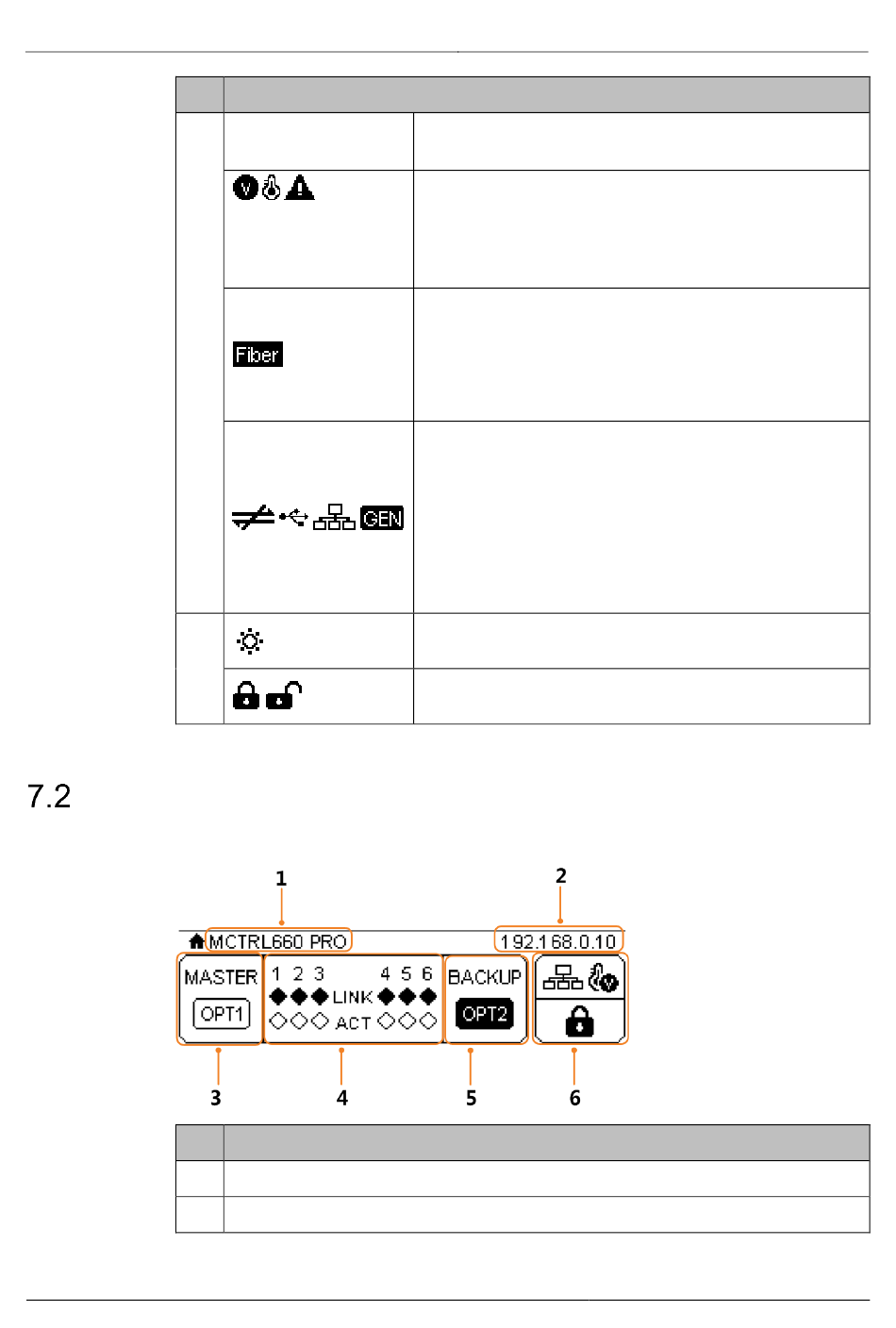

In the fiber converter mode, the home screen of the MCTRL660 Pro is shown below.
No.
1
2
www.novastar.tech
Description
/ /
1–2
/ / /
7
/
Description
1 Device name
2 IP address
(The voltage and temperature alarm status has the
display priority here.)
Voltage alarm / Temperature alarm / Voltage and
temperature alarms
(When there are no such alarms, the backup status is
displayed here.)
Optical port connection status:

Always on: The optical port connection works and the
port serves as master.

Off: The optical port is not connected or the
connection does not work.
Connection status of control ports:
Not connected / USB connected / Ethernet connected /
GENLOCK connected
When USB port, Ethernet port and GENLOCK
connector are all connected to the control computer,
their priority in control is GENLOCK > USB >
ETHERNET.
LED screen brightness
Buttons on the front panel are locked/unlocked.
