Working Mode

The MCTRL660 PEO allows you to switch between sending card mode and fiber
converter mode.
Sending Card Mode

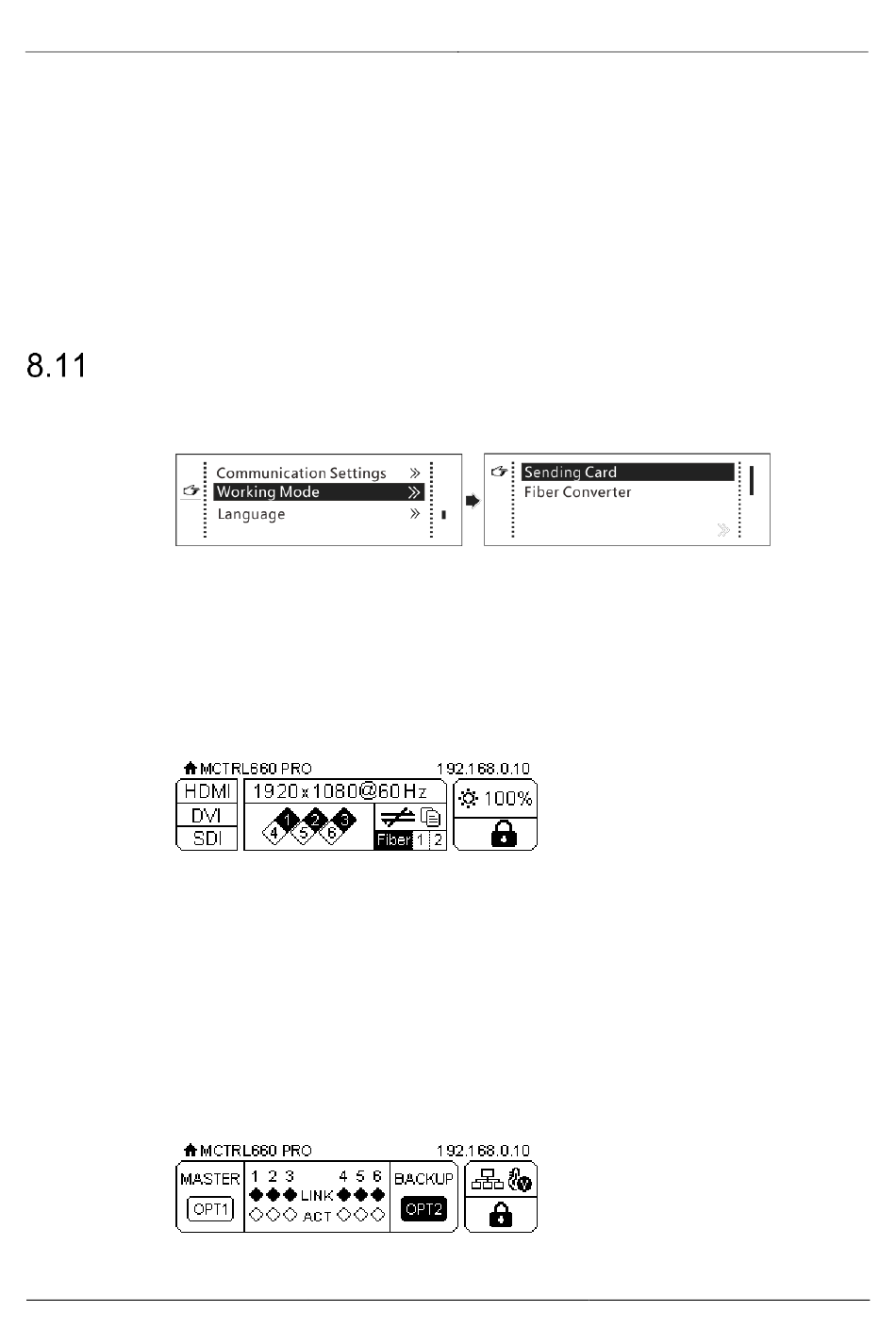

On the OLED menu screen, set the working mode as Sending Card. Both the optical
ports and Gigabit Ethernet ports can work as output ports to output video signals.
You can refer to
sending card mode is shown below.
Figure 8-21 Home screen in sending card mode
Fiber Converter Mode


On the OLED menu screen, set the working mode as Fiber Converter. The optical
ports (for input/output) and Gigabit Ethernet ports (for output/input) are used to
realize conversion between optical and electric signals. You can refer to
Application of Fiber Converter
shown below.
Figure 8-22 Home screen in fiber converter mode
www.novastar.tech
Communication mode: USB preferred and Local Area Network (LAN) preferred
The controller connects to PC via the USB port or ETHERNET port. If USB
Preferred is selected, the PC prefers to communicate with the controller via the
USB port, or else via the ETHERNET port.
Network settings can be manual or automatic.
Manual settings parameters include controller IP address and subnet mask.
−
Automatic settings can read the network parameters automatically.
−
Reset: Reset the network parameters to default values.
Scenario 1: Application of Sending Card
Only communication settings and working mode settings are available.
The temperature and voltage alarm ranges are the same as their last settings.
Mode. The home screen in fiber converter mode is
8 Menu Operations
Mode. The home screen in
Scenario 2:
