MCTRL660 PRO Independent Controller
User Manual

8.3.4 Image Offset

After configuring the screen, adjust the horizontal and vertical offsets (Start X and
Start Y) of the overall displayed image to ensure it is displayed in the target position.

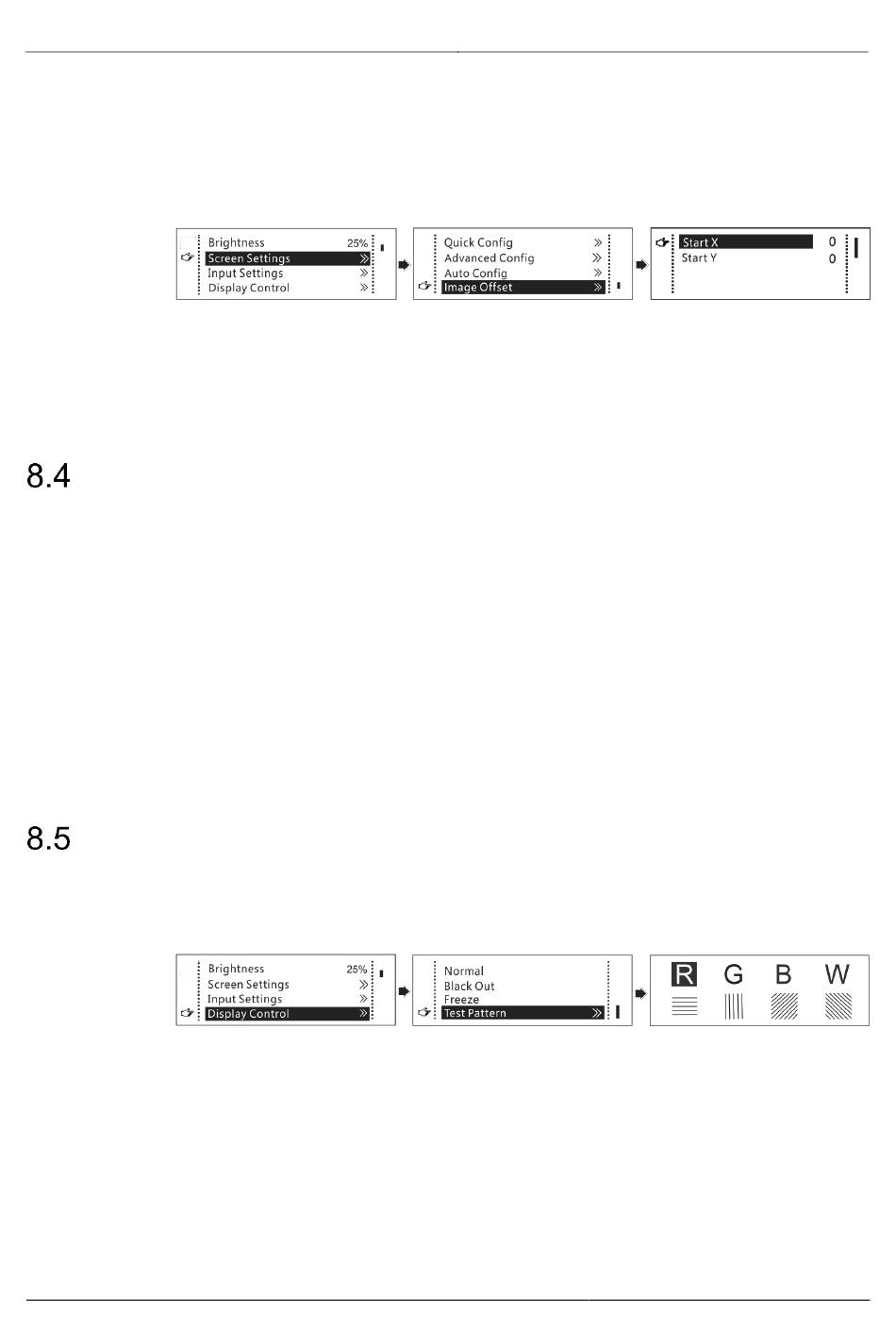

Figure 8-8 Image offset
Step 1 On the home screen, press the knob to enter the menu.
Step 2 Choose Screen Settings > Image Offset to enter its submenu.
Step 3 Set the Start X and Start Y values.

Input Settings

Set the input source and input resolution.
Input Source Settings
On the OLED menu screen, select an input source that matches the type of the
inputted external video source. Only one video input source can be selected at the
same time. For details, see
Input Resolution Settings
Set a preset or custom resolution for the selected input source. For details, see
Step 2 Setting Input

Display Control

Control the status of display on the LED screen.
Figure 8-9 Display control
Normal: The LED screen displays the current input source normally.
Black Out: The LED screen goes black and does not display input source still being
played in the background.
Freeze: The LED screen always displays the frame when frozen. The input source is
still being played in the background.
Test Pattern: Test patterns are used to check the display effect and pixel operating
status. There are 8 test patterns, including pure colors and line patterns.
www.novastar.tech
8.1.1 Step 1 Setting Input
Resolution.
8 Menu Operations
Source.
8.1.2
18
