8.8.1 Mapping Function

When mapping function is enabled, each of the cabinets will display its cabinet No.
and the No. of the Ethernet port that loads the cabinet.
Note: Receiving cards used by the system must support mapping function.

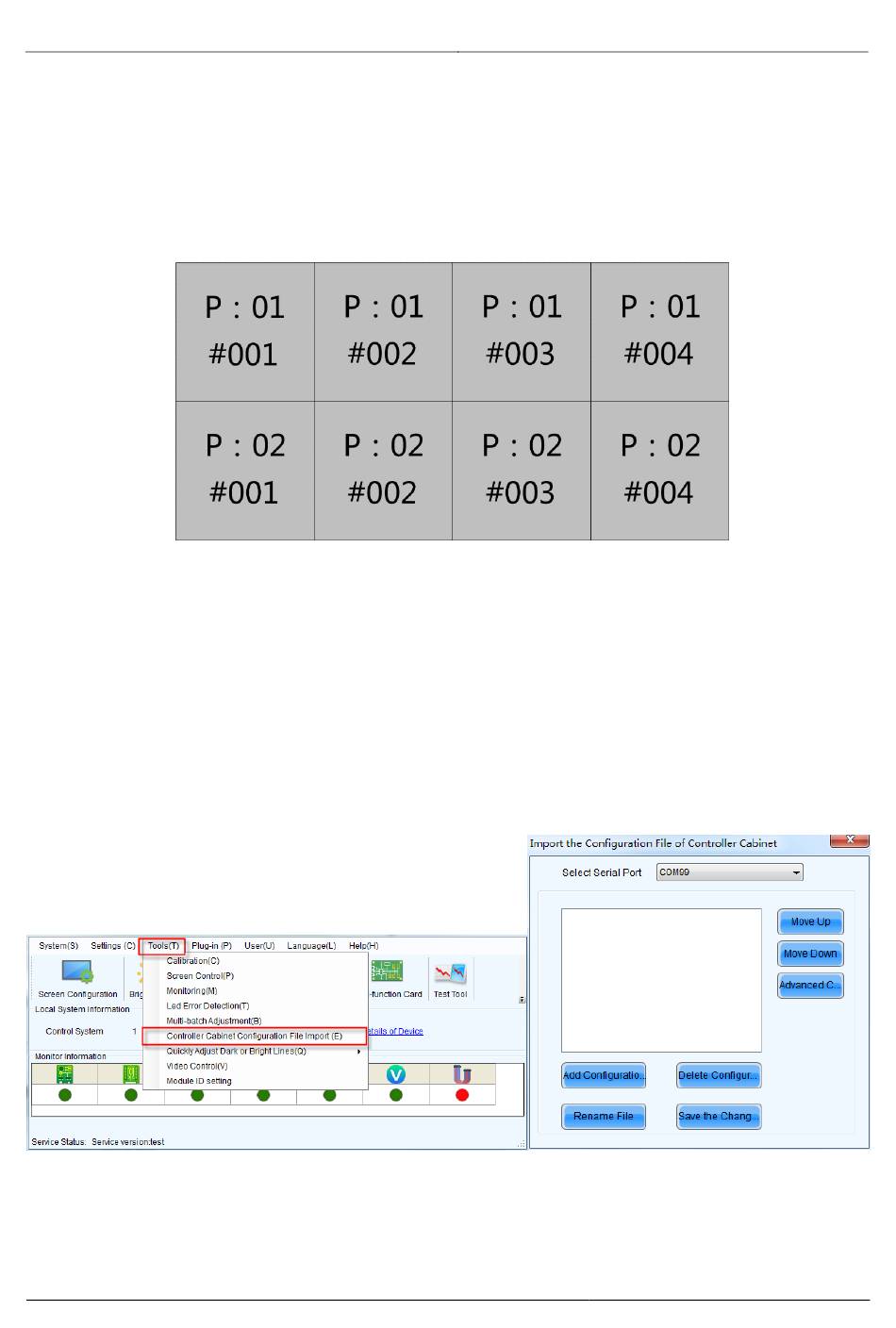

Figure 8-18 Illustration of mapping function
Example: P: 01 indicates the Ethernet port No. #001 indicates the cabinet No.

8.8.2 Loading RCFG Files

Before you begin: Save the cabinet configuration file (*.rcfgx or *.rcfg) to the local PC.
Note: Configuration files of irregular cabinets are not supported.
Step 1 Run NovaLCT and choose Tools > Controller Cabinet Configuration File Import.
Step 2 On the displayed page, select the currently used serial port or Ethernet port, click
Add Configuration File to select and add a cabinet configuration file.
Step 3 Click Save the Change to HW to save the change to the controller.
