- Page 1 Document number: NOVA2013-MCTRL660-HB-01 Version: V1.2.0 M3 Controller MCTRL660 User Manual...
- Page 2 1 Overview MCTRL660, NovaStar's latest independent master control, is mainly applied to screen leasing. It adopts an innovative architecture to implement smart configuration; the screen debugging can be completed within 30 seconds. It adopts the Nova G4 engine; the screen is stable and flicker free without scanning lines;...

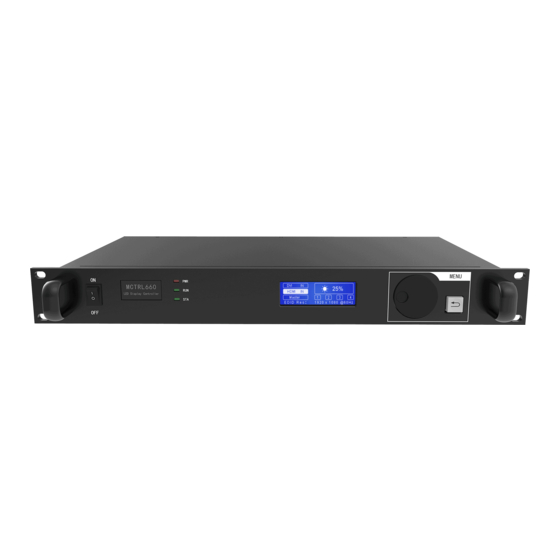

- Page 3 2 Product Appearance and Interfaces PWR: Indicate the power indicator. Operation screen: RUN: Indicate equipment running indicator 1. It blinks quickly when no video source is available and blinks normally when a video A. Indicate access of a video source on the source is available.
- Page 4 3 Operation Instructions All operations on the MCTRL660 are implemented through the button and return key. Button: Press the button to enter a menu. After entry into a menu, rotate the button to adjust the value or select a submenu.
- Page 5 4 Procedure 4.1 Step 1: Connecting the Hardware Connect the hardware by referring to the interface description in Chapter 2. 4.2 Step 2: Screen Configuration The screen being power-on, if the cabinet is in normal display, enter into step 2); if the cabinet is in abnormal display, first load the cabinet file, and fix it to the receiving card;...
- Page 6 network interfaces. For details, see precautions for screen setting Set the alignment of the screen. Pay attention to precautions for screen setting iii), iv) and v) below. d) Set the resolution of the video source. Precautions for screen setting: If the number of network interfaces with Example: loads is n (n≤4), the first n-1 network For example, if network interface 1, network interface...
- Page 7 During connection setting, you must ensure that the connection of each network interface is downward in the same direction. During connection setting, you must ensure that network interface 1 is the start position of the whole connection. 4.3 Step 3: Adjusting the Brightness of the Screen Return to the main menu interface.
- Page 8 4.5.1 load Cabinet Files After the screen is powered on, if the cabinet fails to display normally, you must load cabinet files first. The cabinet files must be sent to the MCTRL660 through the NovaLCT-Mars beforehand. The following figures show the procedure:...
- Page 9 Select the corresponding COM port of the MCTRL660.
- Page 11 Files”and the Press the button again. as shown in the following figures. The cabinet files imported by the NovaLCT-Mars already exist in the MCTRL660. Select the cabinet file of the corresponding specifications and then press the button to send the file to all the cabinets of the MCTRL660.
- Page 12 Press the return key to return to the “Advamced Setting” submenu. Rotate the button to select “Save To Hardware” and then press the button to fix the cabinet file to the receiving card. 4.5.2 Other parameters Press the return key to return to the main menu. Rotate the button to select Advanced Setting and then press the button.
- Page 13 Offset Adjust the initial coordinate of pictures on the screen. Image Quality Adjust Gamma, Contrast, Saturation and Hue of the screen. Redundancy Backup Set this controller to the master mode or backup mode when the system has multiple controllers.
- Page 14 This parameter is set to be off by default. To successfully enable this function, you must load the configuration files first. Currently, only non-pulse-width modulation (PWM) chips are supported. Restoring Factory Settings Restore to the factory Settings for the MCTRL660. 4.6 Display control Normal...
- Page 15 Black Out The screen is black out, then the home page display of MCTRL660 operation screen is as follows: Freeze Screen freezes, then the home page display of MCTRL660 operation screen is as follows: Test Mode The screen shall be tested through four colors (red, green, blue and white) and four shapes.
- Page 16 4.7 Language Setting 5 Hardware Program updating MCTRL660 connect to a computer , and run NovaLCT-Mars on this computer, Login as an advanced user and type in admin on the NovaLCT-Mars main interface to open the page for updating the hardware...
- Page 18 Current Serial Port Select the serial port through which the hardware to be updated is connected to the computer. Program Path Select the program to be loaded to the hardware here. Sending Board MCU Select this option if the MCU program of a sending board is to be updated. Sending Board FPGA Select this option if the FPGA program of a sending board is to be updated.
- Page 19 Select this option if the FPGA program of a scan board is to be updated. Change Click this button to load the selected program to the selected hardware. Refresh All If this option is selected, the version information of all sending boards and scan boards connected to the current serial port will be refreshed when click the Refresh button.
