MCTRL660 PRO Independent Controller
User Manual

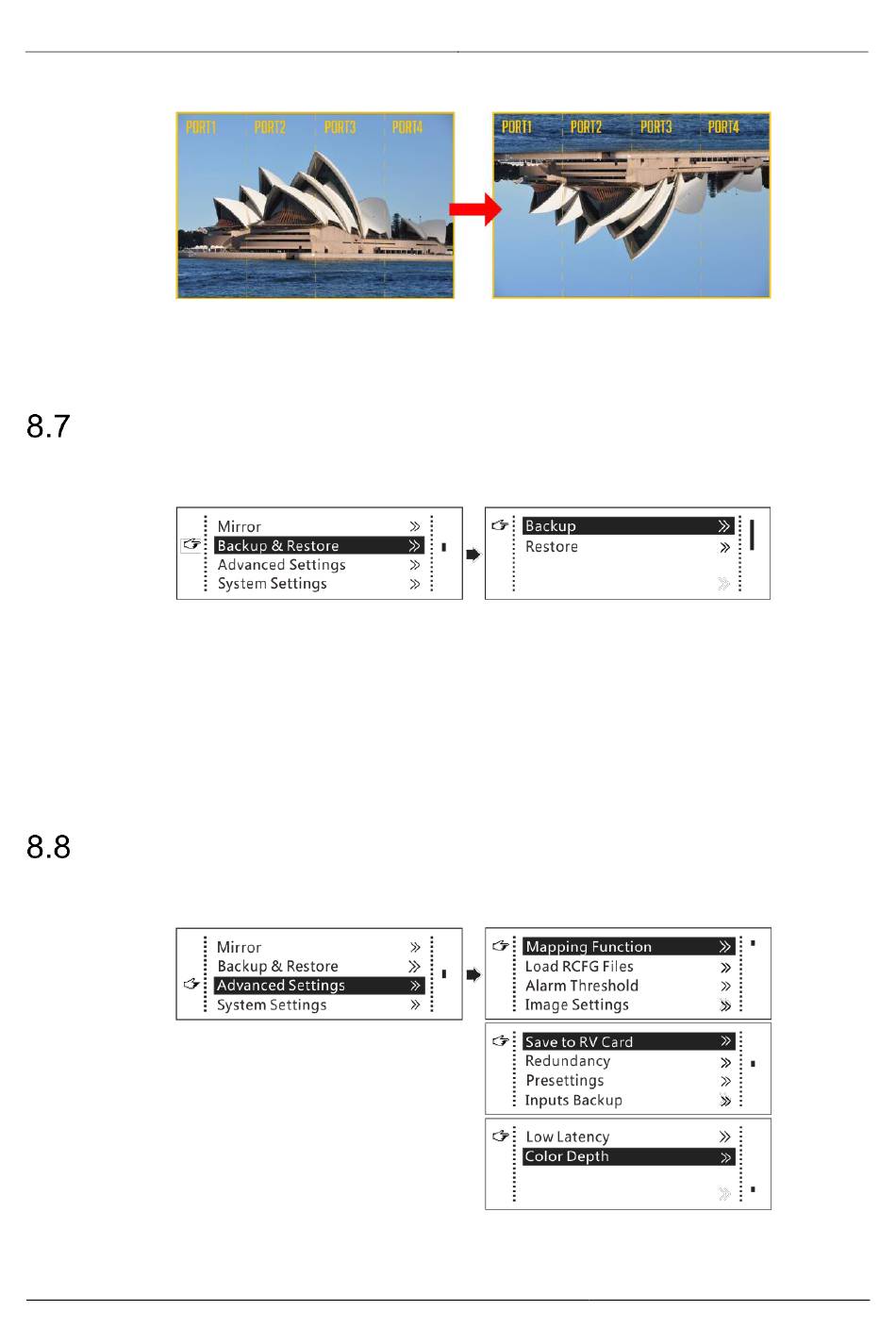

Figure 8-15 Top-bottom mirroring of the entire image
As shown above, after you set the mirroring mode as top-bottom for Ethernet ports 1-
4, the entire image is mirrored vertically.
Backup and Restore
Figure 8-16 Backup and restore
System configuration includes configuration files of the sending card (namely the
controller) and receiving cards.
Advanced Settings
Figure 8-17 Advanced settings
www.novastar.tech
Back up the system configuration to the controller.
Restore the system configuration from the controller.
Restore the receiving card configuration from the controller.
Restore the sending card configuration from the controller.
8 Menu Operations
21
