8.8.8 Inputs Backup

Set a backup video source for each primary video source. Other input video sources
supported by the controller can be set as backup video sources.
After a backup video source takes effect, the video source selection is irreversible.
Table 8-2 Video source backup
Backup No.
Backup 1
Backup 2
Backup 3

8.8.9 Low Latency

Low latency is used to reduce the time delay between the input of video signal to the
controller and the corresponding output. To enable low latency, you need to set the
horizontal resolution loaded by a single Ethernet port less than or equal to 512 pixels.
Low latency cannot be enabled with any of the following functions at the same time.




8.8.10 Color Depth

Set the color depth of input source, including 8 bit, 10 bit and 12 bit.
Constraints: SDI video sources do not support adjustment of input color depth.

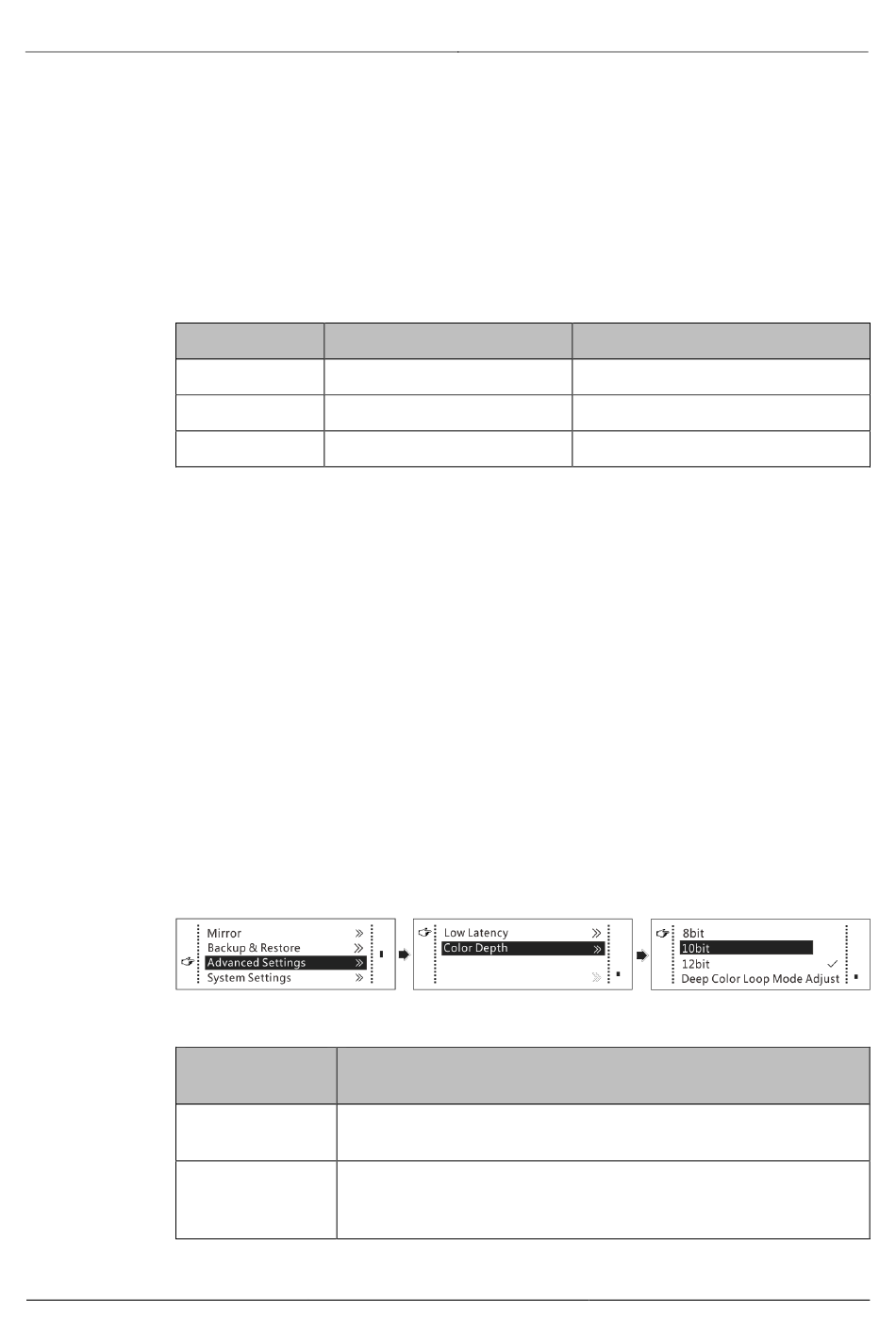

Figure 8-19 Color depth
Table 8-3 Input color depth adjustment
Color Depth of
Input Source
8bit
10bit
www.novastar.tech
Load: Read back the parameters from the saved preset.
Delete: Delete the parameters saved in the preset.
Primary Video Source
SDI
HDMI
DVI
Image mirroring
Input of interlaced SDI video sources
GENLOCK
Description
Input of 8-bit input source does not change the controller's loading
capacity. You cannot perform deep color loop mode adjustment.
Input of 10-bit input source reduces the controller's loading
capacity by half. You can perform deep color loop mode
adjustment.
8 Menu Operations
Backup Video Source
NULL/DVI/HDMI
NULL/DVI/SDI
NULL/SDI/HDMI
