MCTRL660 PRO Independent Controller
User Manual

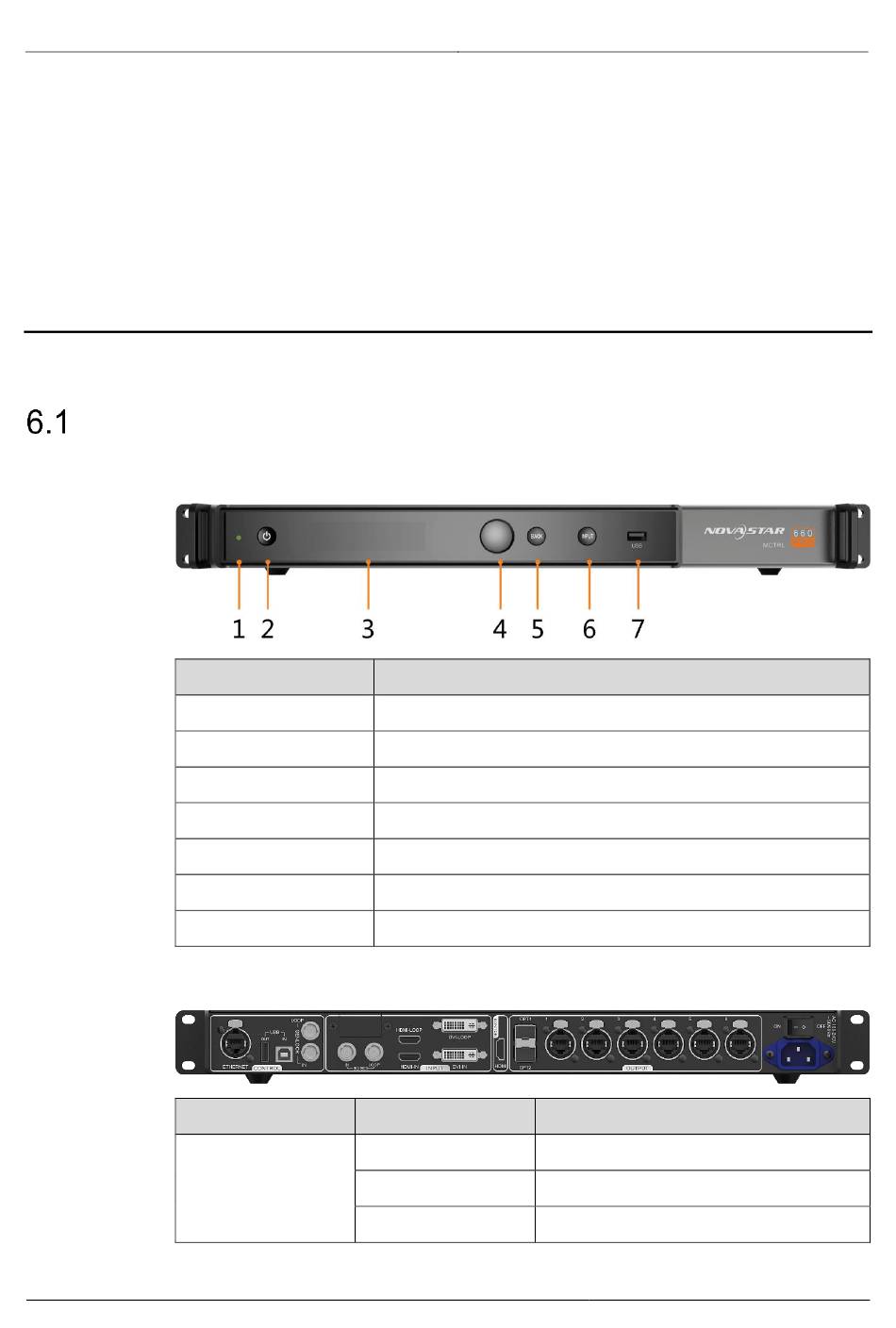

Appearance
6.1.1 Front Panel
No.
1
2
3
4
5
6
7
6.1.2 Rear Panel
Connector Type
Input
www.novastar.tech
6
Hardware Structure
Description
Operating indicator
Standby button
OLED operation screen
Function knob
BACK button: Press to go back to previous menu.
INPUT button: Press to choose a video source.
USB port: Used to update firmware
Connector Quantity
1
1
1
6 Hardware Structure
Connector Name
DVI IN
HDMI IN
3G-SDI IN
8
