MCTRL660 PRO Independent Controller
User Manual

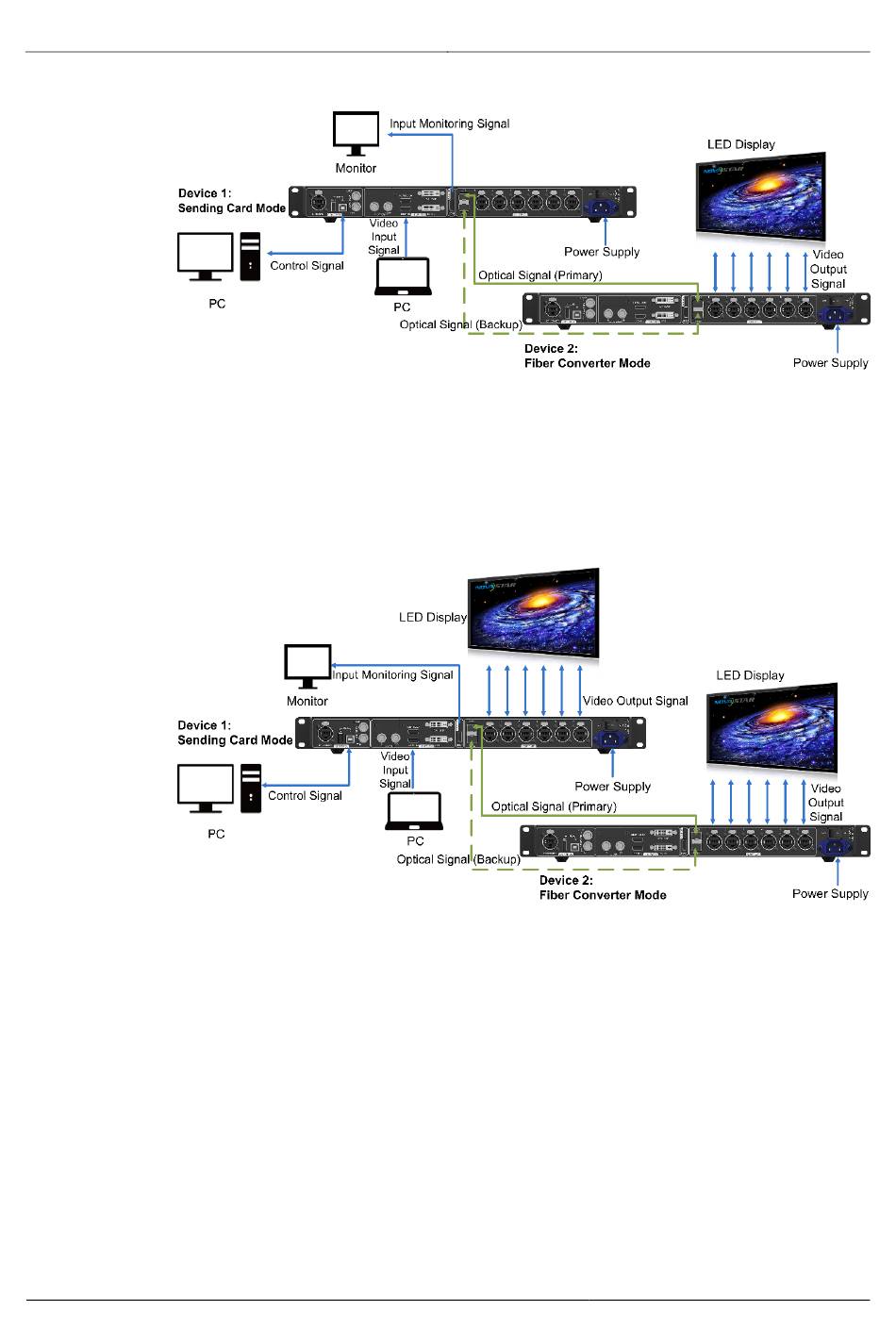

Figure 4-2 Application of fiber converter mode
Scenario 3: Application of Dual-Output Working Mode
Set the working mode for the two devices respectively, as shown in
Device 1 uses the optical ports and Gigabit Ethernet ports to output video signals at
the same time.
Figure 4-3 Application of dual-output working mode
www.novastar.tech
4 Applications
Figure
4-3.
6
