Screen Settings

Besides Quick Config, Advanced Config and Image Offset can be done as well in
Screen Settings.

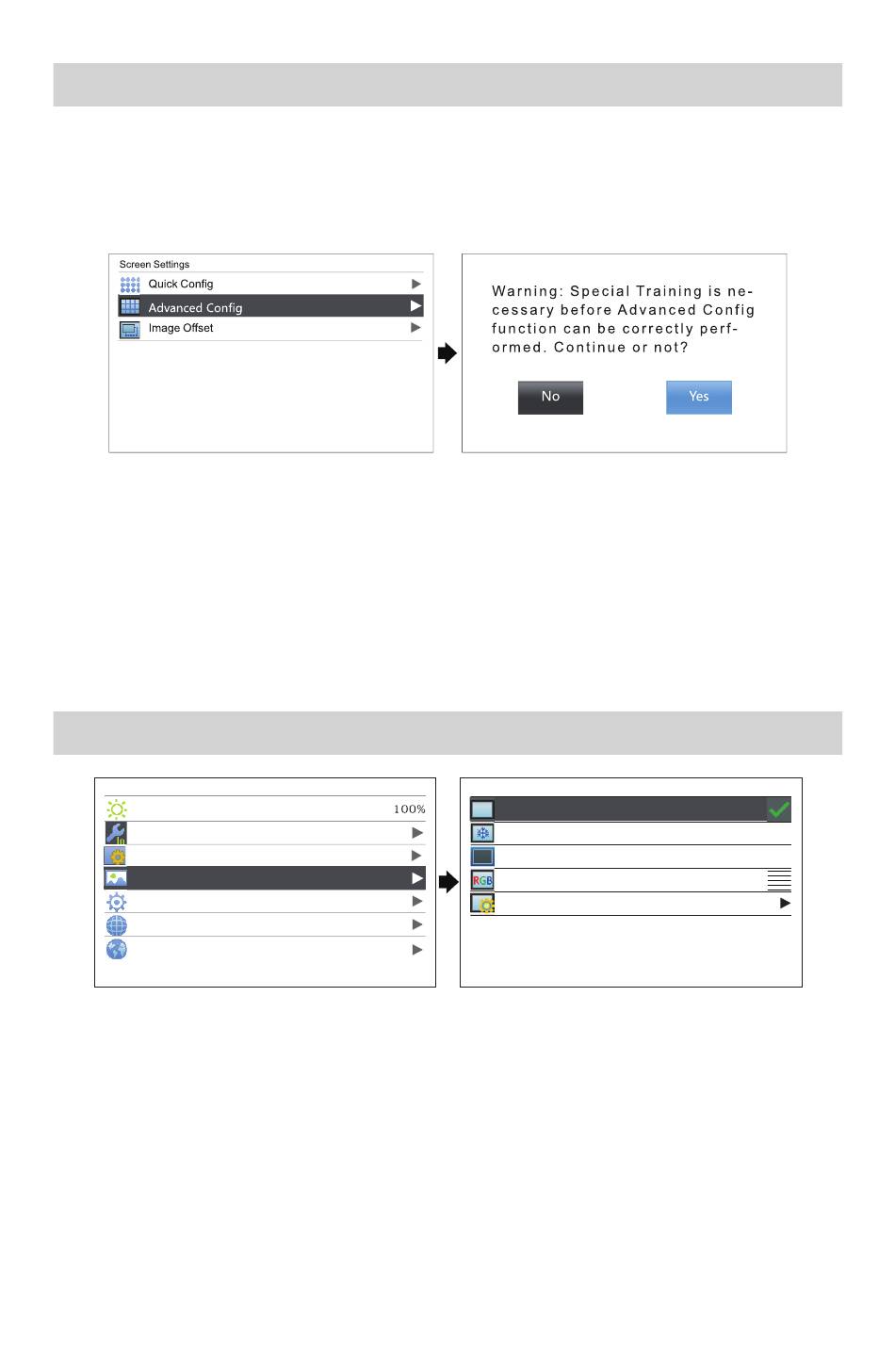

Advanced Configuration
Choose Yes to get into Advanced Config page. Choose Enable to set the loading
capacity of each Ethernet port, which includes the settings of Cabinet Row QTY,
Cabinet Col QTY, Start X(horizontal offset), Start Y(vertical offset) and Data Flow.
Image Offset
Start X(horizontal offset) and Start Y(vertical offset) of the total picture loaded by
the controller can be set in this option.

Display Control

Main
Brightness
Input Settings
Screen Settings
Display Control
Advanced Settings
Communication Settings
Language
Normal: Play the content of current input source normally
ƒ
Freeze: Freeze current content.
ƒ
Black Out: The LED screen becomes dark and displays nothing.
ƒ
Test Pattern: It includes eight types of test patterns such as pure color and line
ƒ
pattern etc.
Image Settings: Set the brightness of red, green and blue, color temperature,
ƒ
Gamma value as required. Adjust these options to the values you are satisfied
with, and then save them to hardware.
MC TRL 4 K U s e r ' s M a n u a l
-9-
Display Control
Normal
Freeze
Black Out
Test Pattern
Image Settings
