Wiring

In the 8U cabinet, the PDI backplane cannot be used to provide 24V signal power to the T-GEN 60. Power the
T-GEN 60 and 100V modules from the APS VAUX outputs paralleled together as detailed in the Installation
Instructions LT0667, LT0668 and LT0671.

Adding a T-GEN 50 on a legacy bracket

Use the 4100-0766K module to mount a T-GEN 50 tone generator in the 8U or 15U expansion cabinets.
Mount the module in a legacy motherboard position, using the screws and barrel nuts supplied.
The 4100-0776K module is self-supporting and does not require a retaining bar. If a retaining bar is already
fitted, the 4100-0776K module is compatible with it.
Note:
Because of the width of the T-GEN 50, the 4100-0766K bracket occupies two legacy card
positions.

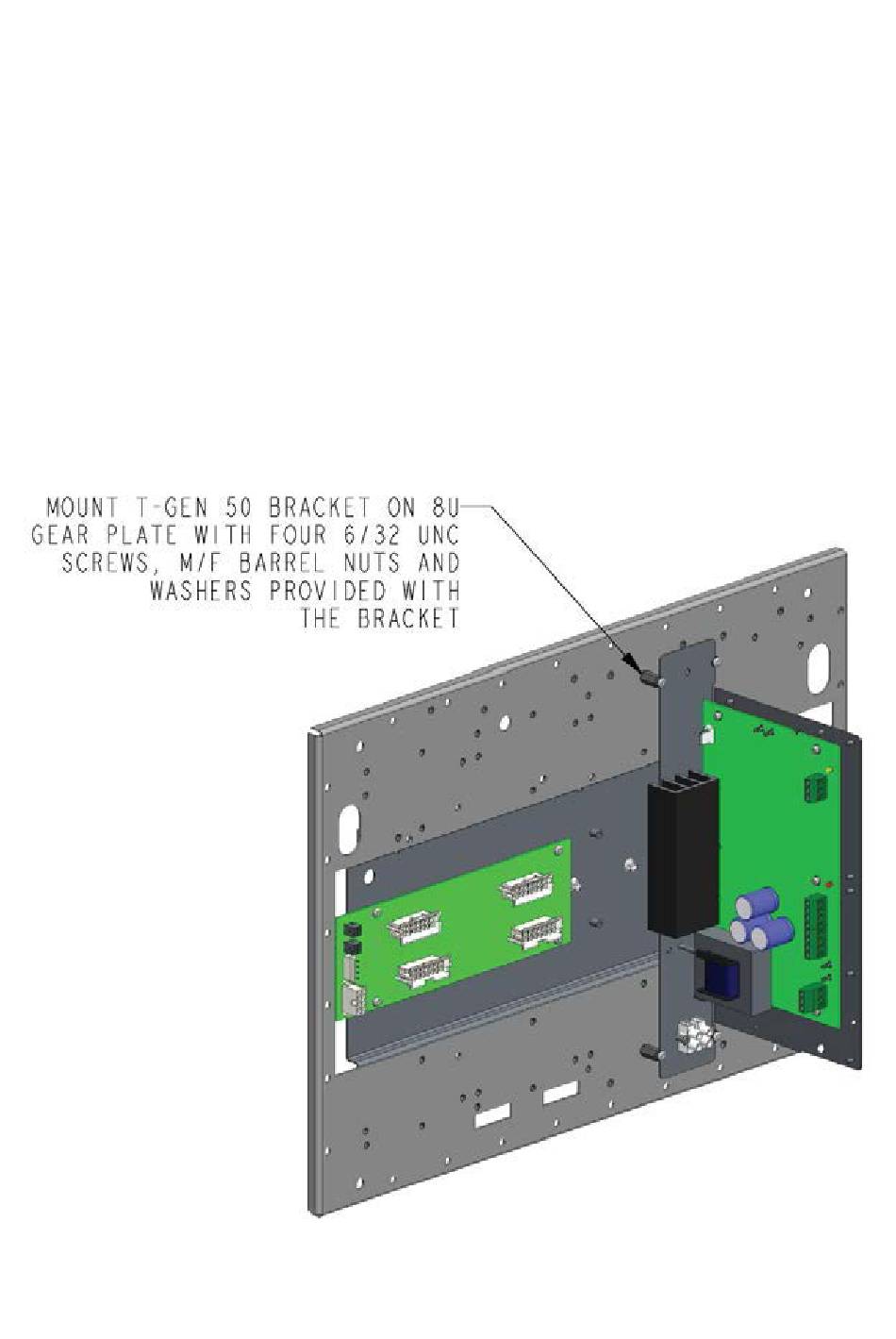

Figure 26. Mounting the T-GEN 50 bracket on an 8U gear plate.
