Figure 34. 8U Panel gear plate mounting

There are four possible mounting positions for the ME0516 in an 8U expansion cabinet. The recommended

mounting position for the 4100-6072/6073 SM Fibre Modem is at the left, see

Panel connection

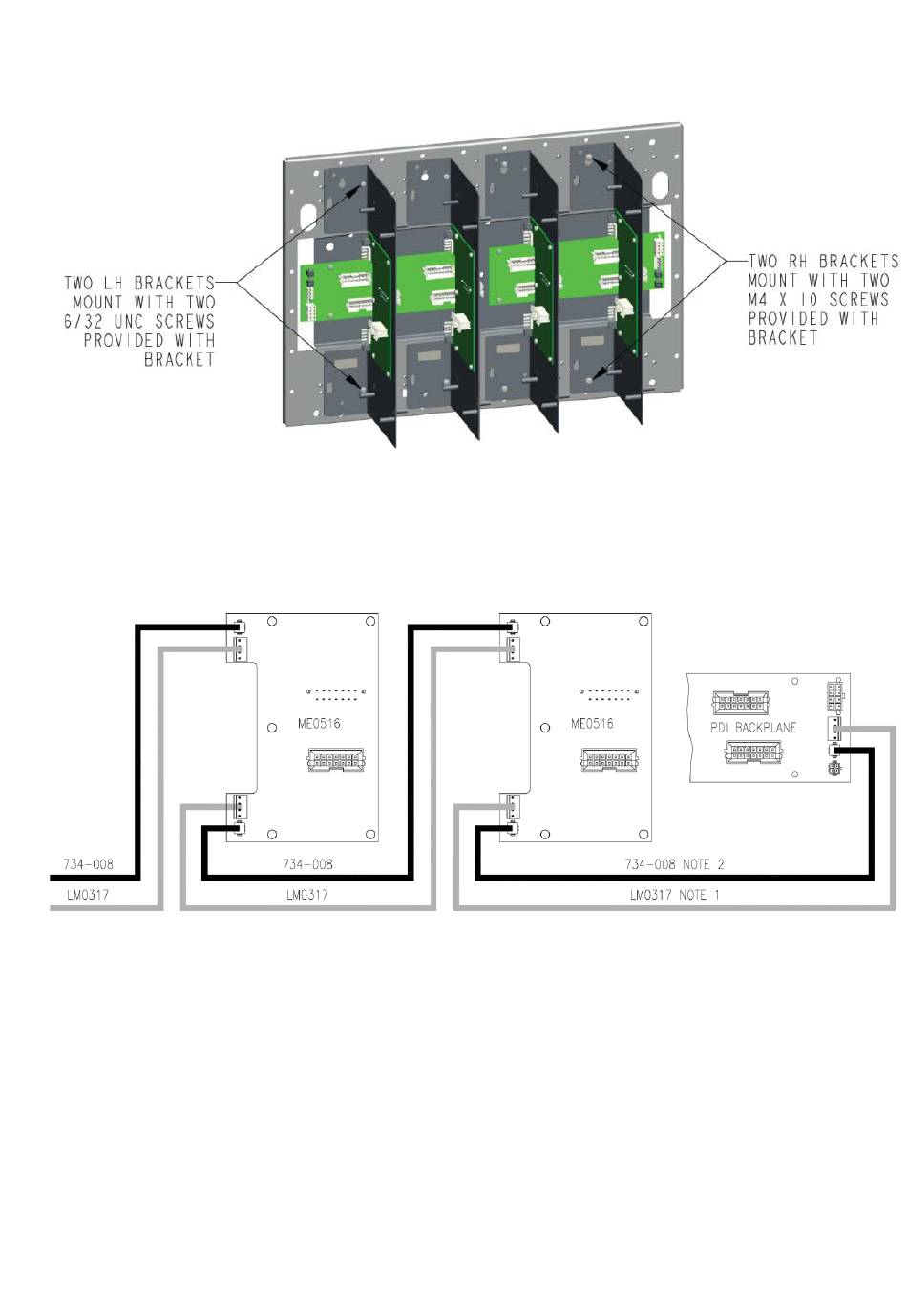

Figure 35. Connection of Dual PDI Card Brackets to a panel backplane in 15U or 8U cabinets

Notes:

1. A LM0317 Signal Power Loom is required to power 4100-6077AU MX Loop Cards. It is not

required for other cards. It is compatible with 15U and 8U cabinets. The PDI backplane in the

expansion bay of large rack cabinets is not compatible with the LM0317 Signal Power Loom.

2. A 734-008 Power/Comms loom connects to the ME0516 PCB for all PDI cards except the

4100-6072/6073 SM Fibre Modem. A 734-008 Power/Comms loom connects directly to

4100-6072/6073 SM Fibre Modems. A second 734-008 loom is required to link between

two SM modem cards. These cards must be at the end of a daisy chain connection because the

communications signals are not connected through the modem cards.
