Note:

Legacy style cards cannot be fitted in the 15U cabinet, except for a CPU and NIC in the single

motherboard mounting position, refer to

For information about wiring the cards refer to the appropriate wiring diagrams in LT0432 4100ESi Field

Wiring Diagrams.

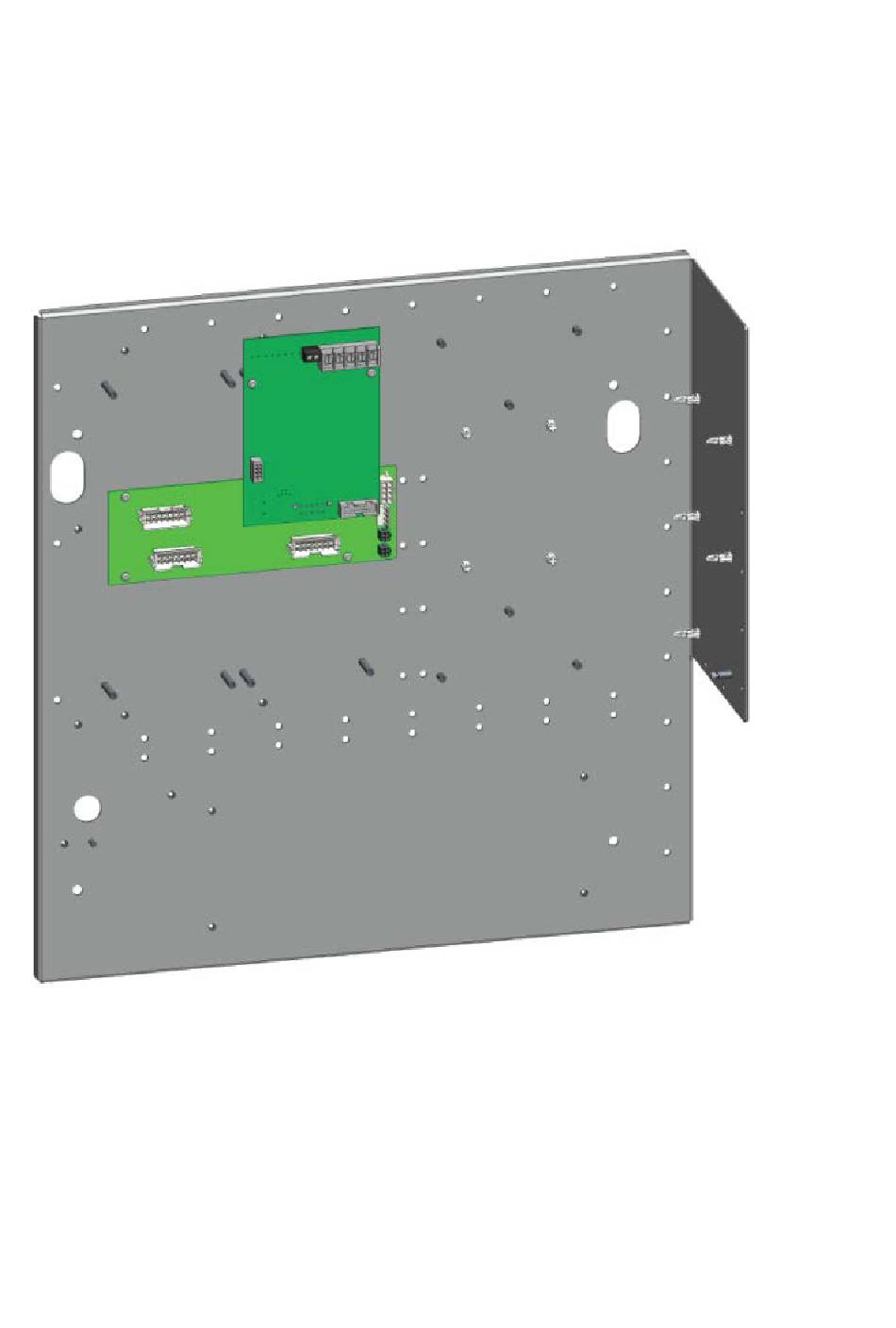

Figure 6. PDI card mounted on backplane in the 15U cabinet

CPU and motherboard features

on page 13.
