Adding a T-GEN 60 in an Expansion Cabinet

Mounting in 15U expansion cabinet

An FP1115 T-Gen 60 can be added to a 15U expansion cabinet by mounting it on the right hand side flange.
An FP1117 100V Switching Module or FP1118 100V Splitter Module can also be added to the 15U
expansion gearplate in the lower right corner. Refer to section Adding a T-GEN 60 for details.

Mounting in 8U expansion cabinet

To mount the T-Gen2 and 100V Switching/Splitter Modules in PDI-based cabinet's two specific mounting
brackets are required in addition to the T-GEN and 100V modules:
FP1119 FP, 4100ESi,T-GEN 60/120 BRKT,C/W POWER LOOM & LIT
FP1120 FP, 4100ESi,2 X 100V SWT MODULE BRKT,C/W LIT & MTG
The FP1086 8U cabinet with blank door can contain one T-Gen 60 or T-Gen 120 mounted on an FP1119
bracket, plus two 100V Switching/Splitter Modules mounted on an FP1120 bracket, as well as an ME0504
10A APS. Figure 25 T-GEN 60 and 100V Switching Modules in 8U cabinet with APSFigure 25 shows the
necessary arrangement.

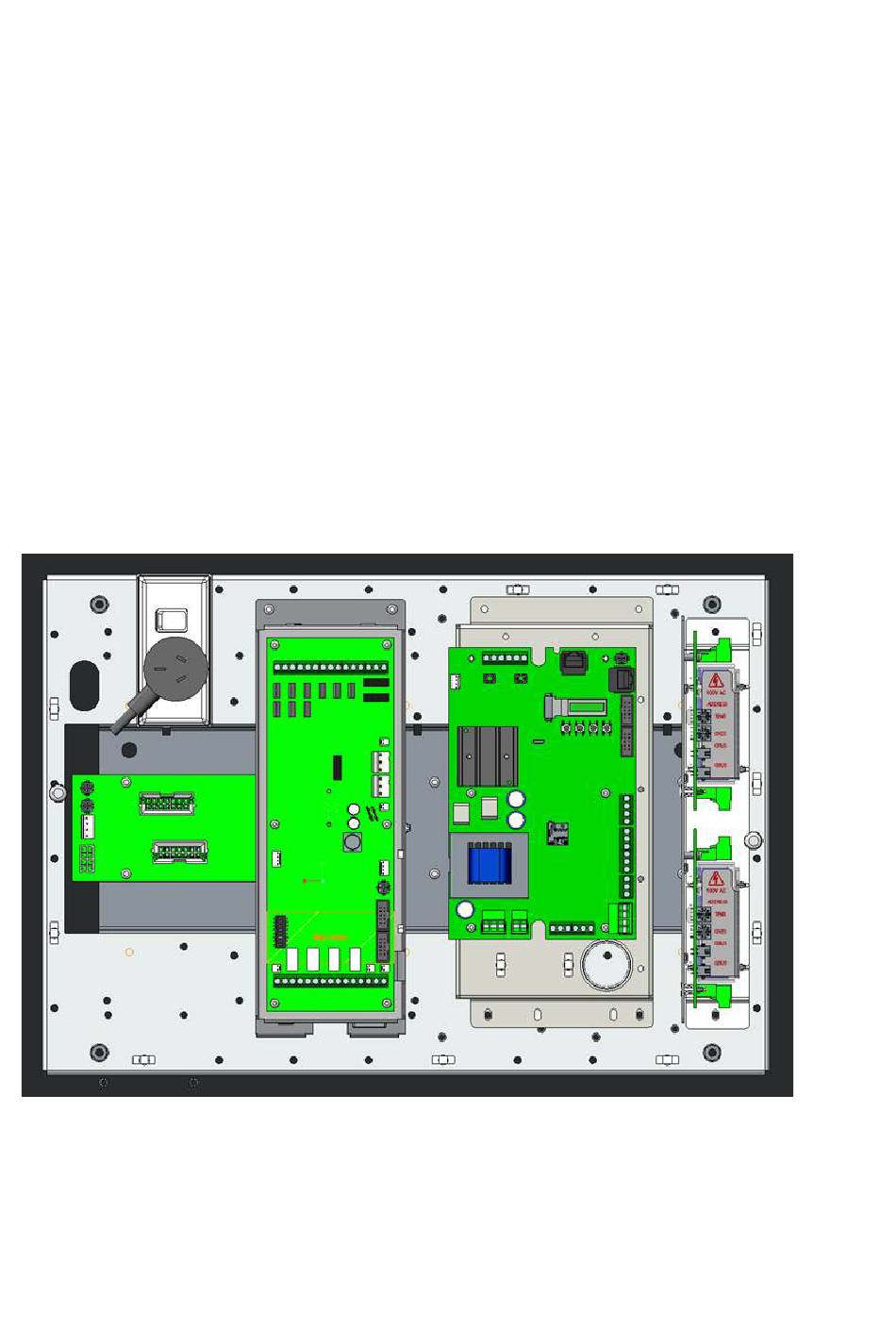

Figure 25 T-GEN 60 and 100V Switching Modules in 8U cabinet with APS
If more than one T-GEN 2 module is required for a small 4100ESi panel, it is usually more practical to use a
BOWS cabinet with its own PSU (FP1136 or FP1137).
The FP1119 T-Gen2 bracket is mounted to the gearplate according to its installation instructions (LT0669).
The FP1120 100V Module Bracket is mounted to the RHS of the frame using the legacy bracket mounting
positions in the PDI gearplate according to the Installation Instruction (LT0670).
