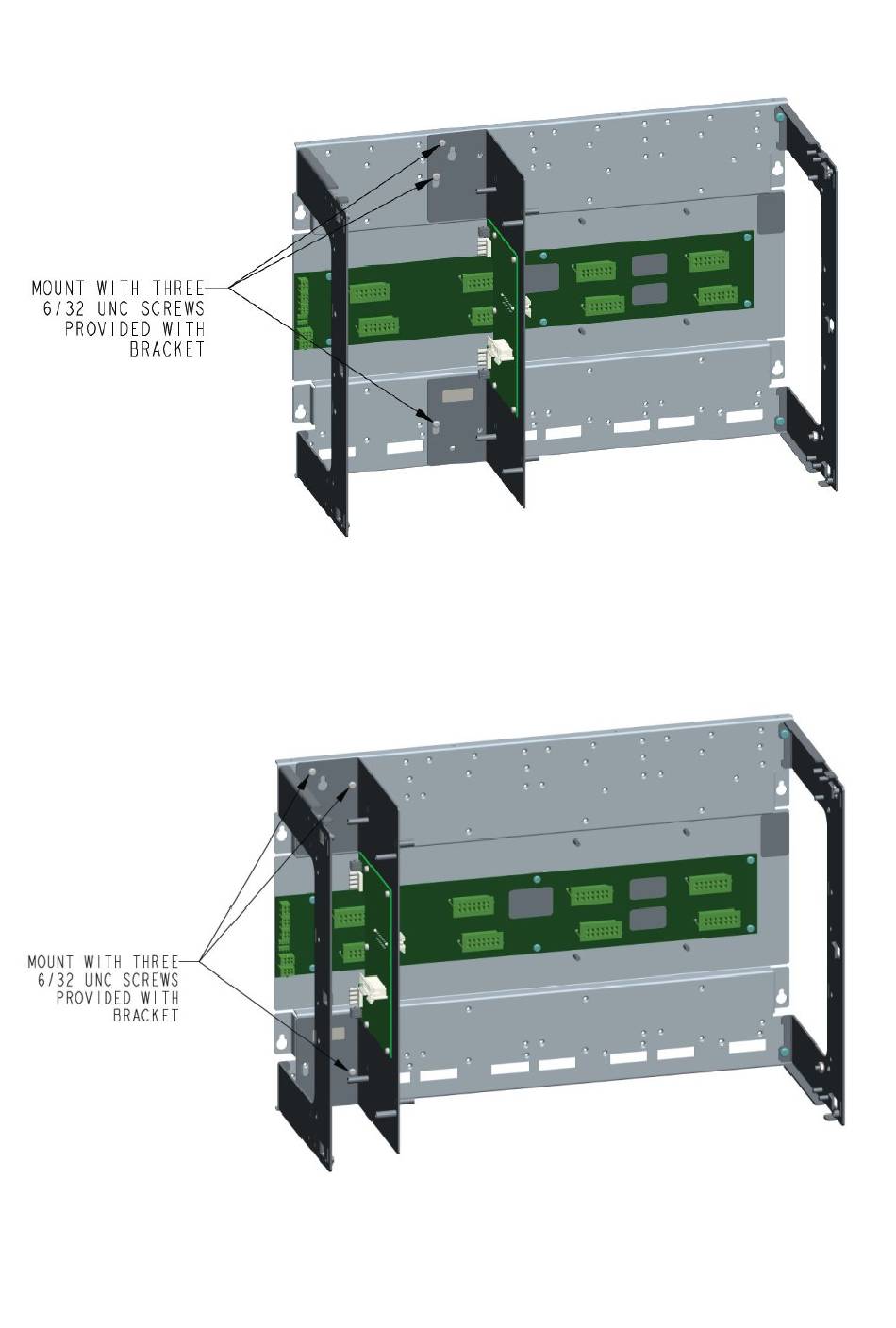

Figure 32. Expansion Bay mounting
Expansion Bay mounting in four possible positions. The recommended expansion bay mounting for
4100-6072/6073 SM Fibre Modems is at the left to avoid colliding with other cards due to the overhang, see
Figure 33.
Figure 33. Expansion Bay mounting for 4100-6072/6073 SM Fibre Modems
Mount the 4100-6072/6073 SM Fibre Modems on the left side of the expansion bay for best packing of the
equipment.
46
