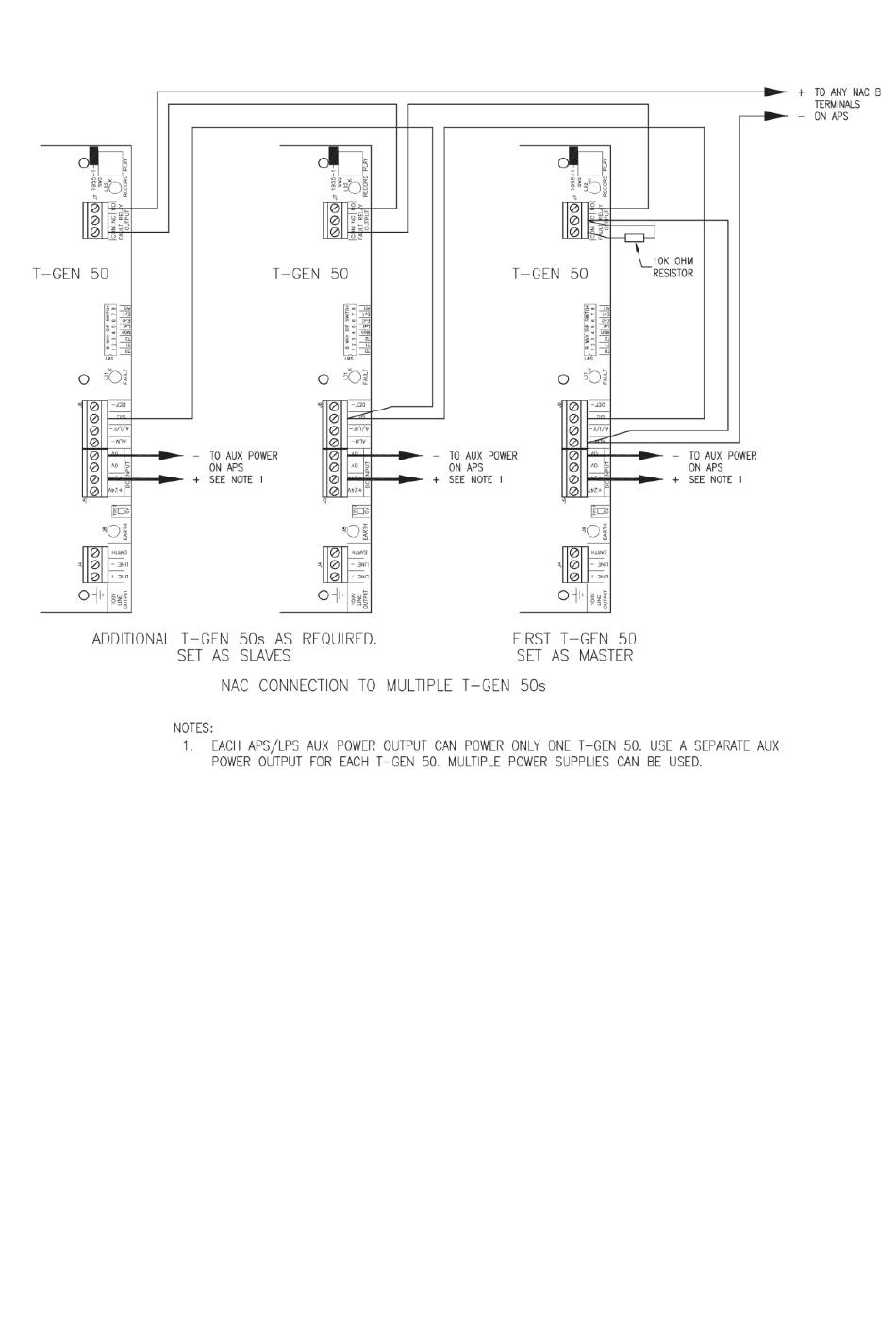

Figure13. Multiple T-GEN 50 wiring to the NAC

Adding fan controls or displays

The 4100ESi 15U Compact panel is supplied with one 7U display door, in addition to the touchscreen

interface. The door is supplied fitted with 8 blank plates which completely fill the opening in the display door.

These blank plates can be replaced with alternative modules for various functions, such as:

⋅

Switch/LED indicator modules for displaying the alarm and disable status for eight zones. These can also be

used for other display or control functions.

⋅

AS1668 fan controls for four fan systems.

⋅

Mounting plates for the ASE brigade transmission equipment and PA microphone.

The Switch/LED indicator modules are configured using the ES Programmer. Each display module contains

between 8 and 24 switches and LEDs that are configured individually. See

display modules.

Appendix F

for a list of available
