Adding a Network Interface Card
A Network Interface Card (NIC) is required to add the 4100ESi Compact panel to a networked fire alarm
system. Install the NIC card in the unused, left hand edge connector position on the CPU motherboard.

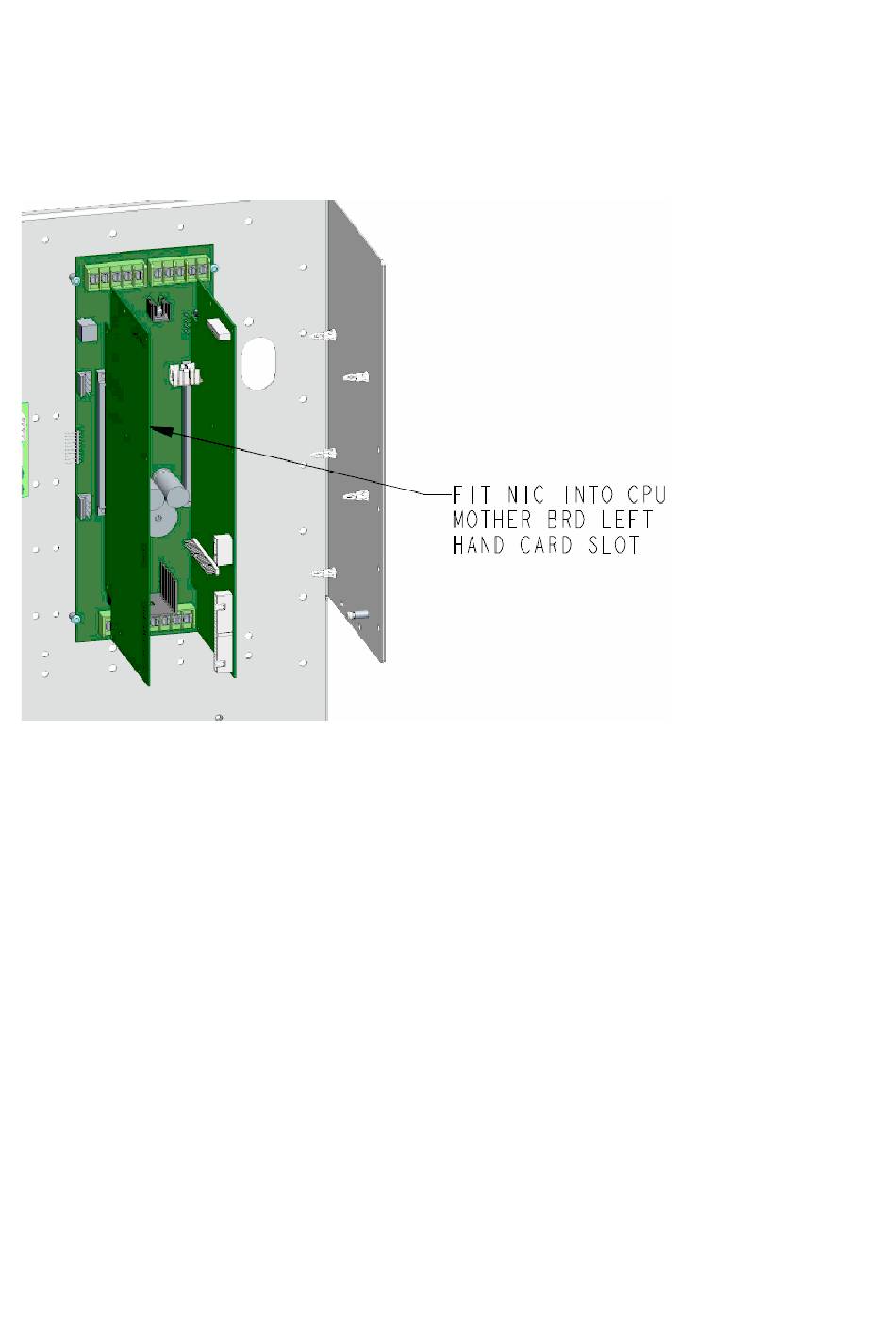

Figure 7. 4100-6078 NIC in the 15U cabinet
For more information about installing the media modules and wiring the network cables, refer to
Chapter
6,
Network card installation.
20
