Summary of Contents for Simplex 4100ES-S1

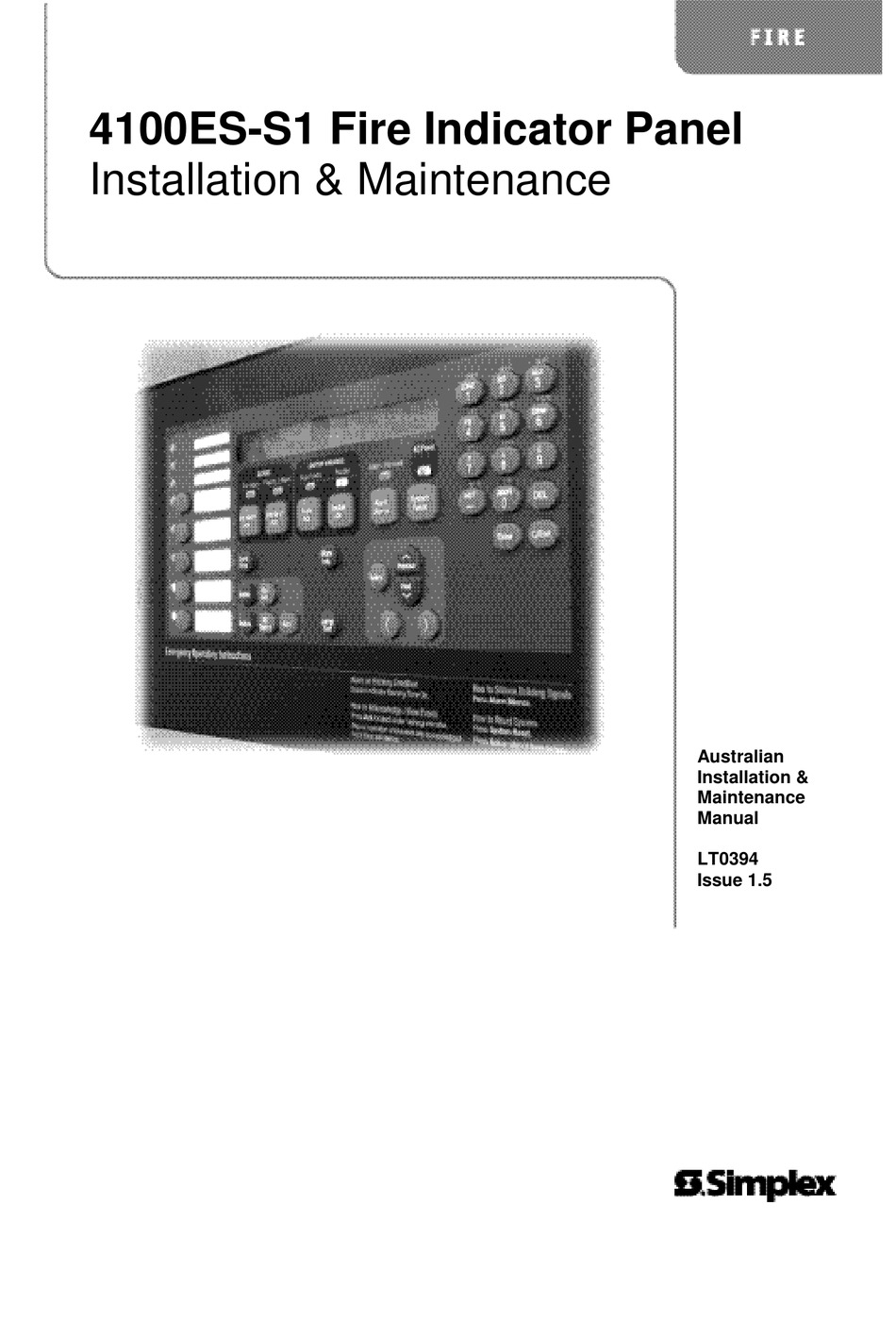

- Page 1 Fire 4100ES-S1 Fire Indicator Panel Installation & Maintenance Australian Australian Installation Installation & Manual Maintenance Manual LT0394 Issue 1.5...
-
Page 3: Copyrights And Trademarks
6,313,744 and 6,426,697. SmartSync horn/strobe control; 6,281,789. Approvals Australian Standard AS 4428.1 ActivFire Listing Number afp1682 Manufacture The 4100ES-S1 is a Fire Indicator Panel manufactured by Tyco Fire Protection Products for: Tyco Services Fire & Safety 47 Gilby Road Notting Hill... -
Page 4: Non-Disclosure Agreement
“dongle”. Because this programming facility allows the user to define in detail the operation of the 4100ES-S1 System being customised, changes may be made by the user that prevent this installation from meeting statutory requirements. -
Page 5: Model Number & Firmware Revision
This manual applies to product with the following: Model number : 4100ES-S1 Firmware revision : 1.02.04 and on Document Document Name : LT0394 4100ES-S1 Installation & Maintenance Manual Issue : V1.5 14 June 2012 Amendment Log 5 July 2006 Issue 1.0 Original based on LT0350 1.0.7... -
Page 6: Cautions, Warnings, And Regulatory Information
If damage is apparent, immediately file a claim with the carrier and notify your Simplex product supplier. SAFETY HAZARD - The 4100ES-S1 CPU Card includes a lithium battery. There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. -
Page 7: Table Of Contents
Cautions, Warnings, and Regulatory Information ............vi Table of Contents ......................vii List of Figures ....................... xiii List of Tables ........................ xiv Chapter 1 Introduction to the 4100ES-S1 Fire Alarm System ..1 Introduction ........................1 In this Chapter ......................1 Basic Configuration......................2 Overview ........................ - Page 8 Step 1. Mounting Cabinets ..................2-9 Overview ........................2-9 Step 2. Mounting Card Bays to Cabinets ..............2-9 Overview ........................2-9 Step 3. Configuring Cards ................... 2-9 Overview ........................2-9 CPU Motherboard Configuration ................2-9 CPU Daughter Card Configuration ................ 2-10 SPS Configuration ....................
- Page 9 Step 2. Mounting Media Cards to the NIC ..............3-9 Overview ........................3-9 Media Card Mounting ....................3-9 Step 3. Mounting Network Cards in the 4100ES-S1 ........... 3-9 Step 4. Wiring Network Cards ................... 3-10 Overview ........................ 3-10 Wiring Guidelines ....................3-10 Wiring Distances ....................
- Page 10 AIU/PPU Mounting ....................4-10 AIU/PPU Wiring ..................... 4-10 ASE Mounting ......................4-10 ASE Wiring......................4-10 Chapter 5 SPS Field Wiring (4100ES-S1) ..........5-1 Introduction ......................5-1 In this Chapter ......................5-1 General Field Wiring Guidelines .................. 5-2 General Guidelines ....................5-2 SPS NAC Field Wiring Guidelines ................
- Page 11 In this Chapter ......................6-1 Software Modes ......................6-2 Overview ........................6-2 Software Modes ....................... 6-2 Software Modes (continued) ..................6-3 Ethernet Service Port and Serial Service Port ............6-4 Ethernet Service Port Overview (0566-719 only) ........... 6-4 Serial Service Port Overview ................... 6-4 Chapter 7 Installation Checklist, Commissioning &...
- Page 12 In this Chapter ......................F-1 List of Approved Devices ..................... F-1 Compatible Detectors, IDNET ..................F-4 Compatible Addressable Field Devices, IDNet ............F-5 Appendix G 4100ES-S1 Specifications ..........G-1 General ........................G-1 Fuses ........................G-1 Firmware Features ....................G-1 Voltage & Current Ratings of Modules & Assemblies ..........G-2 Appendix H Power Supply &...
-
Page 13: List Of Figures
Figure 2-7. Expansion Bay 4”x 5” Card Placement ............2-13 Figure 2-8. Expansion Bay Motherboard Placement ........... 2-14 Figure 2-9. Slave Card/PDI Connection ................ 2-15 Figure 2-10. Installing the Motherboard in a 4100ES-S1 Expansion Bay ..... 2-16 Figure 2-11. LED/Switch Modules ................. 2-18 Figure 2-12. LED/Switch Controller ................2-18 Figure 2-13. - Page 14 Table 2-2 Switch/LED Format ..............2-22 Table 2-3 Switch Status ................2-22 Table 2-4 Module Installation Documents for 4100ES-S1 ......2-24 4100 NIC & Media Cards – Electrical and Environmental Table 3-1 Specifications ................3-7 Table 3-2 Wiring Distances ................. 3-11 Table 3-3 Dual Fiber Optic Cable Communications Distance Examples ...
-
Page 15: Chapter 1 Introduction To The 4100Es-S1 Fire Alarm System
Introduction to the 4100ES-S1 Fire Alarm System Introduction The 4100ES-S1 is a compact version of the 4100ES fire alarm, which is intended for use in applications requiring only one or two loops of addressable devices. This chapter is an overview of basic system concepts. -
Page 16: Basic Configuration
If a small building is being expanded, or if other buildings are being constructed in the same general area (as in a campus application), the basic 4100ES-S1 can be expanded via networking into one of the larger systems described in Chapter 3. -
Page 17: 4100Es-S1 Part Codes
4100ES-S1 Part Codes Overview This section lists the parts that are supported by the 4100ES-S1 Fire Alarm System. Assemblies, Cards & The following is a list of assemblies, cards and modules used in 4100ES-S1: & Modules These parts are included in the base 4100ES-S1: ... -
Page 18: Labels (Expansion/Spares)
4100ES-S1 Part Code, Continued LB0602 Operator I/F ISO/Test Card Labels (expansion/spares) LB0605 Fan Control Zone Insert Card 526-873 Slide In Label, LED Switch Module, 1 Sheet of 6 4100-1294 LED Module Slide In Labels, Panel Set ... -
Page 19: Glossary
Fire Indicator Panel – usually abbreviated to “panel”. General Power Outlet – mains power socket. Individual Device Network – latest generation of Simplex analogue IDNet addressable devices and the 2-wire loop that connects them. Multi-Application Peripheral Network – an earlier version of MAPNet addressable device communication superseded by IDNet. -
Page 21: Introduction
Chapter 2 Installing 4100ES-S1 Components This chapter describes how to mount the 4100ES-S1 cabinet to a wall, and how to mount Introduction system card bays into the cabinets, modules to bays, etc. Most of a 4100ES-S1 is already assembled within the factory. Steps 2 to 6 below are therefore not typically required in the field, but are included for reference. -
Page 22: Introduction To 4100Es-S1 Cabinet
Bays These items are organized into sub-assemblies called bays or card frames, each with a swing-down front door. The 4100ES-S1 has two bays: the CPU bay and one expansion bay. In the standard 4100ES-S1, the CPU bay contains the SPS and the CPU Motherboard with CPU Daughter card. -
Page 23: Cpu Motherboard
The 4100ES CPU motherboard (see Figure 2-1) holds the CPU card, which is central to the 4100ES-S1 system. It is mounted in the CPU bay, occupying two slots of space immediately beside the power supply. This board does not have a card address DIP switch (the CPU is always address 0). -
Page 24: Cpu Card
Introduction to 4100ES-S1 Cabinet, Continued The CPU card (see Figure 2-2) mounts onto the CPU motherboard. The CPU card CPU Card contains an Ethernet service port, a direct drive user interface connection, and a serial port for a service modem. -
Page 25: Cpu Card Leds
Introduction to 4100ES-S1 Cabinet, Continued CPU Card LEDs The CPU card LEDs indicate Bootloader status as shown in Table 2-1. Table 2-1. CPU Card LEDs 1 through 4 Status LED D LED C LED B LED A Condition Bootloader On (0.25s), On (0.25s),... -
Page 26: Operator Interface
6056 Wired Media Cards and/or the 4100-6057 Fibre Media Cards. System Power The 4100ES-S1 is powered by the SPS (System Power Supply), which gets its primary Supply (SPS) power from the AC mains and its secondary power from the backup batteries. -
Page 27: Figure 2-4. System Power Supply
Introduction to 4100ES-S1 Cabinet, Continued The basic 4100ES-S1 has a Fuse Distribution Board mounted on the SPS chassis and connected to the Auxiliary Power terminals. See Figure 2-4. This provides four sets of supply terminals, each individually fused at 1A, but the collective capacity is still limited to 2A from the Auxiliary Power supply. -
Page 28: The Power Distribution Interface (Pdi)
General Power Outlet (GPO). The fixed AC power wiring must be installed to this GPO by a suitably qualified electrician. IMPORTANT: AC power must be provided to the 4100ES-S1 from a dedicated branch circuit. The SPS plugs into this GPO, and can be switched off or unplugged for servicing. -
Page 29: Step 1. Mounting Cabinets
Step 3. Configuring Cards Overview The CPU, SPS, and all other modules to be mounted in the 4100ES-S1 cabinet must be configured to operate correctly in the system via their DIP switch and jumper ports. This section describes the hardware configuration for the CPU and SPS, since they will always be used in the CPU bay. -
Page 30: Cpu Daughter Card Configuration
PDI Configuration P4/P5: The PDI can be configured to draw its power from different sources via P4 and P5. For 4100ES-S1 both links should be in position 1-2. Configuring Other Refer to the appropriate installation instructions to configure other cards that are located Cards in the CPU and expansion bays. -
Page 31: Step 4. Interconnecting Modules And Bays
Each card has to be interconnected with every other card in its bay. At the same time, bays in the 4100ES-S1 also have to be connected together. Read this section to ensure that cards and bays are interconnected correctly. Refer also to drawings 1976-136 and 1976-137. -
Page 32: Connecting To Motherboards
Step 4. Interconnecting Modules and Bays, Continued Connecting to Panels with legacy motherboards in the expansion bay require some non-PDI Motherboards connections. If you need to connect a harness to a motherboard, refer to Figure 2-6 and follow these steps. Make sure to route the power and communication wiring on the left side of the bay. -
Page 33: Step 5. Installing Modules Into Expansion Bays
This section contains guidelines and instructions on installing 4”x 5” cards and traditional Overview motherboards into the 4100ES-S1 expansion bay. IMPORTANT: This section applies to aftermarket modules for expansion bays only. If you do not need to install any aftermarket modules at all, you have completed the panel installation and can apply AC power. -
Page 34: Figure 2-8. Expansion Bay Motherboard Placement
Step 5. Installing Modules into Expansion Bays, Continued Placement Motherboards can be installed on top of the PDI in expansion bays. The data and Guidelines power that would normally be bussed via the PDI are routed across the motherboards (continued) via their left and right connectors (J1 and P1). -
Page 35: Installing 4" X 5" Cards
Step 5. Installing Modules into Expansion Bays, Continued Installing 4” X 5” The power distribution interface (PDI) is mounted to the back of the expansion bay. See Cards Figure 2-9. The PDI contains slots for up to eight 4”x 5” slave cards. Since the PDI carries power and data across the entire bay, it solves most interconnection issues, especially between 4”x 5”... -
Page 36: Installing Motherboards
SCREW HOLES PLASTIC STANDOFFS #6 SCREWS SCREW HOLES LOCKWASHERS Figure 2-10. Installing the Motherboard in a 4100ES-S1 Expansion Bay Figure 2-10 shows the motherboard being fitted to slot 2. In 4100ES-S1, slots 1 and 2 can‟t be used for motherboards. 2-16... -
Page 37: Step 6. Installing Led/Switch Modules Into Expansion Bays
64 switch controls. Using the 4100-1282 Display Card for zone displays, this corresponds to 32 zones per controller. Other display cards are available for special display functions. Special configuration is required to use other display cards. Contact your Simplex dealer for guidance. Continued on next page 2-17... -
Page 38: The Led/Switch User Interface
JUMPER (P1) CONNECTORS (P2) (P3) Figure 2-12. LED/Switch Controller The standard configuration of 4100ES-S1 uses 4100-1282 cards for zone displays, with programming so that pressing any switch toggles the Isolate state of the corresponding zone. Continued on next page 2-18... -
Page 39: Configuring The Led/Switch Controller Card
Switch controller configuration consists of setting jumper P1 and setting Controller Card the card address. See Figure 2-12. In the 4100ES-S1, the first display controller is address 3 and the second has address 4. Card addressing is covered in Appendix A. -
Page 40: Figure 2-14. Controller Card Mounting
Step 6. Installing LED/Switch Modules into Expansion Bays, Continued Mounting the Refer to Figure 2-14 and the instructions below to mount the LED/switch controller card Additional LED/ assembly to the back of one of the LED/switch cards. Switch Controller Card 1. -
Page 41: Wiring Instructions
Step 6. Installing LED/Switch Modules into Expansion Bays, Continued LED/Switch Modules All types of modules are mounted to the front of a bay, and are connected to each other via a ribbon cable. Each module operates by the same rules: when a button is pressed, the controller card sends the CPU the information, and the action programmed for that button occurs. -
Page 42: 4100Es Fan Control Module
PC for local printing. LED names may also be revised. Mounting & The Fan Control module mounts to the frame of the 4100ES-S1 Expansion bay door from Connection the front, in a similar fashion to display modules. Mounting nuts and washers are provided. -
Page 43: Figure 2-16. Me0456 Fan Control Module
Figure 2-16. ME0456 Fan Control Module 2-23... -
Page 44: Installing Other Modules
Installing Other Modules Detailed installation instructions for these modules can be found in these instruction documents. A copy of the appropriate document is supplied in the kit with each module. Table 2-4. Module Installation Documents for 4100ES-S1 Part Code Description... -
Page 45: Introduction
Networking Introduction A basic 4100ES-S1 system becomes a network node when a Network Interface Card (NIC) or other compatible network card is installed and connected to another network node. How network cards connect to each other depends on the type of media cards being used. -
Page 46: Network Configuration
Multiple 4100ES-S1 panels can be connected together into a network system by using network interface cards (NICs). When a NIC is installed into a 4100ES-S1, it is used to connect to other network nodes. Nodes may consist of other 4100ES-S1 or 4100ES panels, or they may be other types of node such as Graphic Command Centre (TSW), or Visual Command Centers (VCCs). -
Page 47: Connecting Loops
Physical Bridge Link Physical Bridging (Star Configuration) Figure 3-2. Interconnected Loop Configuration System Design To be used as a network node, a 4100ES-S1 panel must contain the following: System Power Supply 4100-6014 Network Interface Card plus two Media Cards... -
Page 48: Getting Started
Getting Started Overview This chapter describes how to turn a basic 4100ES-S1 into a network node. This process consists of the following: Step 1. Mounting media cards to the network interface card (NIC) Step 2. Mounting the network cards in the panel Step 3. -
Page 49: Network Module Illustrations
Introduction to the 4100 Network Interface Card (NIC), Continued Network Module Illustrations Figure 3-3. 4100-6014 Network Interface Card NIC Card LED The 4100-6014 NIC has the following LEDs: Indications LED1 (yellow). Illuminates when The host CPU requests it to illuminate ... -
Page 50: Nic Media Cards
Introduction to the 4100 Network Interface Card (NIC), Continued NIC Media Cards There are two media cards that can be plugged into the 4100-6014 NIC: 4100-6057 Fiber-Optic Media Card (565-261) 4100-6056 Wired Media Card (565-413) Each module is shown below. FIBRE OPTIC DATA: 40-PIN NETWORK TRANSMIT (U1),... -
Page 51: Requirements And Limitations
CPU Motherboard NIC-compatible jumper settings on CPU motherboards depend on which motherboard is Jumper Settings used. Motherboard 566-227 (normally used in 4100ES-S1): P10: Port 1 settings. P11: Port 2 settings. P10/P11 position 1 – 2: Network card (NIC) attached to CPU motherboard (default). -
Page 52: Nic Card Jumper Settings
P3: Determines the NIC data transmission rate, 57.6 kbits/second or 9600 bits/second. Position 1 – 2 (the right two pins) or no pins jumpered: 57.6 kbits/second (default for 4100ES-S1). Position 2 – 3 (the left two pins): 9600 bits/second. -
Page 53: Step 2. Mounting Media Cards To The Nic
Step 3. Mounting Network Cards in the 4100ES-S1 The 4100 NIC daughter card inserts into motherboards as follows: If the 566-227 CPU Motherboard (default for 4100ES-S1) or 565-275 CPU Motherboard is used, the NIC daughter card is inserted into connector J2. ... -
Page 54: Step 4. Wiring Network Cards
Step 4. Wiring Network Cards Overview The nodes in the network now have to be wired together, so that the NIC in one host panel connects to the NIC in the next panel. Wiring Guidelines Refer to the following guidelines field wiring General ... -
Page 55: Wiring Distances
Step 4. Wiring Network Cards, Continued Wiring Distances Maximum wiring distances are shown in Table 3-2. Table 3-2. Wiring Distances Media Type Size Data Rate Max Distance 57.6 kbps 2,100m 0.2 mm unscreened 9.6 kbps 3,600m twisted pair Wired 0.8 mm 57.6 kbps 3,000m screened twisted... -
Page 56: Fibre-Optic Wiring
Step 4. Wiring Network Cards, Continued Fibre-Optic Wiring Connectors U1 (transmitter) and U2 (receiver) on the 4100-6057 Fiber-Optic Media Card are used to connect 4100-6014 NICs across parts of a network. Note: ST connectors with long strain relief boots must be used with the fibre optic cable. -
Page 57: 4190-9010 Coupler Requirements
Step 4. Wiring Network Cards, Continued 4190-9010 Coupler The 4190-9010 Coupler is used with the 4100-6057 Fibre Optic Media Board, revision Requirements “C” or higher. Two 4190-9010 Bi-Directional Couplers are required per connection, one at each node. The 4190-9010 is equipped with type ST connectors. To make type ST to type ST connections, an ST to ST coupler, by others, is required. -
Page 58: Wiring With The Wired Media Card
Step 4. Wiring Network Cards, Continued 4190-9010 Coupler The illustration below shows coupler wiring. Requirements (continued) Figure 3-7. Coupler Wiring Wiring with the Refer to the guidelines and figures in this topic to use wired media cards. Wired Media Card IMPORTANT: TB1 on the wired media card must not be used when it is connected to the 4100-6014 NIC. -
Page 59: Figure 3-8. Wired Media Interconnection Between Cpu Motherboards In Different Panels
Figure 3-8 shows how to connect between two CPU motherboards with wired media Wired Media Card network cards. The right port terminals (TB3) on one 4100ES-S1 are connected to the (continued) left port terminals (TB1) of the other 4100ES-S1. Table 3-5 details the screw terminals on the CPU motherboard. -
Page 60: Loop Wiring, Mixed Fibre And Cable
Step 4. Wiring Network Cards, Continued Loop Wiring, mixed Figure 3-9 shows an example of loop network cabling using a mixture of fibre optical Fibre and Cable cable and twisted pair. Note that the left port of any network card is connected to the right port of the next network card regardless of whether the connection is fibre or copper. -
Page 61: Chapter 4 The System Power Supply & Alarm Relay Card
Chapter 4 The System Power Supply & Alarm Relay Card Introduction The system power supply (SPS) is described in Chapter 2. A picture of it is shown in Figure 2-4. This chapter has the current and voltage ratings of the SPS and describes how it is installed and configured by the factory. -
Page 62: Sps Specifications
3.3 A (Default; for 18-110 Ah battery) Notes: AC power must be provided to the 4100ES-S1 from a dedicated AC branch circuit. The AC input is supervised wiring. The AC branch is terminated in the cabinet in the general power output (GPO) mounted in the expansion bay. -
Page 63: Table 4-2 Sps Current Specifications
SPS Specifications, Continued The bulk supply (rated at 9A max) which feeds 24V Sig, 24V Card, 24V Aux also supplies the SPS Card including the on board IDNet, and the battery charger. The charger is disabled during alarms so as to make the 9A available on the other busses. (See Table 4-2 for the SPS current). -
Page 64: Sps Adjustments
SPS Adjustments Adjusting Voltages There are two 4mm (i.e. small) potentiometers on the 4100-9848AU SPS, situated below the centre of the PCB. These are adjusted in the factory and typically will not need adjusting in the field. If it is necessary to adjust them, turning the potentiometer clockwise increases the corresponding voltage. -
Page 65: Sps Led Indications
SPS LED Indications Status LEDs The SPS has the following LEDs: LED1 (yellow). Illuminates when NAC 1 is ON or in Fault. LED2 (yellow). Illuminates when NAC 2 is ON or in Fault. LED3 (yellow). Illuminates when NAC 3 is ON or in Fault. LED4 (yellow). -
Page 66: Troubleshooting An Sps
This message does not appear if there are no configured devices on the IDNet channel. “No Answer/ Occurs when the 4100ES-S1 is put into a diagnostic mode and finds a device not Bad Answer” responding, or responding unreliably. -
Page 67: The Alarm Relay Card
The Alarm Relay Card mounts on, and is driven by, the SPS. It has 3 relays, each providing one set of voltage-free contacts. It is fitted to the basic 4100ES-S1 as standard. The relays are able to be configured under custom control, but the default operation is for system status, i.e. -
Page 68: Configuration
The Alarm Relay Card, Continued Configuration The relays have one set of voltage-free contacts (see note below) connected to one pair of terminals via a header. The two terminals are configured for normally closed or normally open by positioning a jumper on the relay card. Refer to Table 4-3. Table 4-3. -
Page 69: Brigade Interfaces
1 x FP0740 FAS interface module with red, yellow, blue and white wires 1 x pair of red and black wires for connecting the ASE to the 4100ES-S1 DC supply 4 x M6 screws, washers and cage nuts for mounting the door... -
Page 70: General Wiring
It is recommended that the brigade device does not share its fuse protection with any other equipment, for reliability. The wiring between the brigade device and the 4100ES-S1 should be routed neatly as shown in the following drawings, and secured in place with the cable ties and adhesive tie holders supplied with the kits. -
Page 71: Introduction
Refer to the page number listed in this table for information on a specific topic. Topic See Page # General Field Wiring Guidelines SPS NAC Field Wiring Guidelines Power Supply Wiring Distances Using T-GEN 50 with 4100ES-S1 SPS Auxiliary Power Wiring 5-16 SPS Relay Wiring 5-18 SPS IDNet Wiring... -
Page 72: General Field Wiring Guidelines
General Field Wiring Guidelines General Guidelines All field wires must be 0.75 mm or greater cross section and comply with AS 1670.1 and the wiring code. Conductors must test free of all earth leakage. All wiring must be done using copper conductors only, unless noted otherwise. ... -
Page 73: Sps Nac Field Wiring Guidelines
Terminal designations “+” and “-” are for the Alarm state (ON), not the supervision state. Allocations The configuration templates supplied for use with the 4100ES-S1 all have these default assignments of the NAC outputs, with corresponding Custom Control equations. ... -
Page 74: Class A (Loop) Nac Wiring
SPS NAC Field Wiring Guidelines, Continued Some or all of these output functions could be implemented using addressable devices or other relay modules instead, in which case the corresponding NAC output could be reassigned to other uses. The new configuration would require full testing of these functions to ensure compliance with AS 4428.1. -
Page 75: Figure 5-3. Class B (String) Wiring
SPS NAC Field Wiring Guidelines, Continued Class B (string) NAC To connect the SPS to appliances using Class B wiring, read the following instructions Wiring and refer to the figure below. Route wire from the B+, B- outputs on TB2 of the SPS to the appropriate inputs on a peripheral notification appliance. -
Page 76: Power Supply Wiring Distances
Power Supply Wiring Distances Overview Before wiring from any type of power supply to notification appliances, check Tables 5-1 and 5-2 for wiring distances. Class A NAC Table 5-1 lists the maximum distances from the NAC terminal block to the last appliance Wiring Table in a Class A (loop) configuration, depending on wire gauge and current. -
Page 77: Class B Nac Wiring Table
Power Supply Wiring Distances, Continued Class B NAC Table 5-2 lists the maximum distances from the NAC terminal block to the last appliance Wiring Table in a Class B (string) configuration, depending on wire gauge and current. Use Table 5-2 to calculate wire distances for your application if you are using Class B wiring. -
Page 78: Overview
GEN 50 tone generator, which is capable of driving up to 50W of load on a 100V speaker line. The recommended version of the T-GEN 50 for use in 4100ES-S1 is available as part 4100-0766K (see PID information in Chapter 1). This consists of a T-GEN 50 mounted on a metal bracket which is mounted into the expansion bay in the same way as a legacy 4100 motherboard. -
Page 79: Figure 5-4. Taking Ancillary Power From Nac1
Using T-GEN 50 with 4100ES-S1, Continued SHLD B+ B-A+ A- B+ B-A+ A- B+ B-A+ A- NAC1 NAC2 NAC3 IDnet 4100U SPS (4100-9848AU) T-GEN 50 Figure 5-4. Taking Ancillary Power from NAC1 To make this work, NAC1 must be programmed as AUXPWR to make it turn on continuously without supervision. -
Page 80: Controlling A T-Gen 50 With A Relay Module
Using T-GEN 50 with 4100ES-S1, Continued Controlling a T-GEN 50 with a Relay Module 4100-3003 Relay Module DEF- 10 k ohm A/I/E- resistor ALM- To AUX POWER +24V +24V Auto 150 (1.0 mm or heavier EARTH LINE - Mains rated cable for... -
Page 81: T-Gen 50 Setting For Relay Operation
Using T-GEN 50 with 4100ES-S1, Continued T-GEN 50 Setting for Relay Operation Table 5-3 shows the switch and link settings for T-GEN 50 software version 1.7 when controlled from a relay output. Table 5-3. T-GEN 50 Settings Alert to Evacuate... -
Page 82: Controlling A T-Gen 50 From A Nac Output
Using T-GEN 50 with 4100ES-S1, Continued Controlling a A T-GEN 50 can be controlled and supervised using a NAC output. The NAC is used to T-GEN 50 from a NAC control the ALM- input to the T-GEN 50 and to supervise its Fault relay output. The Output T-GEN 50 is configured to supervise the 100V wiring to the loudspeakers. -
Page 83: T-Gen 50 Settings For Nac Operation
Using T-GEN 50 with 4100ES-S1, Continued T-GEN 50 Settings for Table 5-4 shows the switch and link settings for T-GEN 50 software version 1.7 when NAC Operation controlling from a NAC output. Table 5-4. T-GEN 50 Settings Alert to Evacuate... -
Page 84: Fitting An Evacuation Control
The control can be fitted to an FP0935 or FP0937 4U Brigade Interface door as used in 4100ES-S1, or fitted to a 4100-1279 blank display module (requires a 9.5mm hole to be drilled in the display module – the ME0460 includes an installation guide with drilling details). -
Page 85: Speaker Wiring
Using T-GEN 50 with 4100ES-S1, Continued Refer to the T-GEN 50 Installation and Operating Guide (LT0186) for details about the 100V Speaker wiring of speakers and end-of-line resistor requirements for the T-GEN 50. Wiring ME0460 Evac ME0490 Control fitted to... -
Page 86: Sps Auxiliary Power Wiring
SPS Auxiliary Power Wiring Overview The panel, battery-backed, unregulated dc bulk power is available from the SPS via the NAC and the 24V Aux power terminals. NACs can be configured as auxiliary power point type in the 4100ES Programmer. All of these are power-limited. Guidelines Review the following guidelines before using the SPS for auxiliary power. -
Page 87: Wiring
SPS Auxiliary Power Wiring, Continued Wiring The SPS can connect to auxiliary power appliances via the dedicated auxiliary power tap (TB3). See Figure 5-9. If more power is needed, any of the three NAC outputs can be used for auxiliary power. Ferrite bead required for EMC compliance. -
Page 88: Sps Relay Wiring
The SPS has one programmable relay, Aux 1, with one set of voltage-free contacts (see below). The Alarm Relay 4100-6033 is fitted as standard to 4100ES-S1. This has 3 relays, each with one set of normally open (or normally closed) contacts available on a screw terminal block (see Chapter 4). -
Page 89: Sps Idnet Wiring
SPS IDNet Wiring Overview This section describes how the IDNet Channel on the SPS connects to addressable devices/detectors. The guidelines governing IDNet wiring guidelines are covered in Chapter 6, IDNet Installation. IDNet Wiring Up to 250 IDNet initiating devices are supported on the SPS IDNet channel. The SPS supports both Class A (loop) and Class B (string) wiring. -
Page 90: Notes
SPS IDNet Wiring Continued 1. The current allowance per device on the loop is 0.5mA with the LED off, 2mA with Notes the LED on. A maximum of 20 LEDs will be turned on at any time by the IDNet Card, e.g. -
Page 91: Class A (Loop) Wiring
SPS IDNet Wiring Continued To connect addressable devices/detectors to the SPS IDNet using Class A wiring, read the Class A (loop) following instructions. Wiring Ferrite beads are required on the SPS IDNet cables (refer Figure 5.1). Route wire from the B+, B- outputs on TB1 of the SPS to the appropriate inputs on a peripheral IDNet device. -
Page 92: Class B (String) Wiring
SPS IDNet Wiring Continued Class B (string) To connect addressable devices/detectors to the SPS IDNet using Class B wiring, read the Wiring following instructions. Under AS 1670.1 Class B wiring is allowed only for a maximum of 40 addressable devices. A ferrite bead is required on the SPS IDNet cable. -
Page 93: Chapter 6 Pc Software Connections
Chapter 6 PC Software Connections Introduction The service port on the door with the Operator Interface enables the 4100ES-S1 to connect to a PC running important utilities, such as diagnostics, programming, CPU firmware downloading, and channel monitoring. In this Chapter Refer to the page number listed in this table for information on a specific topic. -
Page 94: Overview
Software Modes Overview The 4100ES-S1 can connect to a PC running important utilities, such as diagnostics, programming, CPU firmware downloading, and channel monitoring. It connects to the PC running all of these utilities via the service port on the CPU card. -
Page 95: Figure 6-3. Bootloader Interface
Master Bootloader Interface Mode. This mode is used to download the Master CPU (continued) Exec firmware and the CFG.TXT file to the CPU via the serial port or through the Ethernet port. download cable Laptop/PC running 4100ES-S1 Panel Programming file transfer running Bootloader Figure 6-3. Bootloader Interface... -
Page 96: Ethernet Service Port And Serial Service Port
Ethernet Service Port and Serial Service Port Ethernet Service The Ethernet service port J1 on the CPU card (0566-719) is used to connect the panel to Port Overview a local PC. See Figure 6-4 for the port location. (0566-719 only) Figure 6-4. -
Page 97: Chapter 7 Installation Checklist, Commissioning & Maintenance
Installation Checklist, Commissioning & Maintenance Introduction The 4100ES-S1 is tested in the factory and is loaded with a basic configuration. When the panel arrives on site the installer must unpack and check the panel, mount the cabinet, any additional cards, and check the configuration before applying power. -
Page 98: Alignment & Adjustment
Alignment & Adjustment Overview All the 4100ES-S1 cards and modules in the base panel are tested and aligned in the factory before being supplied to the customer. The only field adjustment that may be necessary is to set the battery charger voltage. (Note this has been set and should not need re-adjusting). -
Page 99: Power Up & Placing Into Operation
A full commissioning test must be carried out as per the requirements of AS 1670.1. Refer to the appendix in this manual for detail on checking wiring, and earth fault detection. Refer to the 4100ES-S1 Operator Manual LT0395 for detail of the walk test that may be used for verifying correct detector operation. -
Page 100: Maintenance
Maintenance The 4100ES-S1 system must be kept free from faults and tested on a weekly, monthly and annual basis to verify that it is operating correctly. The tests required by part 8 of the standard AS 1851 Maintenance of Fire Protection Equipment are detailed in the 4100ES- S1 Operator Manual, LT0395. -
Page 101: Appendix A Card Address Dip Switch
Appendix A Card Address DIP Switch Overview Addressable cards include a bank of eight DIP switches. From left to right (see Figure A- 1, below) these switches are designated as SWx-1 through SWx-8. The function of these switches is as follows: ... -
Page 102: Table A-1 Card Addresses
Overview, (continued) Table A-1. Card Addresses Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8... -
Page 103: Appendix B Programming Requirements
This appendix briefly summarises the programming that is required to comply with AS 4428.1. It does not provide equations or detail of programming. Refer to LT0400 4100ES-S1 Programming Guide for descriptions of the AS 4428.1 programming. The separate 4100ES Programming Manual tells how to use the PC-based 4100ES Programmer. -
Page 105: Notes
Note 2: IDNet addressable loops can give a good reading even when certain wiring faults are present, due to the effect of channel isolators in the loop. The 4100ES-S1 can perform live testing on an IDNet loop for earth faults. See Appendix D for details about how to do this. -
Page 106: Meter Readings
Appendix C: Checking System Wiring, Continued Meter Readings Table C-1 lists the correct meter readings for different circuit types. Remember, these readings must be made with the field wiring disconnected from the 4100ES terminals. Table C-1. Acceptable Zone and Signal Circuit Meter Readings Circuit Type Meter Reading Class B (spur) Detector Circuit (each circuit) -
Page 107: Appendix D Earth Fault Detection
Because of this, earth faults must be located and repaired. Earth Fault Search is conducted by the 4100ES-S1. The diagnostic may be activated using either the front panel interface or the Computer Port Protocol via a service port. -
Page 108: General Guidelines
Earth Fault Search detects only one fault at a time. Multiple faults require fixing the first fault and then repeating the search. The 4100ES-S1 suspends normal operation for the duration of the Earth Fault Search. Alarm processing will be stopped. ... -
Page 109: Earth Fault Searching From The Front Panel
Earth Fault Searching from the Front Panel Overview This section describes how to conduct an Earth Fault Search, from selecting the appropriate access code to correcting the fault. Access Level The panel must be at the appropriate access level (1, 2, 3, or 4) in order to run diagnostics. Selection To get to the correct access level: Press the Menu button. -
Page 110: Search Option A: Select Location
CARD 1, SYSTEM POWER SUPPLY Press <ENTER> to start search NOTE: The 4100ES-S1 suspends normal operation for the duration of the search. Press the Enter button to start the search. As the search progresses, watch the display for an indication of how much of the search has been completed. -
Page 111: Search Option B: Select Channel
A sample screen is shown below. IDNET CHANNEL M12 Press <ENTER> to select for search NOTE: The 4100ES-S1 suspends normal operation for the duration of the search. Press the Enter button to start the search. -
Page 112: Search Results
RUI Channel (Master Controller Card). (Not used in 4100ES-S1). Channel 1 to 3 (TrueAlert Power Supply). (Not used in 4100ES-S1). Point Faults A point fault indicates an earth fault at a specific addressable point. The example below is... -
Page 113: Fault Not Found
Search Results, Continued IDNet isolator fault. The message below shows a fault detected after the IDNet isolator Point Faults, was turned on: Continued CARD 2, IDNET CARD (250 POINTS) M1-3, IDNET ISOLATOR EARTH FAULT Fault Not Found If the message in the lower right corner of the LCD reads FAULT NOT FOUND (for a Location Earth Fault Search) or FAULT CLEAR FAIL (for an IDNet Channel Earth Fault Search), it means the search could not locate the fault, but it acknowledges that a fault exists. -
Page 115: Appendix E Related Documentation
4100/4120-Series Class A / Class B Zone Modules Installation Instructions 579-221 4100/4120-Series Dual RS-232/2120 Modules Installation Instructions 574-050 4100/4120-Series VESDA Interface Cards Installation Instructions The following is a listing of US documentation that may be relevant to 4100ES-S1. Book Part Title Number 4100/4120-Series MAPNET Isolator Modules... - Page 116 Appendix E: Related Documentation, Continued Book Part Number Title (cont.) (cont.) 4100/4120-Series NIC and Media Modules 579-182 Installation Instructions 4100/4120-Series Physical Bridges and 4100/4120-Series Media Modules 579-184 Installation Instructions 4100U SPS/RPS 579-246 Installation Instructions 4100-0632 Terminal Block Utility Module 579-248 Installation Instructions...
-
Page 117: Appendix F Compatible Actuating Devices
Compatible Actuating Devices Introduction This appendix describes the following: Devices that have been approved as compatible devices for use with the 4100ES-S1. Devices approved for use with the IDNet and shows the number allowed per loop. In this Chapter Refer to the page number listed in this table for information on a specific topic. - Page 118 Continued List of Approved Devices, System Sensor Range - Conventional Detectors Detector Type 4100-5001/2/4 2190-9156 4090-9101 8 Zone Module Monitor ZAM Monitor ZAM 885WP-B Weatherproof Heat Detector Type B * Remote indicator output cannot be wired in common with Tyco 614 series or the Minerva M614 series (and most other Tyco/Olsen) detectors.
- Page 119 Ionisation smoke detector PFS-I MK II Ionisation smoke detector Cerberus Range - Conventional Detectors D01191A Beam DL01191A Beam Simplex MAPNET 2 Range – Addressable Field Devices 2190-9156 Mapnet 2 Monitor ZAM 2190-9162 Mapnet 2 Signal ZAM 2190-9164 Mapnet 2 Control ZAM 2190-9169...
-
Page 120: Compatible Detectors, Idnet
Compatible Detectors, IDNET The following lists the detectors approved for use with IDNet and shows current rating and numbers allowed per loop. Device Type Operating Maximum Maximum Current mA Number Allowed Number Per Loop Allowed Per Line 4098-9714E Analogue Photoelectric (2 with LED Smoke Detector 4098-9717E... -
Page 121: Compatible Addressable Field Devices, Idnet
Compatible Addressable Field Devices, IDNet The following lists the addressable devices approved for use with IDNet and shows current rating and numbers allowed per loop. Device Type Operating Maximum Maximum Current mA Addressable Addressable Point On Points on Analogue Loop Analogue Line 4090-9116 IDNet Comms Isolator... -
Page 123: Appendix G 4100Es-S1 Specifications
Appendix G 4100ES-S1 Specifications General System Capacity 500 points of addressable devices, plus 500 points of annunciation. Expansion up to 4 x 4100 legacy cards up to 4 x 4” x 5” PDI cards Cabinet Size 1050H x 550W x 280D (mm) Cabinet Material 1.2mm Zintec... -
Page 124: Voltage & Current Ratings Of Modules & Assemblies
Voltage & Current Ratings of Modules & Assemblies The DC input voltage range of the following modules is 18-33Vdc. The current listed is nominal for 24Vdc, and may be used for battery capacity calculations. Module Name Quiescent Alarm Master Controller Assembly 373mA 470mA (includes SPS, CPU, CPU Motherboard... -
Page 125: Appendix H Power Supply & Battery Capacity Calculations
The factor of 1.2 in Battery Capacity equation allows for battery efficiency reduction. Take the calculated value of Battery Capacity and choose the next largest standard size of battery. The 4100ES-S1 cabinet can accommodate 2 x 40Ahr batteries. The following batteries are compatible with the 4100ES-S1. ... -
Page 127: Appendix I List Of Drawings
The following drawings are included since they are referred to in this manual or are relevant. 1922-96 WA AIU and Cube ASE to Fire Panel Wiring Details 1976-176 4100ES-S1 Presentation Drawing 1976-174 4100ES-S1 Brigade Door Assembly, Sheet 1 ASE, Sheet 3 PPU/AIU/Cube ASE 1976-181 4100ES Australian Wiring Diagrams (collected in LT0432)
Need help?
Do you have a question about the 4100ES-S1 and is the answer not in the manual?
Questions and answers
