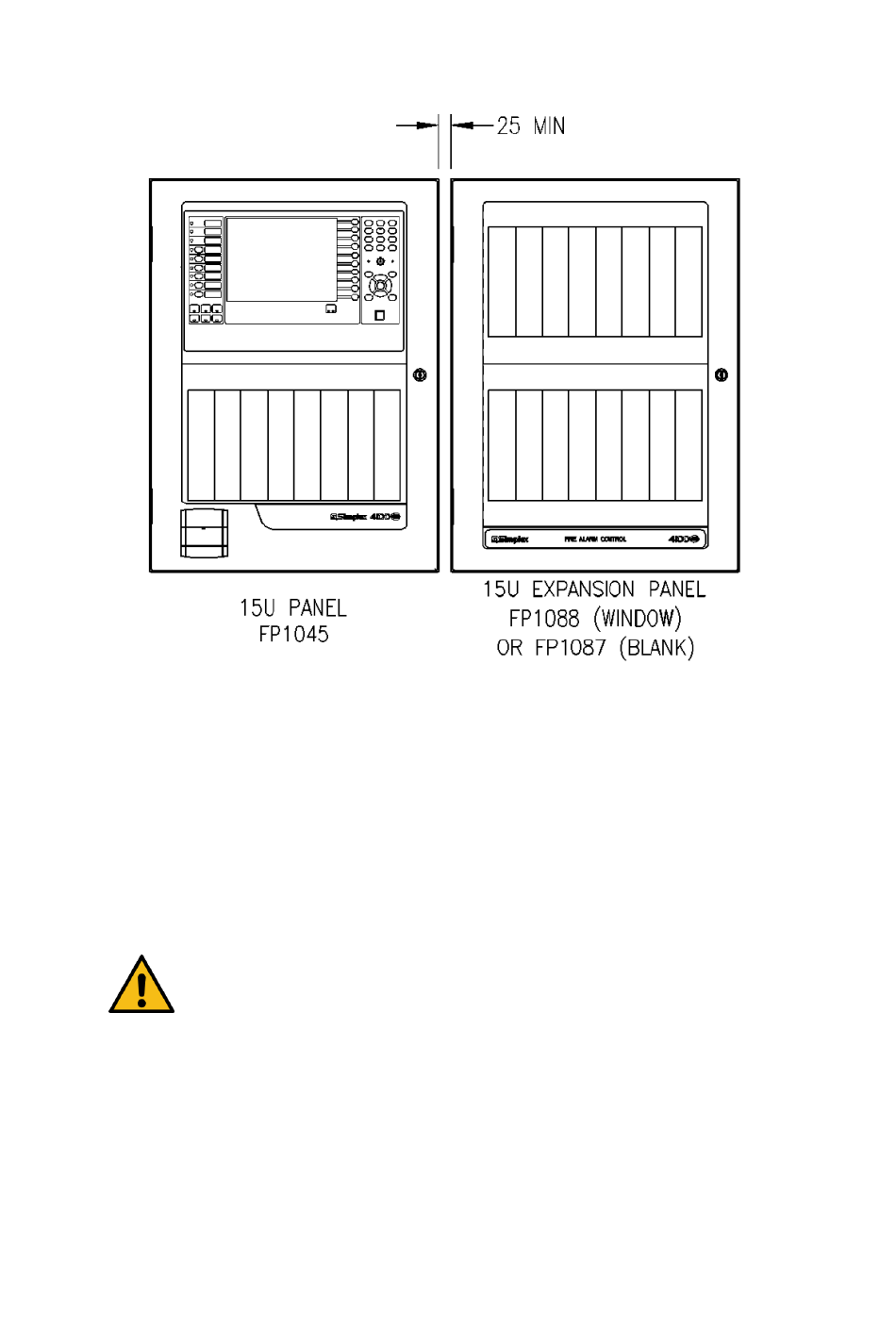

Figure 18. Mounting cabinets side by side
Connecting to the main panel
Two power interconnection looms, LM0317 and LM0592, are supplied with each expansion cabinet.
LM0317 transfers 24V signal power to the expansion cabinets, and LM0592 transfers 24V card power and
communication to the expansion cabinet. See Figure 19 for information about wiring the looms between two
cabinets.
Warning:
LM0317 and LM0592 are not interchangeable.
33
