4100/4120 INSTALLATION MANUAL

2. Install the back box.

• Use the 4100+/4120/UT Back Box Installation Instructions (Pub. No. FA4-21-203).

3. Install and tag all system wiring.

• See the SYSTEM POINT SUMMARY Report (Figure 7) and the appropriate page in the 4100 Field Wiring
Diagram (841-731).
4.

Install the peripheral devices and E.O.L. resistors.

• See the Point Type column in the SYSTEM POINT SUMMARY Report for device type.
NOTES:
A. The 748-200 System Hardware envelope contains the required resistors.
• 3.3K (monitor zone) resistors are colour coded orange, orange, red (and have a gold tolerance band);
10K (Notification appliance [signal] circuit) resistors are colour coded brown, black, orange (and also
have a gold tolerance band).
• Resistors other than those described above will be used by the Simplex Technical Representative
(T.R.) during installation checkout.
B. Wire peripherals in accordance with the appropriate 4100 Field Wiring Diagram (841-731).
• Wire a MAPNET II
(841-804). Then, SET THE DEVICE'S ADDRESS SWITCHES (Figure 2).
C. A MAPNET II
Examples:
D. Use a small screwdriver or ball point pen to set device address switches.
E. After setting the device address, mark the device's address label (Figure 3) to agree with the address
switches.

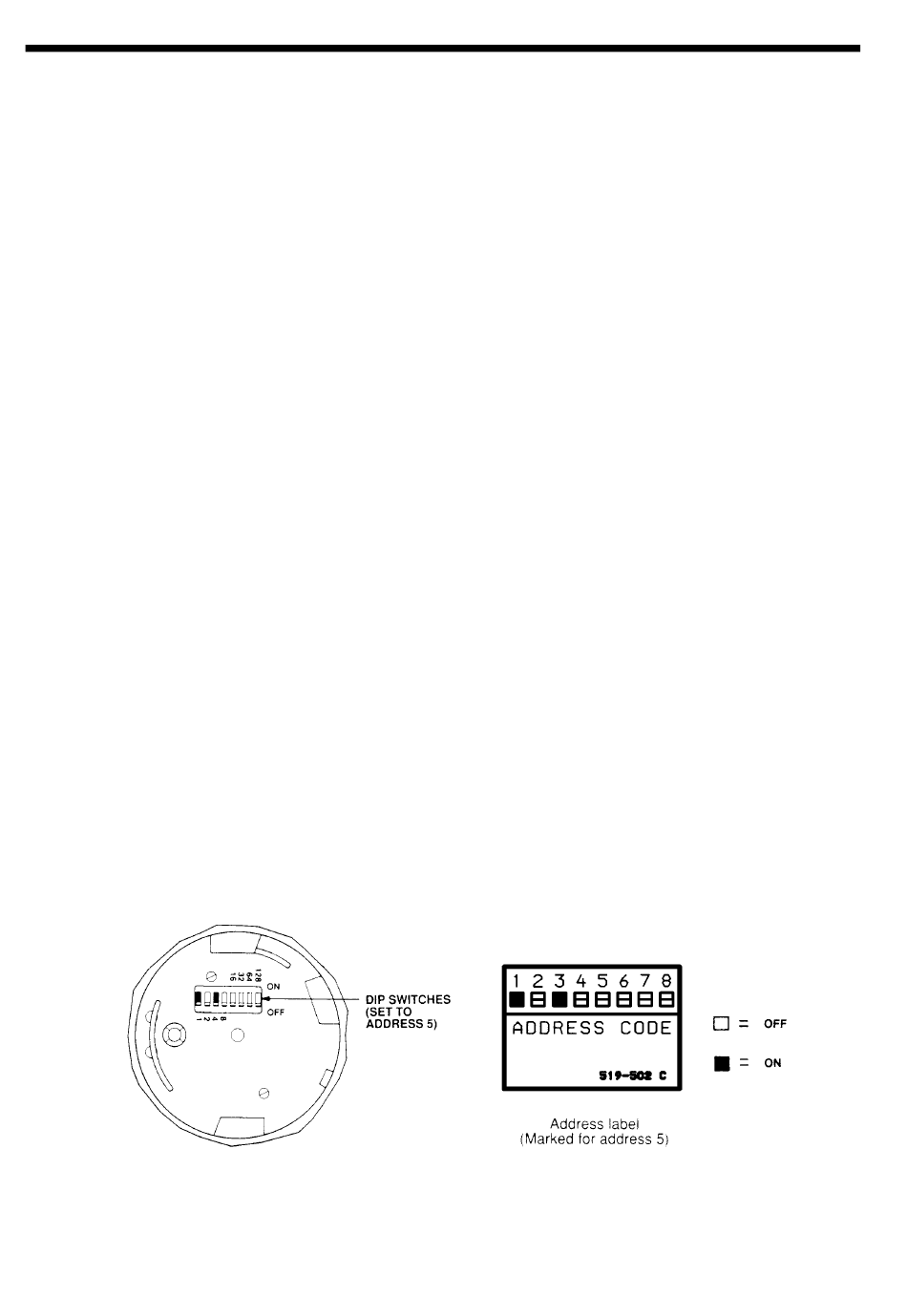

Location of DIP Switches
on Typical Device
Document No: 4100-M002
®
device in accordance with the appropriate MAPNET II
®
device's address is represented by the final digit(s) in the zone's name.
The device that connects to a zone named M1-2 must have its switches set to address 2;
the device that connects to a zone named M1-117 must have its switches set to address
117.
• See Table 1 for a complete listing of MAPNET II
Figure 2
®
addresses.
Figure 3

Device Address Label

3
®
Field Wiring Diagram
Issue 1.0
