ME0470 auxiliary supply
Mount the ME0470 in a bay using by using the module support posts, screws and star washers supplied. The
ME0470 requires two legacy card positions. A Fused Distribution board, with 3A 20x5 fuses, supplies fused
power from the ME0470. The fuses are not monitored directly. It may be necessary to monitor these fuses
using the connected equipment, or a normally energized relay.

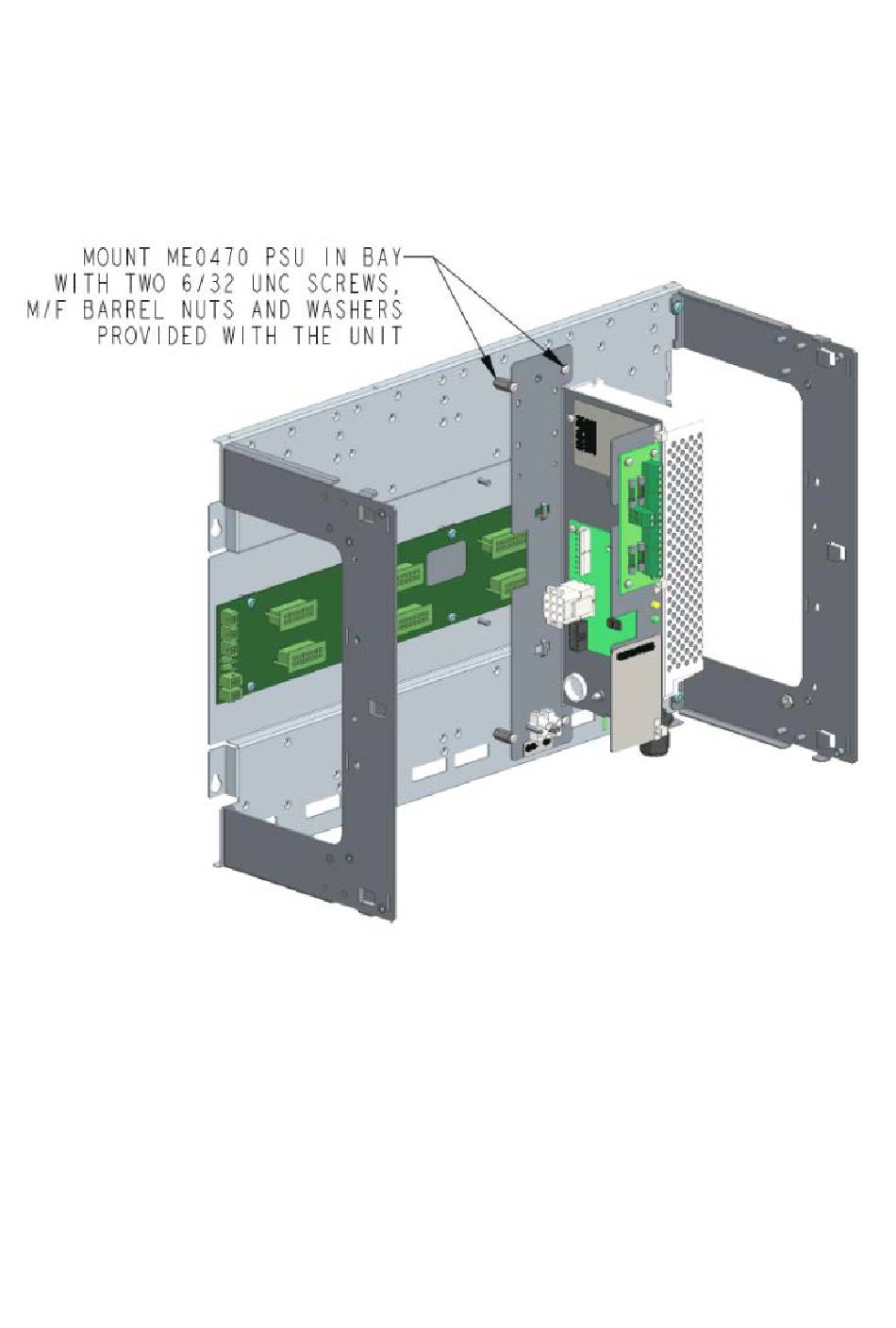

Figure 41. Mounting the ME0470 PSU in a bay
For information about configuring the ME0470 and for connection to the 4100ESi, see LT0432 4100ESi
Field Wiring Manual drawings 702 and 705.
