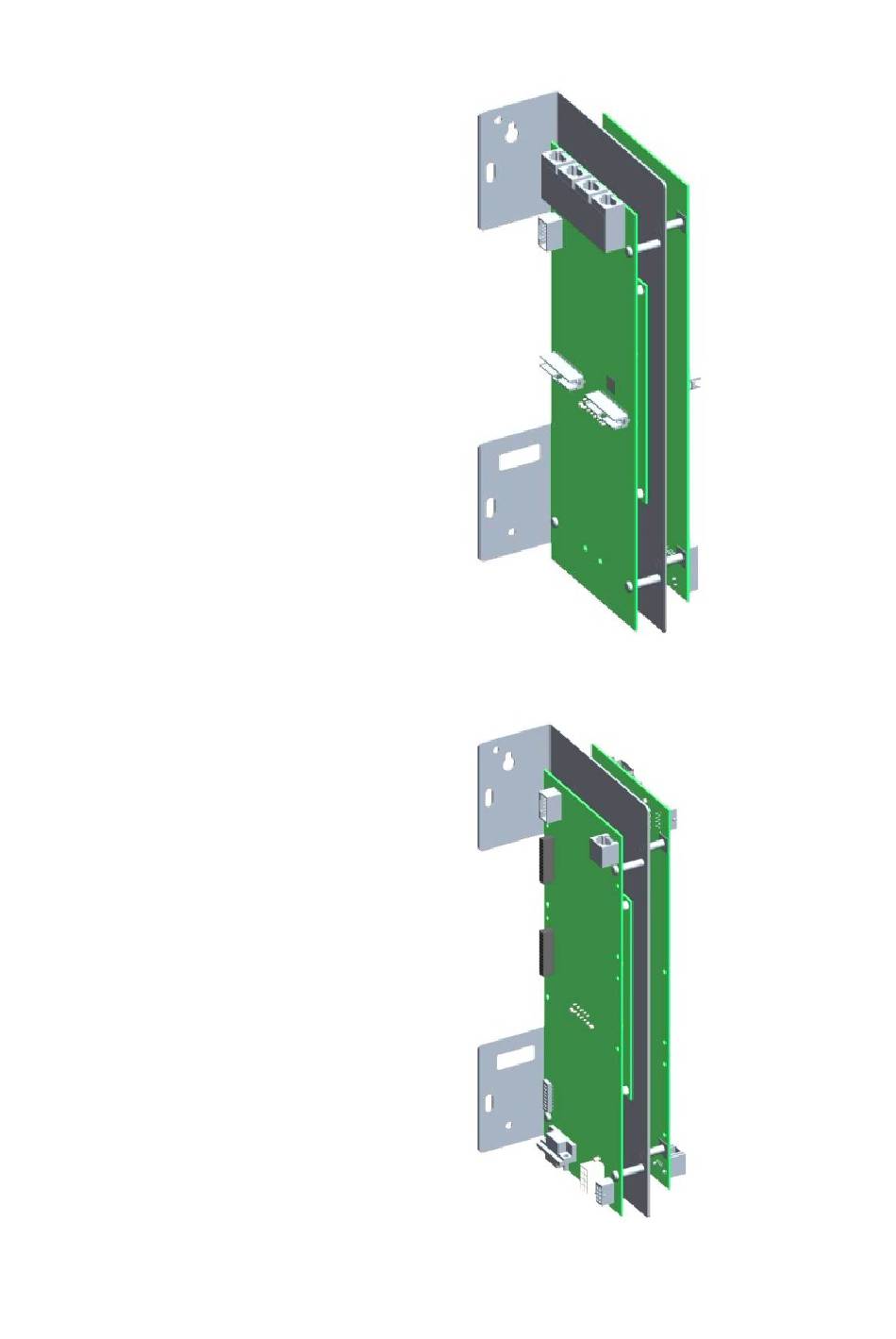

Figure 29. Mounting two 4100-6047 BNIC Cards
The card on the left card has the Ethernet
connectors at the top and the card on the right
has the Ethernet connectors at the bottom.
Figure 30. Mounting two 4100-6079 SafeLINC Cards
The card on the left has the Ethernet connector at
the top and the card on the right has the Ethernet
connector at the bottom.
