Adding a T-GEN 60 or T-GEN 120

Mounting in an Expansion Bay

T-GEN 2 equipment can be mounted in an expansion bay.
An expansion bay can contain up to:
•
Two FP1119 T-GEN 2 mounting brackets with a T-GEN 60 or T-GEN 120 on each.
•
One FP1120 100V Switching/Splitter mounting bracket with two 100V Switching Modules or 100V
Splitter Modules.
•
One APS Power Supply to provide power.
The FP1119 T-GEN 2 mounting brackets are somewhat limited in their possible positions in the bay. The
FP1120 bracket for the 100V Switching modules mounts on legacy card fastening points. If used in a bay with
other legacy cards, it occupies two card positions.

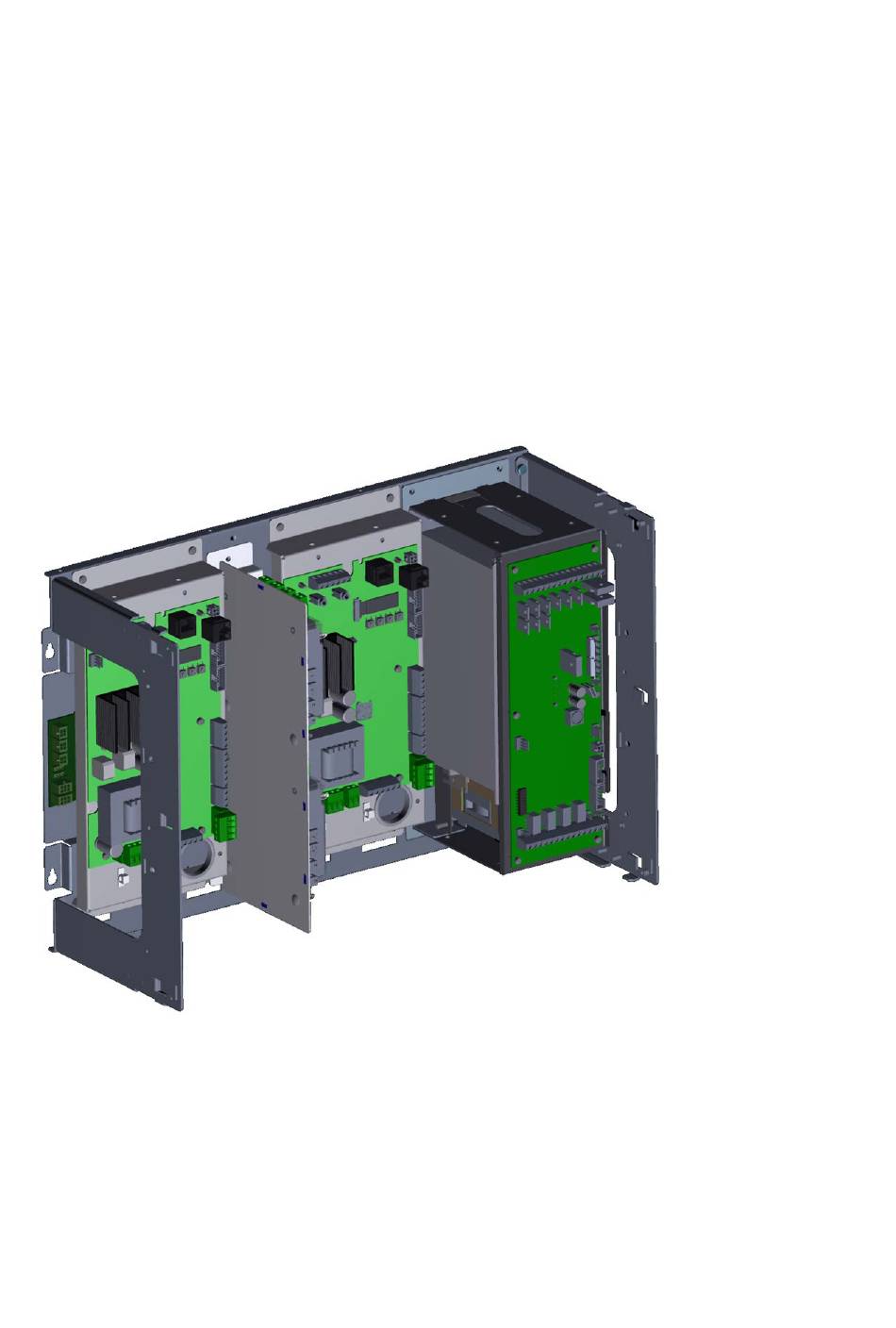

Figure 42 Fully equipped expansion bay with 2 x T-Gen 60, 2 x 100V switching modules and APS

Wiring in the Bay

The APS provides Signal Power directly to the PDI backplane, which is used to power each T-GEN via the plug-in
loom provided with the FP1119 mounting kit.
The master T-GEN is controlled from a NAC output on the adjacent APS or on another APS in the cabinet, as
required. The NAC output must be added to the zone list for Alarm Devices in the 4100ESi configuration, using
the ES Programmer software tool. The necessary wiring is shown in Figure 43 and Figure 44:
